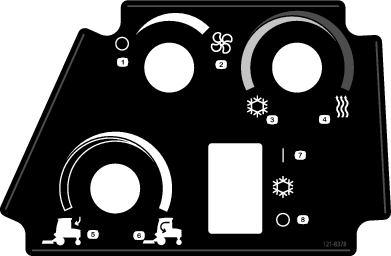

Heated (Only) Cab Kit

1. Clear a location in your workspace under the hoist system.

   Note: Verify that your hoist system is capable of safely supporting the cab unit over the machine during the installation.

2. Move the machine to the workspace, lower the mower decks, shut off the engine, set the parking brake, and remove the key from the ignition switch.

3. Allow the engine coolant to cool and then drain the coolant from the machine; refer to the Service Manual.

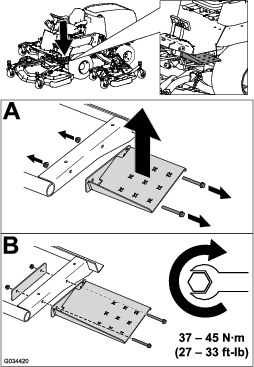

Remove the ROPS from the machine and store it in an appropriate area.

Important: Have an assistant help you remove the ROPS from the machine.

Figure 1

Remove the adhesive backer from the foam seals and apply them to the cab as shown in Figure 3.

Note: Apply all foam seals in this procedure 13 mm (1/2 inch) away from the inside edge of the cab.

Figure 3

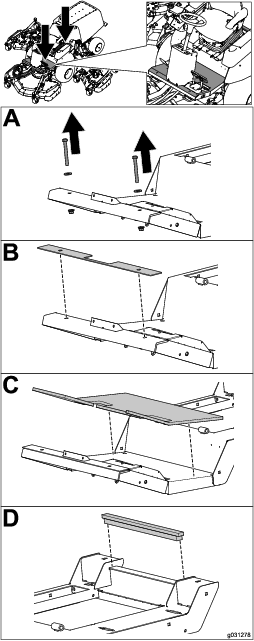

Install the foam parts to the operator platform (Figure 6).

Figure 6

Use the 4 lift points located on each corner of the cab unit (Figure 7).

Important: Do not allow the lift system to contact the plastic headliner.

Figure 7

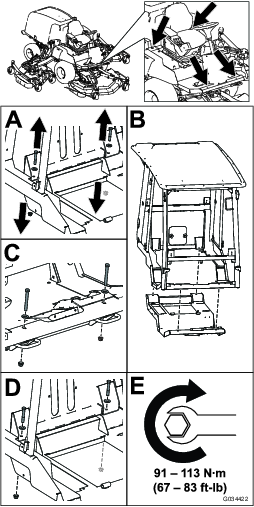

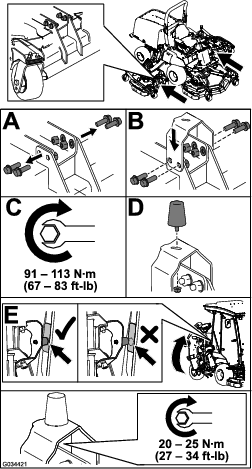

Use the existing hardware to secure the cab to the machine (Figure 8).

Figure 8

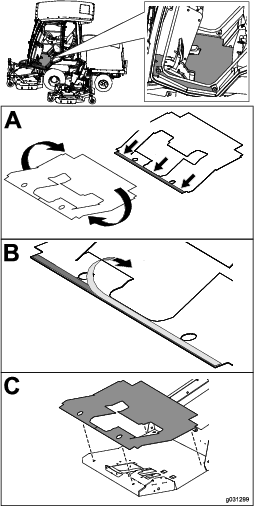

Install the floor tread onto the operator platform (Figure 9).

Note: Ensure that you apply the adhesive strip to a clean surface with enough pressure to adhere the strip to the platform.

Figure 9

Figure 10

Drain the coolant from the engine; refer to the Operator’s manual.

Important: Allow the engine to cool and drain the coolant before performing the following procedure.

Figure 11

Note: Store the engine plugs with the ROPS assembly to use when you remove the cab.

Route the heater hoses underneath the machine and into the engine compartment (Figure 12).

Figure 12

Important: Do not secure the hoses to hot or moving parts.

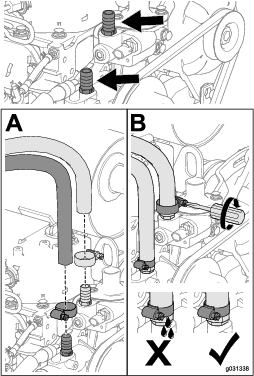

Connect the heater hoses to the hose fittings.

Note: Connect the heater hose containing the red plug to the supply port and the heater hose containing the green plug to the return port on the engine as shown in Figure 13.

Figure 13

Note: Store the hose plugs with the ROPS assembly to use when you remove the cab.

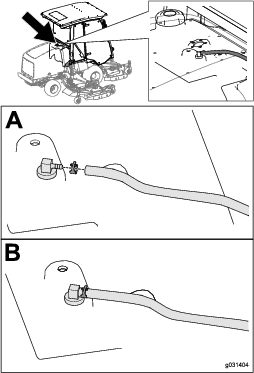

Use the existing hardware to connect the vent tube from the cab (Figure 14).

Figure 14

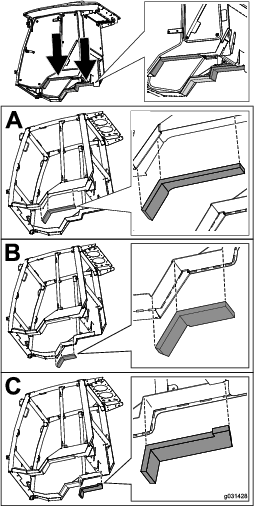

Install the side seal to the cab (Figure 15).

Figure 15

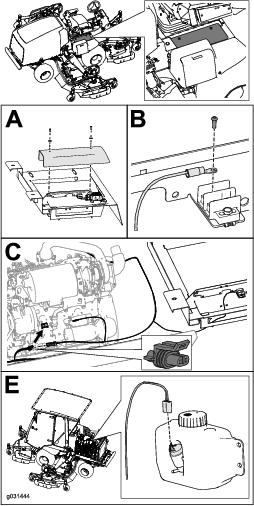

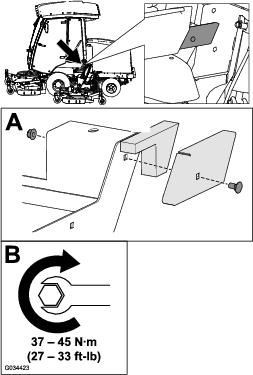

Install washer-fluid tank to the machine (Figure 16).

Figure 16

Note: Use the existing hardware when you secure the tank support to the machine.

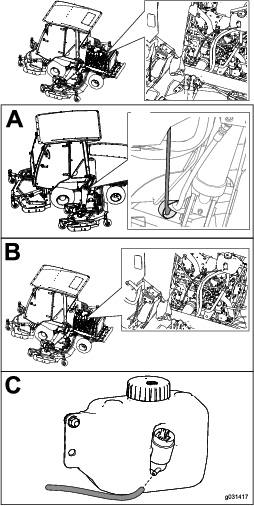

Route the washer-fluid hose through the R-clamp under the machine and toward the back of the machine (Figure 17).

Figure 17

Important: Do not secure the hoses to the hot or moving parts.

Connect the wire harness for the washer-fluid bottle (Figure 18).

Figure 18

1. Remove the thumb screws and the grates from both the in-cab and rear-cab air filters (Figure 22).



   Figure 22

   1. Filter
   2. Grate
   3. Thumb screw


   Figure 23

   1. Filters
   2. Grate
   3. Thumb screw

2. Clean the filters by blowing clean, oil-free, compressed air through them.

   Important: If either filter has a hole, tear, or other damage, replace it.

3. Install the filters and grate, securing them with the thumb screws.

Important: Use care around the cab seals and lights (Figure 24). If you are using a pressure washer, keep the washer wand at least 0.6 m (2 ft) away from the machine. Do not use the pressure washer directly on the cab seals and lights or under the rear overhang.

Figure 24

1. Seal
2. Light
3. Keep wand 0.6 m (2 ft) away.
4. Do not pressure-wash under the rear overhang.
