GrandStand® Mower

• For best results, use only clean, fresh (less than 30 days old), unleaded gasoline with an octane rating of 87 or higher ((R+M)/2 rating method).

• Ethanol: Gasoline with up to 10% ethanol (gasohol) or 15% MTBE (methyl tertiary butyl ether) by volume is acceptable. Ethanol and MTBE are not the same. Gasoline with 15% ethanol (E15) by volume is not approved for use. Never use gasoline that contains more than 10% ethanol by volume, such as E15 (contains 15% ethanol), E20 (contains 20% ethanol), or E85 (contains up to 85% ethanol). Using unapproved gasoline may cause performance problems and/or engine damage that may not be covered under warranty.

• Do not use gasoline containing methanol.

• Do not store fuel either in the fuel tank or fuel containers over the winter unless you use a fuel stabilizer.

• Do not add oil to gasoline.

Filling the Fuel Tank

1. Park the machine on a level surface, disengage the PTO, move the motion-control levers to the NEUTRAL-LOCK position, and engage the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Clean around the fuel-tank cap and remove the cap.

4. Fill the fuel tank to the bottom of the filler neck.

   Note: Do not fill the fuel tank completely full. The empty space in the tank allows the fuel to expand.

5. Install the fuel-tank cap securely. Wipe up any spilled fuel.

Figure 6

Before starting the machine each day, perform the Each Use/Daily procedures listed in .

New engines take time to develop full power. Mower decks and drive systems have higher friction when new, placing additional load on the engine. Allow 40 to 50 hours of break-in time for new machines to develop full power and best performance.

Always engage the parking brake when you shut off the machine or leave it unattended. Before each use, check the parking brake for proper operation.

If the parking brake does not hold securely, adjust it; refer to Adjusting the Brakes.

Pull the parking-brake lever rearward to engage it (Figure 8).

Push the parking-brake lever forward to disengage it.

Figure 8

1. Parking brake—engaged
2. Parking brake—disengaged

Use the blade-control switch (PTO) in conjunction with the motion-control levers to engage and disengage the mower blades.

Engaging the Mower Blades (PTO)

Figure 9

Disengaging the Mower Blades (PTO)

Figure 10 and Figure 11 show 2 ways to disengage the mower blades.

Figure 10

Figure 11

You can move the throttle control between FAST and SLOW positions (Figure 12).

Always use the FAST position when engaging the PTO.

Figure 12

Use the choke to start a cold engine.

1. Pull up the choke knob to engage the choke before using the key switch (Figure 13).

2. Push down the choke knob to disengage the choke after the engine has started (Figure 13).



   Figure 13

   1. ON position
   2. OFF position

Important: Do not engage the starter for more than 5 seconds at a time. If the engine fails to start, wait 15 seconds between attempts. Failure to follow these instructions can burn out the starter motor.

Note: You may need to repeat the cycle for starting the engine when you start it for the first time after you have filled a completely empty fuel system with fuel.

Figure 14

Figure 15

Important: Do not engage the starter for more than 5 seconds at a time. If the engine fails to start, wait 15 seconds between attempts. Failure to follow these instructions can burn out the starter motor.

Note: You may need to repeat the cycle for starting the engine when you start it for the first time after you have filled a completely empty fuel system with fuel.

Figure 16

Let the engine idle at slow throttle (turtle) for 60 seconds before turning the key switch to the OFF position.

Figure 17

Important: Make sure that the fuel-shutoff valve is closed before transporting or storing the machine to prevent a fuel leak. Before storing the machine, disconnect the spark plug(s) to prevent the possibility of accidental starting.

You can use the machine with the platform in the up or down position. It is your preference on which position to use.

Operating the Machine with the Platform Down

Operate the machine with the platform down for the following conditions:

• Using the machine in most areas

• Driving across slopes

• Driving down slopes

To lower the platform, push the platform forward against the cushion to release pressure on the latch pin, then pull the knob out and lower the platform (Figure 18).

Figure 18

1. Platform up
2. Platform down
3. Pull the knob out to release the platform.

The throttle control regulates the engine speed as measured in rpm (revolutions per minute). Place the throttle control in the FAST position for best performance.

Important: Back the machine over curbs, 1 wheel at a time; driving it forward over curbs could damage the machine.

The height-of-cut can be adjusted from 38 to 127 mm (1-1/2 to 5 inches) in 6 mm (1/4 inch) increments.

Note: Using a height-of-cut under 51 mm (2 inches) increases the wear on the mower-deck belt. Use a height-of-cut that is greater than 51 mm (2 inches) whenever possible.

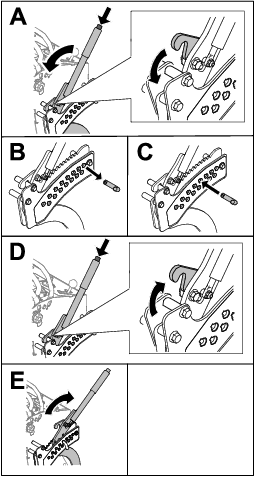

Figure 22

• Install weights to improve balance. You can add or remove weights to create optimized performance under different operating conditions and for your preference.

• Add or remove weights 1 at a time until you achieve the desired handling and balance.

• Refer to the Operator’s Manual of attachments for recommended weights.

Note: Contact an Authorized Service Dealer to order a weight kit.

Close the fuel-shutoff valve for transport, maintenance, and storage (Figure 23).

Ensure that the fuel-shutoff valve is open when starting the engine.

Figure 23

1. ON position
2. OFF position

The bypass valves allow you to push the machine by hand without the engine running.

Important: Always push the machine by hand. Do not tow the machine, because hydraulic damage may occur.

Important: Do not start or operate the machine with the bypass valves open. Damage to system may occur.

Figure 24

Use a heavy-duty trailer or truck to transport the machine. Use a full-width ramp. Ensure that the trailer or truck has all the necessary brakes, lighting, and marking as required by law. Please carefully read all the safety instructions. Knowing this information could help you or bystanders avoid injury. Refer to your local ordinances for trailer and tie-down requirements.

Selecting a Trailer

Warning

Loading a machine onto a trailer or truck increases the possibility of tip-over and could cause serious injury or death (Figure 25).

• Use only a full-width ramp; do not use individual ramps for each side of the machine.

• Ensure that the length of ramp is at least 4 times as long as the height of the trailer or truck bed to the ground.

Figure 25

1. Full-width ramp in stowed position
2. Ramp is at least 4 times as long as the height of the trailer or truck bed to the ground
3. H=height of the trailer or truck bed to the ground
4. Trailer

You can release the cushion for rear access to the machine for maintenance or adjustment.

1. Lower the platform.

2. Loosen the twist knobs on each side of the machine (Figure 28).



   Figure 28

   1. Twist knob
   2. Cushion

3. Remove the cushion and lower it to the platform.

4. Perform any maintenance or adjustment on the machine.

5. Raise the cushion, and slide it onto the pins on both sides of the machine.

6. Tighten the twist knobs.

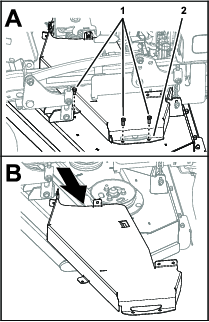

1. Remove the bolt and shoulder nut securing the engine guard to the guard extension (Figure 29).



   Figure 29

   1. Bolt and shoulder nut
   2. Engine guard

2. Rotate the engine guard forward as shown in Figure 30.



   Figure 30

3. Remove the 2 bolts (5/16 x 1 inch) and belt guard (Figure 31).



   Figure 31

   1. Bolt—5/16 x 1 inch (2)
   2. Belt guard

4. Remove the hex nut (5/16 inch) nut (5/16 inch) securing the guard extension to the carriage bolts (Figure 32). Remove the guard extension.



   Figure 32

   1. Hex nut (5/16 inch)
   2. Guard extension
   3. Nut (5/16)
   4. Carriage bolt (5/16 x 4 inches)

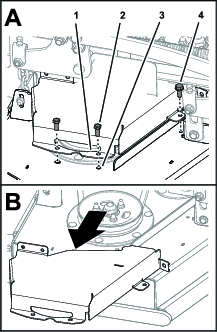

1. Install the extension guard as shown in Figure 32. Torque the nuts to 20 to 25 N∙m (15 to 18 ft-lb).

2. Install the belt guard as shown in Figure 31. Torque the bolts to 20 to 25 N∙m (15 to 18 ft-lb).

3. Rotate the engine guard back as shown in Figure 33.



   Figure 33

4. Secure the engine guard to the extension guard using the bolt and shoulder nut as shown in Figure 29.

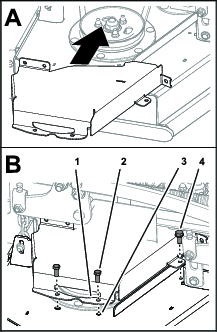

1. Remove the 2 flange-head screws that secure the tensioner cover to the left belt cover, and remove the tensioner cover (Figure 34).



   Figure 34

   1. Flange-head screws (1/4 x 5/8 inch)
   2. Tensioner cover
   3. Left belt cover

2. Remove the bolt that secure the belt cover flanges as shown in Figure 35.



   Figure 35

   1. Right belt cover
   2. Flange (left belt cover)
   3. Flange-head screw (left and right belt cover)

3. Remove the 2 carriage bolts and 2 lock nuts that secure the left side CE cover to the left belt cover (Figure 36).



   Figure 36

   1. Carriage bolt
   2. Left side CE cover
   3. Left belt cover
   4. Flange locknut

4. Remove the 3 bolts that secure the left belt cover to the deck, and remove the cover (Figure 37).



   Figure 37

   1. Bolts
   2. Left belt cover

1. Remove the 2 carriage bolts and 2 lock nuts that secure the right side CE cover to the right belt cover (Figure 38).



   Figure 38

   1. Flange locknut
   2. Right belt cover
   3. Right side CE cover
   4. Carriage bolt

2. Remove the 2 bolts and flange-head screw that secure the right belt cover to the deck, and remove the cover (Figure 39).



   Figure 39

   1. Right belt cover
   2. Bolt
   3. Deck
   4. Flange-head screw

1. Assemble the right belt cover to the deck (Figure 40) with the 2 bolts that you removed in Removing the Left Belt Cover.



   Figure 40

   1. Right belt cover
   2. Bolt
   3. Deck
   4. Flange-head screw

2. Assemble the right side CE cover to the right belt cover (Figure 41) with the 2 carriage bolts and 2 lock nuts that you removed in Removing the Left Belt Cover.



   Figure 41

   1. Flange locknut
   2. Right belt cover
   3. Right side CE cover
   4. Carriage bolt

1. Assemble the left belt cover to the deck (Figure 42) with the 3 bolts that you removed in Removing the Left Belt Cover.



   Figure 42

   1. Bolts
   2. Left belt cover

2. Assemble the left side CE cover to the left belt cover (Figure 43) with the 2 carriage bolts and 2 lock nuts that you removed in Removing the Left Belt Cover.



   Figure 43

   1. Carriage bolt
   2. Left side CE cover
   3. Left belt cover
   4. Flange locknut

3. Secure the belt cover flanges with the flange-head screw (Figure 44) that you removed in Removing the Left Belt Cover.



   Figure 44

   1. Right belt cover
   2. Flange (left belt cover)
   3. Flange-head screw (left and right belt cover)

4. Assemble the tensioner cover to the left belt cover with the 2 flange-head screws that you removed in Removing the Left Belt Cover, as shown in Figure 45.



   Figure 45

   1. Flange-head screws (1/4 x 5/8 inch)
   2. Tensioner cover
   3. Left belt cover

Grease with No. 2 lithium or molybdenum grease.

1. Disengage the PTO and set the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Clean the grease fittings with a rag.

   Note: Make sure to scrape any paint off the front of the fitting(s).

4. Connect a grease gun to the fitting.

5. Pump grease into the fittings until grease begins to ooze out of the bearings.

6. Wipe up any excess grease.

Important: Use only high-temperature grease. Do not use general-purpose grease.

1. Open the engine guard; refer to Opening the Engine Guard and Guard Extension.

2. Remove the left belt cover; refer to Removing the Left Belt Cover.

3. Grease the torsion idler on the mower deck using high-temperature grease at the grease fitting shown in Figure 46.



   Figure 46

   1. Grease fitting

4. Install the left belt cover; refer to Installing the Left Belt Cover.

5. Close the engine guard; refer to Closing the Engine Guard and Guard Extension.

Grease type: Lithium or molybdenum grease

1. Remove the dust cap and adjust the caster pivots; refer to Adjusting the Caster-Pivot Bearing.

   Note: Keep the dust cap off until you have finished greasing the caster pivots.

2. Remove the hex plug.

3. Thread a grease fitting (1/4 inch–28 taper thread) into the hole.

4. Pump grease into the fitting until it oozes out around the top bearing.

5. Remove the grease fitting from the hole.

6. Install the hex plug and dust cap.

Grease type: Lithium or molybdenum grease

1. Park the machine on a level surface, disengage the PTO, and engage the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Remove the caster wheel from the caster forks.

4. Remove the seal guards from the wheel hub (Figure 47).



   Figure 47

   1. Seal guard
   2. Spacer nut with wrench flats

5. Remove 1 spacer nut from the axle assembly in the caster wheel.

   Note: Thread-locking adhesive has been applied to lock the spacer nuts to the axle. Remove the axle (with the other spacer nut still assembled to it) from the wheel assembly.

6. Pry out the seals, inspect bearings for wear or damage, and replace them if necessary.

7. Pack the bearings with a general-purpose grease.

8. Insert 1 bearing and 1 new seal into the wheel.

   Note: You must replace the seals.

9. If both spacer nuts in the axle assembly have been removed (or broken loose), apply a thread-locking adhesive to 1 spacer nut, threading it onto the axle with the wrench flats facing outward.

   Note: Do not thread the spacer nut all of the way onto the end of the axle. Leave approximately 3 mm (1/8 inch) from the outer surface of the spacer nut to the end of the axle inside the nut.

10. Insert the assembled nut and axle into the wheel on the side of the wheel with the new seal and bearing.

11. With the open end of the wheel facing up, fill the area inside the wheel around the axle full of general-purpose grease.

12. Insert the second bearing and the new seal into the wheel.

13. Apply a thread-locking adhesive to the second spacer nut, threading it onto the axle with the wrench flats facing outward.

14. Torque the nut to 8 to 9 N∙m (71 to 80 in-lb), loosen it, then torque it to 2 to 3 N∙m (20 to 25 in-lb).

    Note: Make sure that the axle does not extend beyond either nut.

15. Install the seal guards over the wheel hub and insert the wheel into the caster fork.

16. Install the caster bolt and tighten the nut fully.

Important: To prevent seal and bearing damage, check the bearing adjustment often by spinning the caster wheel. The wheel should not spin freely (more than 1 or 2 revolutions) or have any side play. If the wheel spins freely, adjust the torque on the spacer nut until there is a slight amount of drag, and apply thread-locking adhesive.

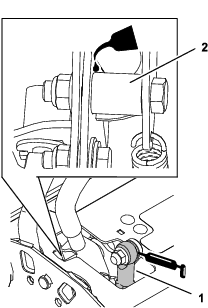

Grease the operator-presence-control balljoint and the motion-control bushing for both levers.

Note: Use an oil drip between the lever brackets to grease the bushing, located in the pivot tube.

Figure 48

1. Operator-presence control balljoint
2. Pivot tube

Ensure that the air gap between the center and side electrodes is correct before installing the spark plug.

Use a spark plug wrench for removing and installing the spark plug(s) and a gapping tool/feeler gauge to check and adjust the air gap. Install a new spark plug(s) if necessary.

Type: NGK® BPR4ES or equivalent

Air gap: 0.75 mm (0.03 inch)

Checking the Spark Plug

Important: Do not clean the spark plug(s). Always replace the spark plug(s) when it has a black coating, worn electrodes, an oily film, or cracks.

If you see light brown or gray on the insulator, the engine is operating properly. A black coating on the insulator usually means the air cleaner is dirty.

Set the gap to 0.75 mm (0.03 inch).

Figure 56

Installing the Spark Plug

Figure 57

1. Park the machine on a level surface, disengage the PTO, and engage the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Wait for the muffler to cool.

4. If you see any breaks in the screen or welds, replace the arrester.

5. If the screen is plugged, remove the arrester, shake loose particles out of the arrester, and clean the screen with a wire brush (soak the screen in solvent if necessary).

6. Install the arrester on the exhaust outlet.

You can drain the fuel tank by removing it and pouring the fuel out of the fill neck; refer to Removing the Fuel Tank. You can also drain the fuel tank by using a siphon in the following procedure.

1. Disengage the PTO, move the motion-control levers to the NEUTRAL-LOCK position, and engage the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Clean around the fuel cap to prevent debris from getting into the fuel tank (Figure 58).

4. Remove the fuel cap.

5. Insert a syphon pump into the fuel tank.

6. Using the syphon pump, drain the fuel into a fuel container.

7. Wipe up any spilled fuel.



   Figure 58

   1. Fuel cap

1. Lower the platform.

2. Release the cushion; refer to Releasing the Cushion for Rear Access.

3. Remove the cross bracket.



   Figure 59

   1. Fuel tank
   2. Cross bracket

4. Remove the fuel tank and set it on the operator platform.

   Note: If you want to move the fuel tank further from the machine, remove the fuel and vent lines from the top of the tank.

Do not install a dirty filter if it is removed from the fuel line.

Note: Wipe up any spilled fuel.

1. Park the machine on a level surface, disengage the PTO, and engage the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Close the fuel-shutoff valve; refer to Using the Fuel-Shutoff Valve.

4. Replace the fuel filter as shown in Figure 60.



   Figure 60

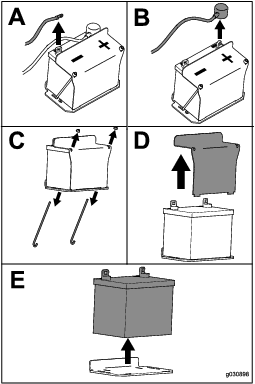

Always keep the battery clean and fully charged. Use a paper towel to clean the battery case. If the battery terminals are corroded, clean them with a solution of four parts water and 1 part baking soda. Apply a light coating of grease to the battery terminals to prevent corrosion.

Voltage: 12 V

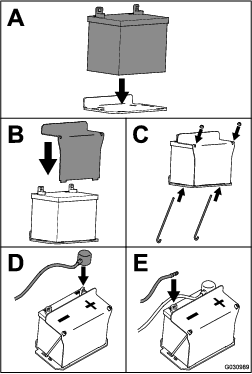

Installing the Battery

Install the battery as shown in Figure 63.

Figure 63

The electrical system is protected by fuses. It requires no maintenance. If a fuse blows, check the component or circuit for a malfunction or short.

1. Park the machine on a level surface, disengage the PTO, and engage the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Release the operator cushion from the rear of the machine.

4. Pull out the fuse and replace it (Figure 64).

5. Install the operator cushion.



   Figure 64

   1. Optional accessory fuse (15 A)
   2. Power-takeoff (PTO) fuse (10 A)
   3. Charge fuse (25 A)
   4. Main fuse (30 A)

If you push both motion-control levers forward the same distance and the machine pulls to 1 side, adjust the tracking as follows.

1. Park the machine on a level surface, disengage the PTO, and engage the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Release the cushion from the rear of the machine; refer to Releasing the Cushion for Rear Access.

   Note: For easier access, you can also remove the fuel tank; refer to Removing the Fuel Tank.

4. Rotate the left control rod in quarter-turn increments until the machine tracks straight (Figure 65).

   Note: If the machine pulls to the right, shorten the control rod by rotating it to the right. If the machine pulls to the left, lengthen the rod by rotating it to the left.

   Note: Adjust only the left control rod to match the left wheel speed to the right wheel speed. Do not adjust the right wheel speed, as this positions the right motion-control lever out of the center for the control panel neutral-lock slot.

   Important: Do not rotate the control rod too far, as this may cause the machine to creep in neutral.



   Figure 65

   1. Rotate left to lengthen the rod.
   2. Left control rod
   3. Rotate right to shorten the rod.

5. Check for proper tracking, and adjust the rod as necessary.

   Note: If you are unable to achieve proper tracking by adjusting the left control rod, contact your Authorized Service Dealer.

6. Check that the machine does not creep from the neutral position with the park brakes disengaged.

7. Install the fuel tank, if you removed it.

8. Install the cushion.

Maintain the air pressure in the rear tires at 83 to 97 kPa (12 to 14 psi).

Important: Uneven tire pressure can cause an uneven cut.

Note: The front tires are semi-pneumatic tires and do not require air-pressure maintenance.

Figure 66

1. Disengage the blade-control switch (PTO), move the motion control levers to the NEUTRAL-LOCK position, and set the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Remove the dust cap from the caster and tighten the locknut (Figure 67).

4. Tighten the locknut until the spring washers are flat, and then back off a 1/4 turn to properly set the preload on the bearings (Figure 67).

   Important: Make sure that the spring washers are installed correctly as shown in Figure 67.

5. Install the dust cap (Figure 67).



   Figure 67

   1. Spring washers
   2. Locknut
   3. Dust cap

The caster wheels rotate on a roller bearing supported by a spanner bushing. If the bearing is kept well lubricated, wear will be minimal. Failure to keep the bearing well lubricated causes rapid wear. A wobbly caster wheel usually indicates a worn bearing.

1. Remove the locknut and wheel bolt holding the caster wheel to the caster fork (Figure 68).



   Figure 68

   1. Locknut
   2. Bushing
   3. Spanner bushing
   4. Roller bearing
   5. Caster wheel
   6. Wheel bolt

2. Remove 1 bushing, then pull the spanner bushing and roller bearing out of the wheel hub (Figure 68).

3. Remove the other bushing from the wheel hub and clean any grease and dirt from the wheel hub (Figure 68).

4. Inspect the roller bearing, bushings, spanner bushing and the inside of the wheel hub for wear.

   Note: Replace any damaged or worn parts (Figure 68).

5. Place 1 bushing into the wheel hub (Figure 68).

6. Grease the roller bearing and spanner bushing, and slide them into the wheel hub (Figure 68).

7. Place the second bushing into the wheel hub (Figure 68).

8. Install the caster wheel into the caster fork and secure it with the wheel bolt and locknut (Figure 68).

9. Tighten the locknut until the spanner bushing bottoms against the inside of the caster forks (Figure 68).

10. Grease the fitting on the caster wheel.

When the clutch brake has worn to the point where the clutch no longer engages consistently, you can remove the shim to extend the clutch life (Figure 69).

Figure 69

1. Armature
2. Field shell
3. Rotor
4. Brake-mounting bolt
5. Brake spacer
6. Shim.
7. Brake pole

1. Park the machine on a level surface, disengage the PTO, and engage the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Using an air compressor, blow out any debris under the brake pole and around the brake spacers.



   Figure 70

4. Check the condition of the wire-harness leads, connectors, and terminals. Clean or repair them as necessary.

5. Verify that 12 V is present at the clutch connector when the you engage the PTO switch.

6. Measure the gap between the rotor and armature. If the gap is greater than 1 mm (0.04 inch), proceed with the following steps:

   1. Loosen both brake mounting bolts 1/2 to 1 full turn as shown in Figure 71.

      Note: Do not remove the brake pole from the field shell/armature. The brake pole has worn to match the armature and needs to continue to match after you remove the shim to ensure the proper brake torque.



      Figure 71

      1. Brake-mounting bolt

   2. Using needle-nose pliers, or by hand, remove the shim.

      Note: Do not discard the shim until you confirm that the clutch functions properly.



      Figure 72

      1. Shim

   3. Using a pneumatic line, blow out any debris under the brake pole and around the brake spacers.

   4. Torque each bolt (M6 x 1) to 12.3 to 13.7 N∙m (9.5 to 10.5 ft-lb).

   5. Using a 0.010 inch thick-feeler gauge, verify that a gap is present between the rotor and armature face on both sides of the brake pole as shown in Figure 73 and Figure 74.

      Note: Due to the way the rotor and armature faces wear (peaks and valleys), it is sometimes difficult to measure the true gap.



      Figure 73

      1. Feeler gauge


      Figure 74

      1. Feeler gauge

      • If the gap is less than 0.010 inch, then install the shim and refer to .

      • If the gap is sufficient, proceed to the safety check in step 7.

   6. Perform the following safety check:

      1. Start the engine from the operator’s position.

      2. Make sure that the blades do not engage when the PTO switch is in the OFF position and the clutch is disengaged.

         Note: If the clutch does not disengage, install the shim, and refer to .

      3. Engage and disengage the PTO switch 10 consecutive times to ensure that the clutch is functioning properly.

         Note: If the clutch does not engage properly, refer to .

Check and torque the wheel-lug nuts to 115 to 142 N∙m (85 to 105 ft-lb).

Before each use, remove any buildup of grass, dirt, or other debris from the cylinder and cylinder-head cooling fins, air-intake screen on the flywheel end, and the carburetor-governor levers and linkage. This helps ensure adequate cooling of the engine and the correct engine speed, and it reduces the possibility of overheating or mechanical damage to the engine.

1. Park the machine on a level surface, disengage the PTO, and engage the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Remove the air-intake screen and fan housing (Figure 75).

4. Clean the debris and grass from the engine parts.

5. Install the air-intake screen and fan housing (Figure 75).



   Figure 75

   1. Guard and engine air-intake screen
   2. Fan housing

Before each use, test the parking brake on both a level surface and slope.

Always engage the parking brake when you stop the machine or leave it unattended. If the parking brake does not hold securely, adjust it.

1. Disengage the PTO and engage the parking brake

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Disengage the parking brake.

4. Engage the brake lever and ensure that the machine does not move.

5. Adjust the brake if needed.

1. Remove the fuel tank; refer to Removing the Fuel Tank.

2. Loosen the bolt on the cable clamp on the left side of the machine.



   Figure 76

   1. Cable
   2. Cable clamp
   3. Bolt and nut

3. Pull down on the cables until they are taut.

4. Tighten the nut.

5. Install the fuel tank, cross bracket, and cushion.

Check belts for cracks, frayed edges, burn marks, wear, signs of overheating, or any other damage.

The signs of a worn mower belt are squealing while the belt is rotating, blades slipping while you are cutting grass, frayed belt edges, burn marks, and cracks. Replace the mower belt if you detect any of these signs.

1. Remove the fuel tank; refer to Removing the Fuel Tank.

2. Remove the hydraulic-reservoir cap.

3. Locate the drain plugs in the bottom of the transmission and place a drain pan under the plug (Figure 80).



   Figure 80

   1. Drain plug

4. Allow the hydraulic fluid to drain from the machine.

5. Remove the lower hydraulic hose (Figure 81).



   Figure 81

   1. Lower hydraulic hose
   2. Transmission belt
   3. Tension spring

6. Remove the tension spring (Figure 81).

   Caution

   The spring is under tension when installed and can cause personal injury.

   Wear safety glasses and be careful when removing the spring.

7. Remove the transmission belt from the clutch and clutch stop (Figure 81).

8. Install the new belt.

9. Install the tension spring and lower hydraulic hose.

10. Install the drain plugs and torque to 22 to 27 N∙m (16 to 20 ft-lb).

11. Add hydraulic fluid to the fill level.

12. Install the hydraulic-reservoir cap.

13. Run the machine for 10 minutes and verify that the hydraulic fluid is at the correct level.

If the motion-control levers do not align horizontally, adjust the motion-control levers.

1. Park the machine on a level surface, disengage the PTO, and engage the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Push the motion-control levers down out of the NEUTRAL-LOCK position (Figure 82).

4. Check if the right motion-control lever aligns horizontally with the left motion-control lever (Figure 82).



   Figure 82

   1. Left motion-control lever
   2. Right motion-control lever in the Neutral-lock position
   3. Check the horizontal alignment here
   4. Right motion-control lever

   Note: To adjust the right motion-control lever horizontally, adjust the cam.

5. Release the cushion from the rear of the machine.

6. Loosen the nut holding the cam (Figure 83).



   Figure 83

   1. Cam
   2. Nut

7. Adjust the cam until it aligns with the left motion-control lever and tighten the nut for the cam.

   Note: Moving the cam clockwise (in the vertical position) lowers the handle; moving the cam counterclockwise (in the vertical position) raises the handle.

   Important: Ensure that the flat portion of the cam does not go above a vertical position (right or left); otherwise you may damage the switch.

8. Repeat steps 3 through 7 for the left motion-control lever.

Hydraulic Fluid Type: Toro^® HYPR-OIL^™ 500 hydraulic fluid

Hydraulic System Fluid Capacity: 4.7 L (159 fl oz)

Important: Use the fluid specified. Other fluids could damage the system.

Note: Check the hydraulic-fluid level when the fluid is cold.

1. Park the machine on a level surface, disengage the PTO, and engage the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Clean the area around the cap and the filler neck of the hydraulic tank (Figure 84).



   Figure 84

   1. Hydraulic-tank cap
   2. Fill level

4. Remove the cap from the filler neck (Figure 84).

   Note: Look inside to check the fluid level in the reservoir.

5. Add fluid to the reservoir until it reaches the reaches the minimum cold fill level.

6. Install the cap on the filler neck.

Change the hydraulic fluid more frequently in severe conditions or in a hot operating climate. Contact your Authorized Service Dealer for a hydraulic kit to replace the hydraulic filters.

1. Park the machine on a level surface, disengage the PTO, and engage the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Remove the fuel tank; refer to Removing the Fuel Tank.

4. Remove the hydraulic-reservoir cap.

5. Locate the drain plug in the bottom of each transmission and place a drain pan under the plugs (Figure 85).



   Figure 85

   1. Drain plug
   2. Hydraulic filter

6. Remove the drain plugs.

7. Allow the hydraulic fluid to fully drain from the machine.

8. Remove the hydraulic filter cap and filter from each transmission.

9. Install new hydraulic filters with the spring side facing out and install the filter caps.

10. Install the drain plugs and torque to 22 to 27 N∙m (16 to 20 ft-lb).

11. Loosen the vent plug in each transmission so that it is loose and wobbles (Figure 86).

    Note: This allows air to escape the hydraulic system as you add hydraulic fluid.



    Figure 86

    Left transmission shown

    1. Vent plug

12. Slowly add fluid to the hydraulic tank until it starts to come out 1 of the vent plugs.

    Important: Use the fluid specified in Hydraulic System Specifications or equivalent. Other fluids could cause system damage.

    Important: Monitor the level of fluid in the hydraulic tank so that you do not overfill it.

13. Tighten the vent plugs.

14. Install the hydraulic-tank cap.

15. Install the fuel tank.

16. Start the engine and let it run for about 2 minutes to purge air from the system.

17. Shut off the engine and check for leaks.

    Note: If 1 or both wheels do not drive, refer to Bleeding the Hydraulic System.

The traction system is self-bleeding, however, it may be necessary to bleed the system if fluid is changed or after work is performed on the system.

1. Park the machine on a level surface, disengage the PTO, and engage the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Raise the rear of the machine onto jack stands high enough to raise the drive wheels off the ground.

4. Start the engine and move the throttle control to the idle position.

   Note: If the drive wheel does not rotate, assist the purging of the system by carefully rotating the tire in the forward direction.

5. Check the hydraulic fluid level as it drops, and add fluid as required to maintain the proper level.

6. Repeat this procedure for the opposite wheel.

To ensure a superior quality of cut, keep the blades sharp. For convenient sharpening and replacement, keep extra blades on hand.

Note: Adjusting the compression spring alters how much the deck floats and the amount of effort needed to lift the deck when using the height-of-cut lever.

• More spring compression reduces the lever lift force required and causes the deck to float more.

• Less spring compression increases the lever lift force required and causes the deck to float less.

1. Raise the height-of-cut lever and lock it into the transport position.

2. Check the distance between the spring nut and the rear side of the welded mount bracket (Figure 98).

3. Ensure that the length is between 47 to 50 mm (1.8 to 2 inches) (Figure 98).

4. If needed, adjust the distance by adjusting the bolt on the front of the mount bracket (Figure 98).



   Figure 98

   1. Deck-lift spring
   2. Spring nut
   3. Rear side of the mount bracket
   4. Adjustment bolt
   5. Length is between 47 to 50 mm (1.8 to 2 inches).

5. Repeat this procedure for the opposite deck-lift spring.

Remove the grass buildup under the mower daily.

1. Disengage the PTO, move the motion-control levers to the NEUTRAL-LOCK position and set the parking brake.

2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

3. Raise the front of the machine and use jack stands to support the mower.

Engine oil, batteries, hydraulic fluid, and engine coolant are pollutants to the environment. Dispose of these according to your state and local regulations.
