Wireless Hour Meter Kit

1. Park the machine on a level surface.

2. Engage the parking brake.

3. Shut off the engine.

4. Remove the spark-plug wire from the spark plug; refer to your machine Operator’s Manual.

Parts needed for this procedure:

1. Install the mount, mount plate, and regulator to the rear tube frame using 2 flange nuts as shown in Figure 1.

   Important: Install the ring terminal from the regulator connector between the regulator and the mount plate (Figure 1).



   Figure 1

   1. Flange nuts
   2. Regulator
   3. Mount plate
   4. Ring terminal
   5. Mount

2. Connect the regulator connector to the wireless hour meter kit wire harness (Figure 2).



   Figure 2

   1. WHM harness — single connectors
   2. WHM harness — WHM connector
   3. WHM harness — regulator connector
   4. Regulator connector
   5. Regulator

3. Remove and discard the mounting brackets from the face of the WHM.

4. Connect the wireless hour meter to the WHM kit harness (Figure 3).



   Figure 3

   1. WHM harness — WHM connector
   2. Wireless hour meter connector

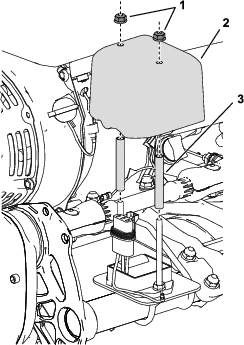

5. Install the spacers and the cover over the wireless hour meter and the wire harness connections as shown in Figure 4.

   Important: Route the remaining loose wire harness ends out of the notch in the wireless hour meter cover.



   Figure 4

   Wire harness connections not shown for clarity

   1. Flange nuts
   2. Cover
   3. Spacer

6. Connect the wireless hour meter wire harness to the engine as follows:

   For machines with the Light Kit not equipped:

   • Connect the wire-harness end labeled J01 to the white end of the engine wire harness.

   • Connect the wire-harness end labeled J02 to the green end of the main wire harness.

   • Connect the wire-harness end labeled J03 to engine mounting bolt as a ground.

   • Connect the wire-harness end labeled J04 to the white end of the main wire harness.

   • Connect the wire-harness end labeled J05 to the green end of the engine wire harness.

   For machines with the Light Kit equipped:

   • Connect the wire-harness end labeled J01 to the white end of the engine wire harness.

   • Connect the wire-harness end labeled J02 to the black end of the light-kit wire harness labeled J02.

   • Connect the wire-harness end labeled J03 to engine mounting bolt as a ground.

   • Connect the wire-harness end labeled J04 to the white end of the main wire harness.

   • Connect the wire-harness end labeled J05 to the green end of the engine wire harness.

   • Connect the white end of the light-kit wire harness (labeled J01) to the green end of the main wire harness.
