Rear Quick-Attach System

1. Park the machine on a level surface, lower the cutting unit, stop the machine, engage the parking brake, and remove the key from the ignition switch.

   Caution

   If you leave the key in the ignition switch, someone could accidently start the engine and seriously injure you or bystanders.

   Remove the key from the ignition switch before you do any maintenance.

2. Disconnect the negative (–) battery cable from the battery.

Parts needed for this procedure:

Note: To gain additional access during the assembly of the kit, raise the rear of the traction unit, support it with jack stands, and remove the right, rear tire.

1. Remove the existing 3 bolts and 3 nuts from the skid assembly (Figure 1).

   Note: Retain the nuts.



   Figure 1

   1. Bolt
   2. Nut

2. Secure the cylinder-support assembly to the rear-bumper bracket and skid assembly with 2 bolts (3/8 x 2-3/4 inch), 3 bolts (3/8 x 1-1/4 inch), 2 nuts (3/8 inch), and the 3 existing nuts that you just removed.

   Note: Position the cylinder-support assembly as shown in Figure 2.



   Figure 2

   1. Nut (3/8 inch)
   2. Cylinder-support assembly
   3. Bolt (3/8 x 1-1/4 inch)
   4. Rear-bumper bracket
   5. Bolt (3/8 x 2-3/4 inch)
   6. Existing nut

3. Mount the lift-arm assembly to the rear frame members, with 2 bolts (7/8 x 4-1/2 inch), 2 jam nuts (7/8 inch), and as many spindle washers as necessary to evenly shim between the right and left sides of the lift arm and rear frame members.

   Note: Position the components as shown in Figure 3.



   Figure 3

   1. Bolt (7/8 x 4-1/2 inch)
   2. Lift-arm assembly
   3. Spindle washer
   4. Jam nut

4. Torque the bolts and locknuts 518 to 648 N-m (382 to 478 ft-lb).

5. Adjust the length of the threaded link to 19 cm (7-1/2 inches) and tighten the jam nuts (Figure 4).



   Figure 4

   1. Length of threaded link—19 cm (7-1/2 inches)

6. Secure the threaded link rod end to the cylinder-support assembly with a bolt (1/2 x 1-1/2 inch) and locknut (1/2 inch) as shown in Figure 5.



   Figure 5

   1. Lift adapter
   2. Cylinder-support assembly

7. Mount the loose end of the hydraulic cylinder to the cylinder-support assembly with the cylinder-mount pivot pin, bolt (3/8 x 1 inch), and nut (3/8 inch) as shown in Figure 6.



   Figure 6

   1. Grease fitting
   2. Pivot pin
   3. Hydraulic cylinder (stationery end)

8. Thread a grease fitting into the end of the pivot pin as shown in Figure 6.

Parts needed for this procedure:

Note: To gain additional access during the assembly of the kit, raise the rear of the traction unit, support it with jack stands, and remove the right, rear tire.

1. Secure the link mount to the rear-bumper bracket with 3 bolts (3/8 x 1 inch) and 3 nuts (3/8 inch).

   Note: Position the link mount as shown in Figure 7.



   Figure 7

   1. Link mount

2. Mount the lift-arm assembly to the rear frame members, with 2 bolts (7/8 x 4-1/2 inch), 2 jam nuts (7/8 inch), and as many spindle washers as necessary to evenly shim between the right and left sides of the lift arm and rear frame members.

   Note: Position the components as shown in Figure 8.



   Figure 8

   1. Jam nut (7/8 inch)
   2. Spindle washer
   3. Bolt (7/8 x 4-1/2 inch)
   4. Lift-arm assembly

3. Torque the bolts and locknuts 518 to 648 N-m (382 to 478 ft-lb).

4. Adjust the length of the threaded link to 19 cm (7-1/2 inches) and tighten the jam nuts (Figure 9).



   Figure 9

   1. Length of threaded link—19 cm (7-1/2 inch)

5. Secure the rod end of the threaded link to the link-support assembly with a bolt (1/2 x 1-1/2 inch) and locknut (1/2 inch) as shown in Figure 10.



   Figure 10

   1. Threaded link
   2. Link-support assembly

6. Mount the stationary end of the hydraulic cylinder to the underside of the frame cross-member bracket with a pivot pin (Figure 11).



   Figure 11

   1. Hydraulic cylinder (stationary end)
   2. Grease fitting
   3. Pivot pin

7. Thread a grease fitting into the end of the pivot pin (Figure 11).

   Note: Position the grease fitting as shown in Figure 12.



   Figure 12

   1. Pivot pin
   2. Grease fitting
   3. Angle of grease fitting—45 degrees

Parts needed for this procedure:

1. On the right side of the machine, just ahead of the radiator frame, place a drain pan under the oil-cooler-return hose (Figure 13 or Figure 14).



   Figure 13

   Model 30810

   1. Radiator frame
   2. Oil-cooler-return hose


   Figure 14

   Model 30812

   1. Radiator frame
   2. Oil-cooler-return hose

2. Route the short hose from the manifold to the oil-cooler-return hose location.

3. For Model 30810 only: Install the short hose to the oil-cooler hose as follows:

   1. Remove the cap from the hardline of the oil-cooler return hose (Figure 15).



      Figure 15

      1. Short hose
      2. Hardline cap
      3. Oil-cooler-return hose

   2. Thread the short hose to the hardline (Figure 15).

   3. Continue to step 6.

4. For Model 30812 only: Install the short hose to the oil-cooler hose as follows:

   1. Insert a clamp onto the short hose and then insert the tee fitting into the end of the short hose (Figure 16).



      Figure 16

      1. Short hose
      2. Tee fitting

   2. Measure approximately 12.7 cm (5 inches) from the radiator frame and cut the oil-cooler-return hose (Figure 17).

      Note: This is the hose between the deck-lift valve and the oil cooler. Hold the hose ends up to decrease the amount of hydraulic fluid lost.



      Figure 17

      1. Cut the hose here.
      2. Tee fitting
      3. To the deck-lift valve
      4. From the oil cooler

   3. Secure all 3 hoses to the tee fitting with hose clamps (7/8 inch).

   4. Install the short hose to the port in the oil-cooler-return hose.

5. On the right frame, locate the deck-lift-valve assembly (Figure 18).



   Figure 18

   1. Plug
   2. Valve assembly

6. Remove the plug from the left side of the valve assembly (Figure 18).

7. Thread the hydraulic valve fitting into the opening of the valve (Figure 19).



   Figure 19

   1. Hose
   2. Straight fitting

8. Route the long hose under the radiator frame, over the frame cross member, and along the frame rail to the valve (Figure 20).

   Note: The long hose will follow another hose from the transmission bay to the valve assembly.



   Figure 20

   1. Cable tie
   2. Long hose
   3. Valve

9. Secure the long hose with 4 cable ties (Figure 20).

10. Secure the hose fitting to the straight fitting (Figure 19).

Parts needed for this procedure:

1. On the right side of the machine, mount 6 relays onto the relay bracket using 6 bolts (1/4 x 1/2 inch) and 6 nuts (1/4 inch) as shown in Figure 21.



   Figure 21

   1. Bolt (1/4 x 1/2 inch)
   2. Relay
   3. Nut (1/4 inch)
   4. Support-tube bolt
   5. Support-tube nut
   6. Relay bracket
   7. Bolt (1/4 x 3/4 inch)

2. Remove the bolt and nut from the support tube.

3. Using a bolt (1/4 x 3/4 inch), nut (1/4 inch), and the bolt and nut that you just removed, mount the relay bracket to the machine (Figure 21).

4. Unlatch the control-panel cover and move it aside (Figure 22).



   Figure 22

   1. Control panel
   2. Latch

5. Locate and remove the 2 knockout plugs from the top of the control panel (Figure 23).



   Figure 23

   1. Knockout plugs
   2. Knockout plug locations

6. Carefully cut and remove the decal material to expose the control panel holes.

   Note: Remove only the knockout plugs and decal material for the required switches.

7. Deburr the newly exposed edges of the control panel.

8. Clean the control panel surface and affix the decal around the exposed holes (Figure 24).



   Figure 24

   1. Decal
   2. Float/power-down switch (2-position switch)
   3. Lift/lower switch (3-position switch)

9. Insert the switches into the appropriate mounting holes (Figure 24).

   Note: Position the flat portion of the switch toward the operator.

Parts needed for this procedure:

1. Loosely mount the relay bracket to the frame using a bolt (3/8 x 2 inches), washer (0.406 inch), and nut (3/8 inch), as shown in Figure 25.



   Figure 25

   1. Bolt, nut, and washer
   2. Relay bracket
   3. Mark here.

2. Mark the location indicated in Figure 25.

3. Remove the bracket, and drill a hole (0.281 inch) through both walls of the frame in the location that you marked.

4. Install the bracket with the hardware you used to loosely install the bracket and secure the bracket to the new hole with a bolt (1/4 x 2-1/2 inches) and nut (1/4 inch).

5. Install the 6 relays to the bracket using 6 bolts (1/4 x 1/2 inch) and 6 locknuts (1/4 inch).



   Figure 26

   1. Bolt (1/4 x 1/2 inch)
   2. Relay
   3. Locknut (1/4 inch)

6. Unlatch the control-panel cover and move it aside (Figure 22).



   Figure 27

   1. Control panel
   2. Latch

7. Locate and remove the 2 knockout plugs from the top of the control panel (Figure 28).



   Figure 28

   1. Knockout plugs
   2. Knockout plug locations

8. Carefully cut and remove the decal material to expose the holes in the control panel.

   Note: Remove only the knockout plugs and decal material for the required switches.

9. Deburr the newly exposed edges of the control panel.

10. Clean the control panel surface and affix the decal around the exposed holes (Figure 29).



    Figure 29

    1. Decal
    2. Float/power-down switch (2-position switch)
    3. Lift/lower switch (3-position switch)

11. Insert the switches into the appropriate mounting holes (Figure 29).

    Note: Position the flat portion of the switch toward the operator.

Parts needed for this procedure:

Note: The machine must be equipped with the Auxiliary Power Unit Kit, Toro part no. 30382.

1. Cover exposed connectors on the wiring harness with masking tape or electrical tape to keep debris out of the connectors while routing the harness.

2. Route and connect the wiring harness (Figure 30 and Figure 31) at the follows locations:

   • Hydraulic-manifold connectors

   • Relays (6) on the relay bracket

   • Main harness connector, located under the right operator controls by the standard control module

     Note: The main harness connector is a 2-wire Metri-pak connector (brown and tan wires)

   • Deck lift in A and B

     Note: Unplug the 2 connectors from the lift-manifold block and plug them into the wiring harness.

   • Deck lift out A and B

     Note: Plug the wiring harness into the lift-block manifold where you just unplugged the 2 connectors.

   • Pink power-wire connector

   • Ground to the ground block

   • Lift/lower switch

   • Float/enable switch

3. Secure the wiring harness to the machine with cable ties.

   Important: Keep the harness away from all hot, sharp, or moving parts.

   Important: Secure the wiring harness away from the tail pipe of the machine.

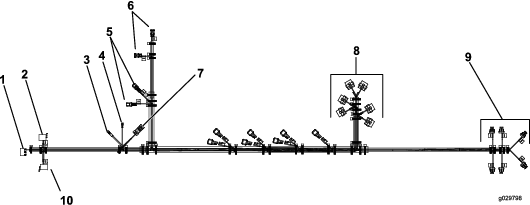

Figure 30

Figure 31

1. Blower PTO switch (used with blower)
2. Lift/lower switch
3. Ground
4. Power
5. Deck lift in (A and B)
6. Deck lift out (A and B)
7. Main wiring harness
8. Relays (6)
9. Hydraulic manifold
10. Float/power-down switch

1. Grease all the new grease fittings with Number 2 lithium-based grease.

2. Check the hydraulic fluid level and replenish as required.

3. Connect the negative (–) battery cable.

4. Start the machine and operate the rear lift. Check for leaks and replenish hydraulic fluid as necessary.

   Note: If installed correctly, the manifold should have no electrical power when the key is in the OFF position.

Move the switch to the LIFT position to raise the attachment and to the LOWER position to lower the attachment (Figure 33).

Moving the switch to the FLOAT position allows the attachment to follow the contour of the ground. Moving the switch to the POWER DOWN position adds weight from the machine to increase ground engagement force (Figure 33). Higher ground engagement force decreases the traction capacity of the machine.

Figure 32

Model 30810

1. FLOAT/POWER-DOWN switch
2. LIFT/LOWER switch

Figure 33

Model 30812

1. FLOAT/POWER-DOWN switch
2. LIFT/LOWER switch

To increase or decrease the engagement angle of the attachment, proceed as follows:

1. Loosen the jam nuts on the threaded link (Figure 34).

2. Rotate the hex tube until you achieve the desired angle (Figure 34).

3. Tighten the jam nut to lock the adjustment (Figure 34).

4. With the engine operating at low idle, raise the rear attachment to make sure that it does not contact the hood.



   Figure 34

   1. Threaded link

Use the following weight charts to determine the correct amount of front weight required for your machine.

Use the following weight charts to determine the correct amount of front weight required for your machine.

• Read and understand the attachment Operator's Manual before using the machine.

• Make sure that the appropriate weight mount bracket and front weight(s) are installed for the rear attachment.

• Remove rear attachment and any loose front-end weights prior to mowing.

• Use care when operating the machine when a rear attachment is installed, because it is wider than the machine and may contact poles, fences, or trees.

• Never operate the machine near bystanders.

• Lubricate the grease fittings with Number 2 lithium-based grease weekly or after every washing.

• When operating in dusty conditions, the air cleaner should be checked daily. A safety air-cleaner element is available and may be added to the existing air cleaner for additional engine protection.
