Storage Box Kit

1. Park the machine on a level surface.

2. Engage the parking brake.

3. Lower the cutting unit.

4. Shut off the engine and remove the key.

Parts needed for this procedure:

1. Using the dimensions shown in Figure 1, place the base plate on the platform and align it to the seat base.



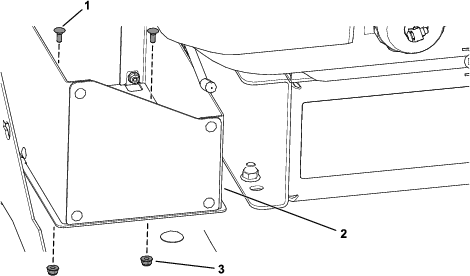

   Figure 1

   1. Base plate
   2. 22.6 mm (7/8 inch)
   3. 6.4 mm (1/4 inch)
   4. Seat base

2. Using the base plate as the template, drill 2 holes (1/4 inch) into the platform as shown in Figure 2.

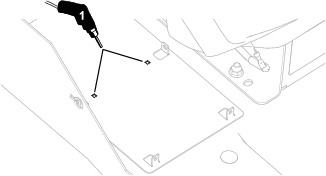

   Figure 2

   1. Drill 2 holes (1/4 inch) here.

3. Secure the base plate, short side plate, tall side plate, and 2 end plates using 10 carriage bolts (#10 x 1/2 inch) and 10 locknuts (#10) as shown in Figure 3.



   Figure 3

   1. Base plate
   2. Tall side plate
   3. Locknut (#10)
   4. Carriage bolt (#10 x 1/2 inch)
   5. End plate
   6. Short side plate

4. Secure the assembled storage box to the platform using 2 carriage bolts (#10 x 1/2 inch) and 2 locknuts (#10) as shown in Figure 4.



   Figure 4

   1. Carriage bolt (#10 x 1/2 inch)
   2. Storage box
   3. Locknut (#10)
