50in or 54in Bagger

Zero-Turn-Radius Riding Mower

Model No. 79412-Serial No. 400000000 and Up

Introduction

Read this information carefully to learn how to operate and maintain your product properly and to avoid injury and product damage. You are responsible for operating the product properly and safely.

Visit www.Toro.com for product safety and operation training materials, accessory information, help finding a dealer, or to register your product.

Whenever you need service, genuine Toro parts, or additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and serial numbers of your product ready. Figure 1 identifies the location of the model and serial numbers on the product. Write the numbers in the space provided.

g005673

Figure 1

  1. Model and serial number location

This manual identifies potential hazards and has safety messages identified by the safety-alert symbol (Figure 2), which signals a hazard that may cause serious injury or death if you do not follow the recommended precautions.

g000502

Figure 2

  1. Safety-alert symbol

This manual uses 2 words to highlight information. Important calls attention to special mechanical information and Note emphasizes general information worthy of special attention.

Warning

CALIFORNIA

Proposition 65 Warning

Use of this product may cause exposure to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Safety

  • Become familiar with the safe operation of the equipment, with the operator controls, and safety signs.

  • Use extra care with grass catchers or other attachments. These can change the operating characteristics and the stability of the machine.

  • Follow the manufacturer's recommendations for adding or removing wheel weights or counterweights to improve stability.

  • Do not use a grass catcher on steep slopes. A heavy grass catcher could cause loss of control or overturn the machine.

  • Slow down and use extra care on hillsides. Be sure to travel in the recommended direction on hillsides. Turf conditions can affect the stability of the machine. Use extreme caution while operating near drop-offs.

  • Keep all movement on slopes slow and gradual. Do not make sudden changes in speed, direction, or turning.

  • The grass catcher can obstruct the view to the rear. Use extra care when operating in reverse.

  • Use care when loading or unloading the machine into a trailer or truck.

  • Never operate with the discharge deflector raised, removed or altered, unless using a grass catcher.

  • Keep hands and feet away from moving parts. Do not make adjustments with the engine running.

  • Park the machine on level ground, disengage the drives, engage the parking brake, shut off the engine, and remove the key before leaving the operator's position for any reason including emptying the grass catcher or unclogging the chute.

  • If you remove the grass catcher, be sure to install any discharge deflector or guard that might have been removed to install the grass catcher. Do not operate the mower without either the entire grass catcher or the grass deflector in place.

  • Do not leave grass in the grass catcher for extended periods of time.

  • Grass catcher components are subject to wear, damage and deterioration, which could expose you to moving parts or allow objects to be thrown. Frequently check components and replace with the manufacturer's recommended parts, when necessary.

Towing Safety

  • Do not attach towed equipment except at the hitch point.

  • Follow the attachment manufacturer's recommendation for weight limits for towed equipment and towing on slopes.

  • Never allow children or others in or on towed equipment.

  • On slopes, the weight of the towed equipment may cause loss of traction and loss of control. Reduce towed weight and slow down.

  • Stopping distance increases with the weight of the towed load. Travel slowly and allow extra distance to stop.

  • Make wide turns to keep the attachment clear of the machine.

  • Do not tow a load that weighs more than the towing machine.

Safety and Instructional Decals

Graphic

Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing.
decal109-6809

109-6809

  1. Crushing hazard of hand—do not remove the whole bagger from the machine; open the bagger top and then remove the bag(s) from the bagger. Do not remove the bagger top when it is closed; open the bagger top and then remove it.
decal110-6691

110-6691

  1. Thrown object hazard—keep bystanders away.
  2. Thrown object hazard, mower—do not operate without the deflector, discharge cover, or grass collection system in place.
  3. Cutting/dismemberment hazard of hand or foot—stay away from moving parts.
decal133-8061

133-8061

Setup

Preparing the Machine

  1. Park the machine on a level surface.

  2. Engage the parking brake.

  3. Shut off the engine and remove the key.

Preparing the Machines equipped with MyRide

Remove the bolts securing the guards on the sides of the frame.

Remove the guards on both sides of the frame. Retain all of the parts.

g308507

Figure 3

Installing the Weights

Parts needed for this procedure:

Bolt (3/8 x 1 inch)4
Locknut (3/8 inch)6
Left weight-mounting bracket1
Right weight-mounting bracket1
Washer2
Bolt (5/8 x 2-3/4 inches)2
Suitcase weight6

Caution

The bagger changes the weight distribution of the machine. Operating the machine without the front weights may cause an unstable condition, which could result in a loss of control.

Ensure the front weights are properly installed before operating the machine with the bagger attachment.

  1. Install the weight-mounting brackets to the under side of the frame using 2 bolts (3/8 x 1 inch), and 2 locknuts (3/8 inch) as shown in Figure 4.

  2. Install the suitcase weights to the weight mounting brackets using 2 bolts (5/8 x 2-3/4 inches), 2 washers, and 2 locknuts (3/8 inch) as shown in Figure 5.

  3. Once you have installed all the weights and brackets, ensure that all the fasteners are tight. Tighten as necessary.

    Important: Whenever you remove the bagger attachment, remember to remove the front weights to return the proper stability to the machine.

    g299192

    Figure 4

    Castor fork and wheel not shown for clarity.

    1. Front right caster
    2. Forward hole (right side shown)
    3. Locknut (3/8 inch)
    4. Right mounting bracket
    5. Bolts (3/8 x 1 inch)
    g299244

    Figure 5

    1. Spacer
    2. Locknut (3/8 inch)
    3. Suitcase weights
    4. Bolts (5/8 x 2-3/4 inches)

Installing the Guards on the Machines equipped with MyRide

Insert the top of the guard under the deck, tilt the guard to slide the guard under the frame and place the guard into the notches.

g308505

Figure 6

g308526

Figure 7

  1. Notch

Secure the guard with the bolts.

g308507

Figure 8

Installing the Attachment Mount

Parts needed for this procedure:

Stabilizer bracket 1
Carriage bolt (5/16 x 3/4 inch)2
Locknut (5/16 inch)4
Self-tapping screw (5/16 x 3/4 inch)2
Bolt (5/16 x 1 inch)2
Pivot frame 1
Hairpin cotter 2
Rod 2
Washer 2

Installing the Stabilizer Bracket and Pivot Frame

  1. Install the stabilizer bracket to the engine guard using 2 carriage bolts (5/16 x 3/4 inch) and 2 locknuts (5/16 inch) (Figure 9).

    g300204

    Figure 9

    1. Carriage bolt (5/16 x 3/4 inch)
    2. Locknut (5/16 inch)

  2. Install the pivot frame to the machine frame as shown in Figure 10. Secure the pivot frame to the machine frame using 2 bolts (5/16 x 1 inch) and 2 locknuts (5/16 inch).

    g300205

    Figure 10

    1. Locknut (5/16 inch)
    2. Bolt (5/16 x 1 inch)

  3. Secure the pivot frame to the bottom of the machine frame using 2 self-tapping screws (5/16 x 3/4 inch) as shown in Figure 11.

    g300206

    Figure 11

    1. Self-tapping screw (5/16 x 3/4 inch)

  4. Install the bent, flared end of a rod into the keyed slot in the left side of the machine frame, and move the rod rearward to seat it in the frame (Figure 12).

    Note: Repeat this step for the right side of the machine.

    g300207

    Figure 12

  5. Insert the bent ends of the rods into the attachment mount as shown in Figure 12 and secure the end of each rod with a washer and hairpin cotter.

Installing the Latch Rod

Parts needed for this procedure:

Latch rod1
Hairpin cotter1

Install the latch rod with a hairpin cotter (Figure 13).

g033027

Figure 13

  1. Hairpin cotter
  2. Latch rod

Assembling the Bagger Top

Parts needed for this procedure:

Bagger top1
Bagger screen1

  1. Turn the bagger top over.

  2. Install the screen as shown in Figure 14 and that it slopes down toward the collection bags.

    Note: Make sure the screens snap into place and the tabs engage the bagger top.

    g005666

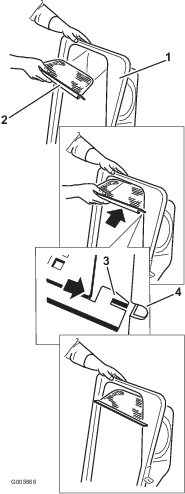

    Figure 14

    1. Bagger top
    2. Screen
    3. Screen tab
    4. Slot in bagger top

Installing the Bagger Top

Parts needed for this procedure:

Grass Bag2
Upper bagger tube1
Pivot bracket2
Bolt (5/16 x 1 inch)4
Nut (5/16 inch)4

  1. Install the bagger top to the bagger frame.

  2. Install the pivot brackets onto the pivot frame (Figure 12).

  3. Secure the bagger top to the pivot brackets with 4 bolts (5/16 x 1 inch) and 4 nuts (5/16 inch).

    Note: The bagger top is easier to install if 2 people work together.

    g300208

    Figure 15

    1. Bagger posts
    2. Bolts (5/16 x 1 inch)
    3. Nuts (5/16 inch)

  4. Lift the bagger top and install the bags by sliding the bag frame hooks onto the retaining brackets (Figure 16).

    g300378

    Figure 16

  5. Lower the bagger top onto the bags (Figure 17).

    g033030

    Figure 17

  6. Install the upper bagger tube by inserting the curved end into the opening in the bagger top.

    Note: Ensure that the flared end with the retention post is pointing down and froward in preparation to be mated with the Finishing Kit.

Installing the Chute

Parts needed for this procedure:

Chute1
Baffle (50-inch decks only)1

For 54-inch decks, go to Step 3.

  1. For 50-inch decks, remove the existing baffle from the machine (Figure 18).

    g299303

    Figure 18

  2. Install the new small baffle to the mower deck at the same location in the mower deck as the previously removed baffle (Figure 19).

    g299302

    Figure 19

    50-inch decks only

  3. Rotate the baffle until it makes contact with the mower deck.

    g300376

    Figure 20

  4. Tilt the chute and install the pin into the hole on the mower deck as shown in Figure 21.

    g300377

    Figure 21

  5. Pivot the chute back and toward the deck so the chute is flush with the mower deck.

    Note: Ensure that the retaining hook on the cute is out of the way so the chute opening mounts flush to the deck.

  6. On the top of the chute, engage the hook-shaped latch around the pivot rod of the deflector assembly and install the rod into the hole on the mower deck (Figure 22).

    g300375

    Figure 22

  7. Hook the flexible latch on the chute to the retaining clasp welded on the mower deck (Figure 23).

    g299268

    Figure 23

    1. Chute
    2. Retaining clasp
    3. Flexible latch

Connecting with the Discharge Tube

Parts needed for this procedure:

Discharge tube1

  1. Slide the curved end of the discharge tube into the opening in the bagger top (Figure 24).

    g010641

    Figure 24

    1. Discharge tube
    2. Opening in bagger top
    3. Discharge tube, flared end
    4. Peg
    5. Rubber strap

  2. Slide the flared end of the discharge tube over the end of the chute. Move the rubber retaining strap on the chute snaps over the peg on the discharge tube to secure it (Figure 24).

  3. After the bagger installation, install the wire onto the spark plug(s).

Operation

Note: Determine the left and right sides of the machine from the normal operating position.

Warning

To avoid personal injury, follow these procedures:

  • Become familiar with all operating and safety instructions in the Operator's Manual for the mower before using this attachment.

  • Never remove the discharge tube, bags, bagger top, or the chute while the engine is running.

  • Always shut the engine off and wait for all moving parts to stop before clearing an obstruction from the bagging system.

  • Never do maintenance or repairs while the engine is running.

Emptying the Grass Bags

Warning

Debris, such as leaves, grass, or brush can catch fire. A fire in the engine area can cause personal injury and property damage.

  • Keep the engine and muffler area free of debris accumulation.

  • Take care when opening the bagger cover to keep debris from falling onto the engine and muffler area.

  • Allow the machine to cool before storing it.

Be careful when lifting or handling a grass bag that is full. To empty the grass bags:

  1. Park the machine on a level surface and disengage the blade control switch.

  2. Move the motion control levers outward to the neutral lock position, shut off the engine, remove the key, set the parking brake and wait for all moving parts to stop before leaving the operating position.

  3. Open (raise) the bagger top (Figure 25).

    g005758

    Figure 25

  4. Compress debris into the bags. With both hands, lift up on the bag and unhook it from the retaining bracket. Empty the bag. Repeat the procedure for the other bag.

    g300218

    Figure 26

    g300217

    Figure 27

  5. Install the bags by sliding the bag frame hooks onto the retaining brackets.

  6. Lower the bagger top onto the bags.

Clearing Obstructions from the Bagger

Warning

When the bagger is in operation, the blower is rotating and can cut off or injure hands and fingers.

  • Before adjusting, cleaning, repairing and inspecting the blower, and before unclogging the chute, shut off the engine and wait for all moving parts to stop. Remove the key.

  • Use a stick or similar object, not your hands, to remove an obstruction from the blower and tube.

  • Keep your face, hands, feet, and any other part of your body or clothing away from concealed, moving, or rotating parts.

  1. Park the machine on a level surface and disengage the blade control switch.

  2. Move the motion control levers outward to the neutral lock position, stop the engine, remove the key, set the parking brake and wait for all moving parts to stop before leaving the operating position.

  3. Check the grass bags and empty them if they are full.

  4. Remove and separate the discharge tube and chute from the bagger top and mower. Using a stick or similar object, carefully remove and clear the obstruction from the mower, discharge tube, chute, and the bagger top.

  5. After you remove the obstruction, install the complete bagger system and resume operation.

Removing the Bagger

Caution

Failing to remove the front bagger weights and operating the machine without the bagger attachment may cause an unstable condition which could result in a loss of control.

  • Always remove the front weights when removing the bagger attachment.

  • Never operate the machine without the bagger attachment and the front weights still installed.

The bagger can be removed by repeating the Setup sections from all installed bagger related kits in reverse order. If weights are installed, always remove the front bagger weights when removing the bagger attachments.

Note: It is only necessary to remove the cutoff baffle when installing a mulching kit.

Using the Draw Bar

The bagger support bracket has a draw bar feature that can be used for towing.

  • Read and understand all the operating instructions of the machine.

  • When turning, slow down and observe the clearance.

  • Make wide turns and keep towed equipment clear of the towing vehicle.

  • Excessive draw bar pull may cause hydrostatic transmission failure.

    g300210

    Figure 28

    1. Bagger support bracket with draw bar

Operating Tips

Tips for Bagging

Remembering the Size

Remember that the machine is longer and wider with this attachment installed. By turning too sharply in confined places you may damage the attachment.

Trimming

Always trim with the left side of the mower. Do not trim with the right side of the mower because you could damage the bagger chute and discharge tube.

Cutting Height

Do not set the mower cutting height too low because long grass surrounding the mower can prevent air from getting under the mower and entering the bagging system. If not enough air gets under the mower, the bagging system will plug.

Cutting Frequency

Cut the grass often, especially when it grows rapidly. You will have to cut your grass twice if it gets excessively long.

Cutting Technique

For best lawn appearance, be sure to slightly overlap the mower into the previously cut area. This helps reduce the load on the engine and reduces the chance of plugging the chute and discharge tube.

Bagging Speed

Most often, you will bag with the mower throttle in the FAST position and drive at a normal ground speed. However, in extremely dry and dusty grass, you may want to slightly reduce the throttle speed and increase the ground speed of the mower. The bagging system may plug if you drive too fast and the engine speed gets too slow. On hills, it may be necessary to slow the mower ground speed. This helps maintain the engine speed and bagging efficiency. Mow downhill whenever possible.

Caution

As the bagger fills, extra weight is added to the back of the machine. If you stop and start the machine suddenly on hills, you may lose steering control or the machine may tip.

  • Do not start or stop suddenly when going uphill or downhill. Avoid uphill starts.

  • If you do stop the machine when going uphill, disengage the blade control. Then back down the hill using a slow speed.

  • Avoid sudden turns or rapid speed changes on slopes.

  • Never operate the machine without the bagger attachment and the front weights still installed.

Bagging Long Grass

Excessively long grass is heavy and may not be propelled completely into the grass bags. If this happens, the discharge tube and chute may plug. To avoid plugging the bagging system, mow the grass at a high height of cut, then lower the mower to your normal cutting height and repeat the bagging process.

Bagging Wet Grass

Always try to cut grass when it is dry because your lawn will have a neat appearance. If you must cut wet grass, use the conventional side discharge feature of the mower. Several hours later, when the clippings are dry, install the complete bagger attachment and vacuum up the grass clippings.

Signs of Plugging

As you are bagging, a small amount of grass clippings normally blow out the front of the mower. An excessive amount of clippings blowing out indicates that the bags are full or the system is plugged.

Maintenance

Note: Determine the left and right sides of the machine from the normal operating position.

Recommended Maintenance Schedule(s)

Maintenance Service IntervalMaintenance Procedure
After the first 10 hours
  • Inspect the bagger.
    		•
    Before each use or daily
  • Clean the bagger.
    		•
    Before storage
  • Inspect the bagger.
  • Clean the bagger.
    		•

    Warning

    If you leave the key in the ignition switch, someone could accidently start the engine and seriously injure you or other bystanders.

    Remove the key from the ignition and disconnect the wire from the spark plug before you do any maintenance. Set the wire aside so that it does not accidentally contact the spark plug.

    Warning

    Engines can become hot when they are operating. Burns can occur from contacting hot surfaces.

    Allow engines, especially the muffler, to cool before touching.

    Warning

    Debris, such as leaves, grass, or brush can catch fire. A fire in the engine area can cause personal injury and property damage.

    • Keep the engine and muffler area free of debris accumulation.

    • Take care when opening the bagger cover to keep debris from falling onto the engine and muffler area.

    • Allow the machine to cool before storing it.

    Inspecting the Bagger Attachment

    Maintenance Service IntervalMaintenance Procedure
    After the first 10 hours
  • Inspect the bagger.
    		•
    Before storage
  • Inspect the bagger.
    		•

    1. Check the chute, discharge tube, and the bagger top. Replace these parts if they are cracked or broken.

    2. Tighten all nuts, bolts, and screws.

    3. Inspect all fasteners and latches; replace any missing or damaged.

    4. Inspect the grass bags for deterioration.

      Warning

      You or bystanders could be severely injured by flying debris or thrown objects that may pass through torn, worn, or deteriorated grass bags.

      • Check the grass bags for holes, rips, wear, and other deterioration.

      • Do not wash the grass bags.

      • If the bag has deteriorated, install new grass bags supplied by the manufacturer of this bagger attachment.

    Inspecting the Mower Blades

    Inspect the mower blades regularly and whenever a blade strikes a foreign object.

    If the blades are badly worn or damaged, install new blades. Refer to your mower or mower Operator's Manual for complete blade maintenance.

    Cleaning the Bagger Attachment

    Maintenance Service IntervalMaintenance Procedure
    Before each use or daily
  • Clean the bagger.
    		•
    Before storage
  • Clean the bagger.
    		•

    1. After each use, remove and wash the inside and outside of the bagger top, discharge tube, chute, and the underside of the mower, using water sprayed from a garden hose. Use a mild detergent to remove stubborn dirt.

    2. Make sure you remove matted grass from all parts.

    3. Flush the grass bags with water using garden hose to remove any debris.

    4. After washing, let all of the parts dry thoroughly.

    Storage

    Storing the Bagger Attachment

    Note: To prevent rapid deterioration of the bag material, store the bags where they will dry completely after each use.

    1. Clean the bagger attachment; refer to Cleaning the Bagger Attachment.

    2. Inspect the bagger attachment for damage; refer to Inspecting the Bagger Attachment.

    3. Make sure the grass bags are empty and thoroughly dry.

    4. Store the bagger in a clean, dry place, out of direct sunlight. This protects the plastic parts and extends the life of the bagger. If you must store the bagger outside, cover it with a weatherproof cover.
