Tub Service Kit

Mud Buggy

Model No. 139-7216-Serial No. and Up

Installation

  1. Park the machine on a level surface, engage the parking brake, lower the hopper, shut off the engine, and remove the key.

  2. Remove the existing tub.

  3. Secure the new tub to the frame using 4 bolts, 4 washers, and 4 nuts.

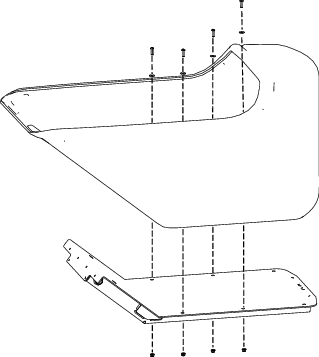

    g322995

    Figure 1

  4. Using the new tub as a template, mark and drill 2 holes (9/16 inch).

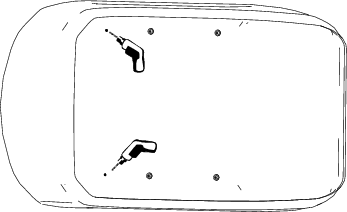

    g322994

    Figure 2

  5. Install the remaining hardware to secure the tub to the frame.

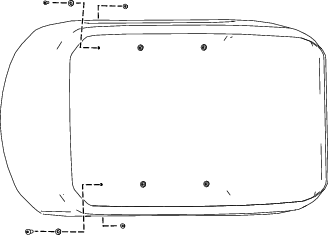

    g322996

    Figure 3

  6. Torque the bolt to 37 to 45 N∙m (27 to 33 ft-lb).
