Rear Attachment Receiver

1. Park the machine on a level surface.

2. Engage the parking brake.

3. Shut off the engine and remove the key.

Figure 1

Parts needed for this procedure:

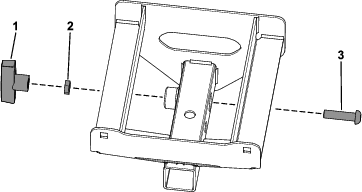

1. Secure the T-handle to the rear attachment receiver using the jam nut and button-head bolt (Figure 2).



   Figure 2

   1. T-handle
   2. Jam nut
   3. Button-head bolt

2. Secure the rear attachment receiver to the bed using 4 carriage bolts (3/8 x 1 inch) and 4 locknuts (3/8 inch) as shown in Figure 3.

3. Torque the 4 locknuts (3/8 inch) to 28 N∙m (21 ft-lb).



   Figure 3

   1. Locknut (3/8 inch)
   2. Carriage bolt (3/8 x 1 inch)
