Frame Kit

1. Park the machine on a level surface.

2. Engage the parking brake.

3. Shut off the engine and remove the key.

Parts needed for this procedure:

Use 4 hex-head bolts (5/16 inch) and 4 nuts (5/16 inch) to secure the engine mounts to the new frame.

Figure 1

1. Nut (5/16 inch)
2. Engine mount
3. Hex-head bolt (5/16 inch)

To remove the existing frame and install the new frame, refer to the instructions in the traction unit Service Manual for removing and installing components that connect to the frame, including the rear steering fork, battery, engine, and fuel tank, among other components.

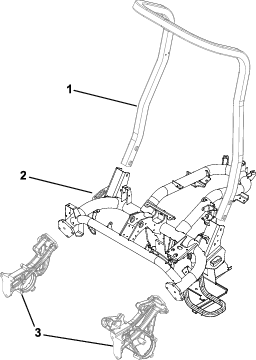

Figure 2 shows an overview of the machine frame.

Figure 2

1. Roll bar
2. Frame
3. Side castings
