CE Kit

If the OEM belt cover is installed, remove it as follows:

1. Rotate the bolt that secures the belt cover to the deck counterclockwise to loosen it (Figure 2).



   Figure 2

   1. Bolt (retained to the belt cover)
   2. Belt cover
   3. Cover-mounting bracket
   4. Flange nut (3/8 inch)
   5. Carriage bolt (3/8 x 7/8 inch)

2. Remove the OEM belt cover and bolt from the mounting bracket (Figure 2).

Note: Retain the OEM belt cover and bolt for installation when operating the mower with the blower accessory removed.

1. Remove the 2 bolts and 2 flange nuts that secure the cover mounting bracket to the deck (Figure 2).

2. Remove the bracket.

   Note: Retain the OEM cover mounting bracket, bolts, and flange nut for installation when operating the mower with the blower accessory removed.

Remove the locking cotter pin from the existing lower support rod and remove it (Figure 3).

Note: Retain the locking cotter pin and lower support rod for installation if you operate the machine with the blower accessory removed.

Figure 3

1. Existing lower support rod
2. Locking cotter pin

If the blower kit is installed on the machine, remove the belt cover installed from blower and drive kit as follows:

1. Remove the thumbscrew that secures the belt cover (Figure 4).



   Figure 4

   1. Thumbscrew
   2. Belt cover

2. Move the cover outward until the edge of the cover clears the hooks in the deck flanges (Figure 4).

3. Remove the cover from the deck.

   Note: Discard the thumbscrew.

1. Remove the 2 nuts and 2 washers that secure the OEM shaft cover to the blower assembly (Figure 5).



   Figure 5

   122 cm Mower Deck Shown

   1. Nut
   2. Washer
   3. OEM shaft cover
   4. Bolt

2. Remove and discard the OEM shaft cover (Figure 5).

1. Align the holes of the CE pulley guard to the hole in the forward deflector bracket and the outboard hole in the forward deck flange (Figure 6).

   Note: The CE pulley bracket wraps around the outboard edge of the deflector bracket

2. Align the CE belt-cover bracket (if not previously installed) to the holes at the rear side of the forward deck flange (Figure 6).

3. Secure the CE pulley guard and the belt cover bracket to the forward deck flange at the outboard hole using 1 hex-head bolt (1/4 x 1 inch) and 1 locknut (1/4 inch) as shown in Figure 6.

4. Secure the belt-cover bracket to the forward deck flange at the inboard hole using 1 carriage bolt (1/4 x 3/4 inch) and 1 locknut (1/4 inch) as shown in Figure 6.

5. Align the hole in the rear flange of the CE belt-cover bracket with the hole in the deck where you removed the OEM belt cover bracket in step 1 of Removing the Cover Mounting Bracket; refer to Figure 6.

6. Align the clip nut with the hole in the top of the CE belt-cover bracket, and push the clip nut onto the bracket (Figure 6).

7. Loosely install the rear guard to the mower deck using 1 hex-head bolt (3/8 x 1 inch) and 1 flange nut (3/8 inch) as shown in Figure 6.

   Tighten the fasteners after you install the blower; refer to Installing the Blower.

   Important: This step applies to 122 cm mower decks only.

Figure 6

1. CE pulley guard
2. Belt-cover bracket
3. Rear guard (122 cm mower deck only)
4. Hex-head bolt (3/8 x 1 inch)
5. Clip nut
6. Flange nut (3/8 inch)
7. Locknut (1/4 inch)
8. Deck flange (forward)
9. Carriage bolt (1/4 x 3/4 inch)
10. Flange-head bolt (1/4 x 1 inch)

1. Align the holes of the CE pulley guard to the hole in the forward deflector bracket and the outboard hole in the forward deck flange (Figure 7).

   Note: The CE pulley bracket wraps around the outboard edge of the deflector bracket

2. Align the CE belt-cover bracket (if not previously installed) to the holes at the rear side of the forward deck flange (Figure 7).

3. Secure the CE pulley guard and the belt-cover bracket (if not previously installed) to the forward deck flange at the outboard hole using 1 hex-head bolt (1/4 x 1 inch) and 1 locknut (1/4 inch) as shown in Figure 7.

4. Secure the belt-cover bracket to the forward deck flange at the inboard hole using 1 carriage bolt (1/4 x 3/4 inch) and 1 locknut (1/4 inch) as shown in Figure 7.

5. Align the clip nut with the hole in the top of the CE belt-cover bracket, and push the clip nut onto the bracket (Figure 7).



   Figure 7

   1. CE pulley guard
   2. Belt-cover bracket (if not previously installed)
   3. Clip nut
   4. Locknut (1/4 inch)
   5. Deck flange (forward)
   6. Carriage bolt (1/4 x 3/4 inch)
   7. Flange-head bolt (1/4 x 1 inch)

If the blower assembly is installed, remove it from the mower deck as follows:

1. Pull the spring loaded idler pulley away from the fixed spring post, and remove the belt from the idler pulley (Figure 9).



   Figure 9

   1. Latch pin (locking position)
   2. Chute bracket
   3. Blower assembly
   4. Spring hook ends
   5. Idler pivot bracket
   6. Belt (aligned to the idler pulley)
   7. Idler spring post
   8. Spring
   9. Fixed spring post

2. Move the idler pivot bracket toward the fixed spring post and remove the hook of the spring from the idler spring post (Figure 9).

3. Route the belt beneath the idler pulley (Figure 10).



   Figure 10

   1. Blower pulley
   2. Idler/pulley
   3. Blower belt
   4. Drive pulley
   5. Idler/tension pulley

4. Remove the belt from drive pulley (Figure 10).

5. Move the blower latch pin to the open position and swing the blower outward (Figure 9).

6. Remove the blower and belt from the mower deck.

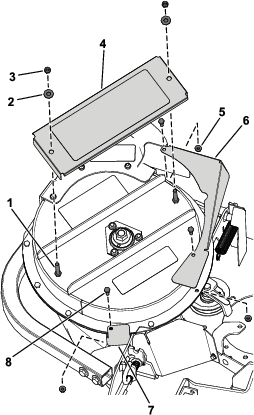

1. Align the lower CE lower guard to the blower-chute bracket as shown in Figure 11.



   Figure 11

   1. Hole 1
   2. Hole 2
   3. Hole 3
   4. Hole 4
   5. CE lower guard
   6. Washer
   7. Hex-head bolt (1/4 x 3/4 inch)
   8. Locknut (1/4 inch)
   9. Rivet tails
   10. Blower-chute bracket
   11. Drill bit 7 mm (0.28 inch)

2. Align hole 2 and hole 4 of the lower CE lower guard to the rivet tails protruding through the blower-chute bracket (Figure 11).

   Note: Ensure that the flange of the CE lower guard (the flange with the holes) is flat against the blower-chute bracket.

3. Mark the outline of hole 1 and hole 3 of the CE lower guard on the blower-chute bracket, and remove the CE guard (Figure 11).

4. Locate the marks on the blower-chute bracket, and center-punch the locations.

5. Drill 7 mm (0.28 inch) holes in the blower-chute bracket at the 2 center-punch marks (Figure 11).

Note: Install the CE lower guard with the blower assembly removed from the mower deck; refer to the E-Z Vac™ Blower and Drive Kit Installation Instructions.

1. Align the CE lower guard to the blower-chute bracket (Figure 11).

2. Align hole 2 and hole 4 of the CE lower guard to the rivet tails protruding through the blower-chute bracket (Figure 11).

3. Secure the CE lower guard to the blower with 2 hex-head bolts (1/4 x 3/4 inch), 2 washers, and 2 locknuts (1/4 inch) through hole 1 and hole 4 of the CE guard (Figure 11).

If you removed the blower, install it to the mower deck as follows:

Note: Refer to the Bagger Kit (Toro Model 78463) manual.

1. Align the blower belt around the pulley of the blower (Figure 10).

2. Align the pivot pin on the blower with the pivot pin hole in the deck and lower the blower onto the deck.

3. Open the blower latch pin, close the blower to the deck, and secure the latch pin to the chute bracket (Figure 9).

   Note: Ensure that the latch pin extends through the hole in chute bracket and the CE pulley guard.

4. Temporarily route the belt beneath the idler pulley (Figure 10).

5. Route the belt around the drive pulley (Figure 10).

6. Move the idler/tension pulley toward the fixed spring post, and install the spring by aligning the spring hook on to the idler spring post (Figure 9).

7. Pull the spring loaded idler/tension pulley away from the fixed spring post, and route the belt around the idler pulley (Figure 10).

1. Assemble the washer (5/16 x 3/4 inch) to the hex-head bolt (1/4 x 3/4 inch) as shown in Figure 12.



   Figure 12

   132 cm Mower Deck Shown

   1. Washer (5/16 x 3/4 inch)
   2. Hex-head bolt (1/4 x 3/4 inch)
   3. Plastic plug
   4. Belt cover
   5. Washer (1/4 x 1/2 inch)
   6. Retainer
   7. Clip nut
   8. CE belt-cover bracket

2. Insert the bolt and washer through the hole in the top of the belt cover from the OEM blower and drive kit (Figure 12).

3. From the bottom of the belt cover, assemble the washer (1/4 x 1/2 inch) and retainer over the hex-head bolt threads (Figure 12).

   Ensure that the bolt head and washer are positioned flush with the upper surface of the belt cover and the washer and retainer are flush with the bottom surface of the cover.

1. Unlatch the blower and pull it out partially.

2. Align the belt cover with notches in the deck flanges (Figure 12).

3. Align the hex-head bolt in the cover with the clip nut on the belt-cover bracket.

4. Secure the belt cover to the cover bracket with the hex-head bolt (Figure 12).

5. Install the plastic plug into the cover (Figure 12).

6. Open the blower latch pin, close the blower to the deck, and secure the latch pin to the chute bracket.

Secure the 2 height-of-cut cover plates to the 102 to 140 mm ranges of the height-of-cut bracket using 2 carriage bolts (1/4 x 3/4 inch) and 2 locknuts (1/4 inch) as shown in Figure 14 and Figure 15.

Figure 14

1. Height-of-cut bracket
2. Height-of-cut cover plate (122 cm decks)
3. Locknut (1/4 inch)
4. Carriage bolt (1/4 x 3/4 inch)

Figure 15

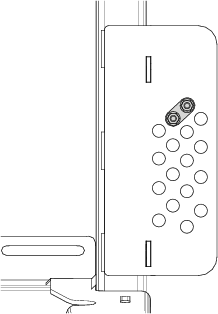

Installed View

Secure the 2 height-of-cut cover plates to the 133 mm and 140 mm ranges of the height-of-cut bracket using 2 carriage bolts (1/4 x 3/4 inch) and 2 locknuts (1/4 inch) as shown in Figure 16 and Figure 17.

Figure 16

1. Height-of-cut bracket
2. Locknut (1/4 inch)
3. Height-of-cut cover plate (132 cm and 152 cm decks)
4. Carriage bolt (1/4 x 3/4 inch)

Figure 17

Installed View
