Under Seat Storage Kit

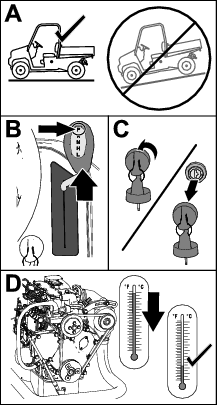

1. Park the machine on a level surface (Figure 1).



   Figure 1

2. Shift the transmission lever to the P (Park) position.

3. Shut off the engine and remove the key.

4. Allow the engine to cool.

Parts needed for this procedure:

1. Lift the back of the seat bottom, and rotate it forward (Figure 2).



   Figure 2

2. Assemble the storage tray into the seat-support frame (Figure 3).



   Figure 3

   1. Seat-support frame
   2. Storage tray

3. If you are installing 2 storage trays onto a 4 passenger machine, repeat step 2 at the other seat.



   Figure 4

   1. Storage trays (4 passenger machine)

4. Rotate the seat bottom down and against the seat-support frame (Figure 5).



   Figure 5
