Draw Bar Hitch Kit

Field Pro 6040

Model No. 08904-Serial No. and Up

Warning

CALIFORNIA

Proposition 65 Warning

Use of this product may cause exposure to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Safety

Safety and Instructional Decals

Graphic

Safety decals and instructions are easily visible and are located near areas of potential danger. Replace every damaged or missing decal.
decal133-8061

133-8061

decal147-3735

147-3735

  1. Maximum draw bar pull is 181 kg (400 lb).
  2. Read the Operator’s Manual.

Installation

Preparing the Machine

  1. Park the machine on a level surface.

  2. Engage the parking brake.

  3. Shut off the engine and remove the key.

  4. Wait for all moving parts to stop and machine components to cool.

  5. Chock the wheels.

Installing the Draw Bar Hitch Kit

Parts needed for this procedure:

Draw bar hitch1
Hitch pin with hairpin cotter2

  1. Align the draw bar hitch with the top and bottom holes on the rear attachment assembly (Figure 1).

    g387011

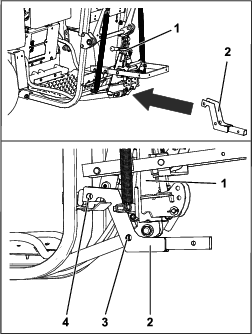

    Figure 1

    1. Rear attachment assembly
    2. Draw bar hitch
    3. Bottom hole
    4. Top hole

  2. Insert 2 hitch pins through the top and bottom holes and secure with 2 hairpin cotters (Figure 2).

    g387012

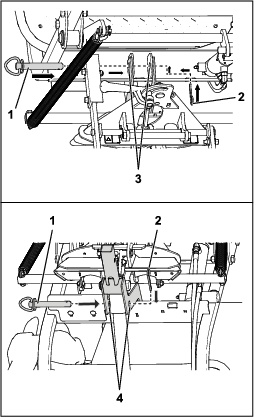

    Figure 2

    1. Hitch pin
    2. Hairpin cotter
    3. Top hole
    4. Bottom hole
