Introduction

This rotary-blade, riding lawn mower is intended to be used by residential homeowners or hired operators. It is designed primarily for cutting grass on well-maintained lawns on residential or commercial properties. It is not designed for cutting brush or for agricultural uses.

Read this information carefully to learn how to operate and maintain your product properly and to avoid injury and product damage. You are responsible for operating the product properly and safely.

You may contact Toro directly at www.Toro.com for product safety and operation training materials, accessory information, help finding a dealer, or to register your product.

Whenever you need service, genuine Toro parts, or additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and serial numbers of your product ready. Figure 1 identifies the location of the model and serial numbers on the product. Write the numbers in the space provided.

g207191

Write the product model and serial numbers in the space below:

This manual identifies potential hazards and has safety messages identified by the safety-alert symbol (Figure 2), which signals a hazard that may cause serious injury or death if you do not follow the recommended precautions.

g000502

This manual uses 2 words to highlight information. Important calls attention to special mechanical information and Note emphasizes general information worthy of special attention.

It is a violation of California Public Resource Code Section 4442 or 4443 to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the engine is equipped with a spark arrester, as defined in Section 4442, maintained in effective working order or the engine is constructed, equipped, and maintained for the prevention of fire.

Go to www.Toro.com to view specifications on your mower model.

Please refer to the engine manufacturer’s information included with the machine.

Warning

CALIFORNIA

Proposition 65 Warning

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Safety

This machine has been designed in accordance with ANSI B71.1-2012.

General Safety

This product is capable of amputating hands and feet and of throwing objects. Always follow all safety instructions to avoid serious personal injury.

Using this product for purposes other than its intended use could prove dangerous to you and bystanders.

  • Read and understand the contents of this Operator’s Manual before you start the engine. Ensure that everyone using this product knows how to use it and understands the warnings.

  • Do not put your hands or feet near moving components of the machine.

  • Do not operate the machine without all guards and other safety protective devices in place and working on the machine.

  • Keep clear of any discharge opening. Keep bystanders a safe distance away from the machine.

  • Keep children out of the operating area. Never allow children to operate the machine.

  • Stop the machine and shut off the engine before servicing, fueling, or unclogging the machine.

Improperly using or maintaining this machine can result in injury. To reduce the potential for injury, comply with these safety instructions and always pay attention to the safety-alert symbol, which means Caution, Warning, or Danger—personal safety instruction. Failure to comply with these instructions may result in personal injury or death.

You can find additional items of safety information in their respective sections throughout this manual.

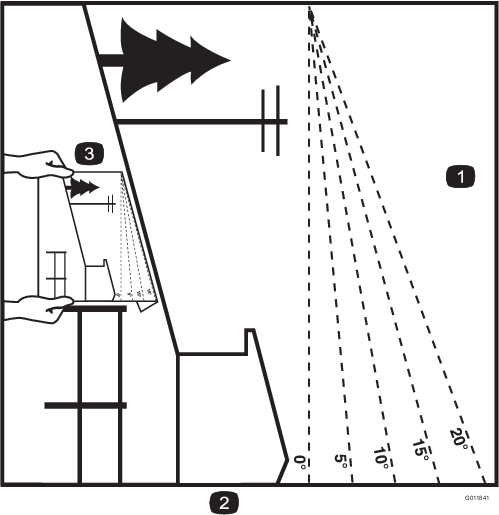

Slope Indicator

g011841

Safety and Instructional Decals

Graphic

Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing.

decaloemmarkt
decal117-2718
decal117-1194
decal121-2989b
decalbatterysymbols
decal130-0731
decal130-0765
decal130-0654
decal132-0872
decal132-0869
decal133-5198
decal133-9263
decal136-4243
decal136-4244
decal136-4245
decal136-5596
decal136-9186

Product Overview

g207189

Become familiar with all controls in Figure 5 and Figure 6 before you start the engine and operate the machine.

g188738
g188776

Fuel Gauge

The fuel gauge displays the amount of fuel in the tank (Figure 6).

Throttle Control

The throttle controls the engine speed, and it has a continuous-variable setting from the SLOW to FAST position (Figure 5).

Choke Control

Use the choke control to start a cold engine. Pull the choke control up to engage it. Push down on the choke control to disengage it.

Hour Meter

The hour meter records the number of hours the engine has operated. It operates when the engine is running. Use these times for scheduling regular maintenance (Figure 5).

Motion-Control Levers

The motion-control levers are speed-sensitive controls of independent wheel motors. Moving a lever forward or backward turns the wheel on the same side forward or in reverse; wheel speed is proportional to the amount the lever is moved. Move the control levers outward from the center to the NEUTRAL-LOCK position and exit the machine (Figure 4). Always position the motion-control levers into the NEUTRAL-LOCK position when you stop the machine or leave it unattended.

Parking-Brake Lever

The parking-brake lever is located on left side of the console (Figure 4). The brake lever engages a parking brake on the drive wheels.

To engage the parking brake, pull up the lever until it latches into the detent slot.

To disengage the parking brake, pull the lever out of the detent slot and toward you, then push it down.

Foot Pedal Deck-Lift System

The foot pedal deck-lift system allows you to lower and raise the deck from the seated position. You can use the foot pedal to lift the deck briefly to avoid obstacles or lock the deck in the highest height of cut or transport position (Figure 4).

Smart Speed

The Smart Speed™ Control-System lever, located below the operating position, gives you a choice to drive the machine at 3 speed ranges— trim, tow, and mow (Figure 26).

12 V Power Point

Use the power point to power 12 V accessories (Figure 5).

Important: When not using the 12 V power point, insert the rubber plug to prevent damage to the power point.

Ignition Switch

Use this switch to start the mower engine. It has 3 positions: START, RUN, and OFF.

Blade-Control Switch (Power Takeoff)

The blade-control switch (PTO) engages and disengages power to the mower blades (Figure 5).

Height-of-Cut Lever

The height-of-cut lever works with the foot pedal to lock the deck in a specific cutting height. Only adjust the height of cut while machine is not moving (Figure 4).

Attachments/Accessories

A selection of Toro approved attachments and accessories is available for use with the machine to enhance and expand its capabilities. Contact your Authorized Service Dealer or Distributor or go to www.Toro.com for a list of all approved attachments and accessories.

Operation

Note: Determine the left and right sides of the machine from the normal operating position.

Before Operation

Before Operation Safety

General Safety

  • Never allow children or untrained people to operate or service the machine. Local regulations may restrict the age of the operator. The owner is responsible for training all operators and mechanics.

  • Become familiar with the safe operation of the equipment, operator controls, and safety signs.

  • Know how to stop the machine and shut off the engine quickly.

  • Check that operator-presence controls, safety switches, and shields are attached and functioning properly. Do not operate the machine unless they are functioning properly.

  • Before mowing, always inspect the machine to ensure that the blades, blade bolts, and cutting assemblies are in good working condition. Replace worn or damaged blades and bolts in sets to preserve balance.

  • Inspect the area where you will use the machine and remove all objects that the machine could throw.

  • Evaluate the terrain to determine the appropriate equipment and any attachments or accessories required to operate the machine properly and safely.

Fuel Safety

  • To avoid personal injury or property damage, use extreme care in handling fuel. Fuel vapors are flammable and explosive.

  • Extinguish all cigarettes, cigars, pipes, and other sources of ignition.

  • Use only an approved fuel container.

  • Do not remove the fuel cap or add fuel to the fuel tank while the engine is running or while hot.

  • Do not refuel the machine indoors.

  • Do not store the machine or fuel container where there is an open flame, spark, or pilot light, such as on a water heater or on other appliances.

  • Do not fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground, away from your vehicle before filling.

  • Remove the equipment from the truck or trailer and refuel it while it is on the ground. If this is not possible, then refuel from a portable container rather than a fuel-dispenser nozzle.

  • Do not operate the machine without the entire exhaust system in place and in proper working condition.

  • Keep the fuel-dispenser nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

  • If you spill fuel on your clothing, change your clothing immediately. Wipe up any fuel that spills.

  • Never overfill the fuel tank. Replace the fuel cap and tighten it securely.

  • Store fuel in an approved container and keep it out of the reach of children. Never buy more than a 30-day supply of fuel.

  • Do not fill the fuel tank completely full. Add fuel to the fuel tank until the level is 6 to 13 mm (1/4 to 1/2 inch) below the bottom of the filler neck. This empty space in the tank allows fuel to expand.

    • Avoid prolonged breathing of vapors.

    • Keep your face away from the nozzle and fuel tank opening.

    • Avoid contact with skin; wash off spills with soap and water.

Recommended Fuel

  • For best results, use only clean, fresh (less than 30 days old), unleaded gasoline with an octane rating of 87 or higher ((R+M)/2 rating method).

  • Ethanol: Gasoline with up to 10% ethanol (gasohol) or 15% MTBE (methyl tertiary butyl ether) by volume is acceptable. Ethanol and MTBE are not the same. Gasoline with 15% ethanol (E15) by volume is not approved for use. Never use gasoline that contains more than 10% ethanol by volume, such as E15 (contains 15% ethanol), E20 (contains 20% ethanol), or E85 (contains up to 85% ethanol). Using unapproved gasoline may cause performance problems and/or engine damage which may not be covered under warranty.

  • Do not use gasoline containing methanol.

  • Do not store fuel either in the fuel tank or fuel containers over the winter unless you use a fuel stabilizer.

  • Do not add oil to gasoline.

Using Stabilizer/Conditioner

Use a fuel stabilizer/conditioner in the machine to provide the following benefits:

  • Keeps fuel fresh during storage of 90 days or less (drain the fuel tank when storing the machine for more than 90 days)

  • Cleans the engine while it runs

  • Eliminates gum-like varnish buildup in the fuel system, which causes hard starting

    Important: Do not use fuel additives containing methanol or ethanol.

    Add the correct amount of fuel stabilizer/conditioner to the fuel.

    Note: A fuel stabilizer/conditioner is most effective when mixed with fresh fuel. To minimize the chance of varnish deposits in the fuel system, use fuel stabilizer at all times.

Filling the Fuel Tank

  1. Park the machine on a level surface.

  2. Engage the parking brake.

  3. Shut off the engine and remove the key.

  4. Clean around the fuel-tank cap.

  5. Fill the fuel tank until the fuel gauge reads at the full mark (Figure 7).

    Note: Do not fill the fuel tank completely full. The empty space in the tank allows the fuel to expand.

    g197123

Checking the Engine-Oil Level

Before you start the engine and use the machine, check the oil level in the engine crankcase; refer to Checking the Engine-Oil Level.

Breaking in a New Machine

New engines take time to develop full power. Mower decks and drive systems have higher friction when new, placing additional load on the engine. Allow 40 to 50 hours of break-in time for new machines to develop full power and best performance.

Think Safety First

Please read all safety instructions and symbols in the safety section. Knowing this information could help you or bystanders avoid injury.

Danger

Operating the machine on wet grass or steep slopes can cause sliding and loss of control.

  • Do not operate on slopes greater than 15 degrees.

  • Reduce speed and use extreme caution on slopes.

  • Do not operate the machine near water.

Danger

Wheels dropping over edges can cause rollovers, which may result in serious injury, death, or drowning.

Do not operate the machine near drop-offs.

g000513

Caution

This machine produces sound levels in excess of 85 dBA at the operator’s ear and can cause hearing loss through extended periods of exposure.

Wear hearing protection when operating this machine.

Use protective equipment for your eyes, ears, hands, feet, and head.

g009027

Using the Safety-Interlock System

Warning

If the safety-interlock switches are disconnected or damaged, the machine could operate unexpectedly, causing personal injury.

  • Do not tamper with the interlock switches.

  • Check the operation of the interlock switches daily and replace any damaged switches before operating the machine.

Understanding the Safety-Interlock System

The safety-interlock system is designed to prevent the engine from starting unless:

  • The blade-control switch (PTO) is disengaged.

  • The motion-control levers are in the NEUTRAL-LOCK position.

  • The parking brake is engaged.

The safety-interlock system also is designed to shut off the engine whenever the control levers are out of the NEUTRAL-LOCK position and you rise from the seat.

Testing the Safety-Interlock System

Maintenance Service IntervalMaintenance Procedure
Before each use or daily
  • Check the safety-interlock system.
  • Test the safety-interlock system before you use the machine each time. If the safety system does not operate as described below, have an Authorized Service Dealer repair the safety system immediately.

    1. Sit on the seat, engage the parking brake, and move the blade-control switch (PTO) to the ON position. Try starting the engine; the engine should not crank.

    2. Sit on the seat, engage the parking brake, and move the blade-control switch (PTO) to the OFF position. Move either motion-control lever (out of the NEUTRAL-LOCK position). Try starting the engine; the engine should not crank. Repeat for other control lever.

    3. Sit on the seat, engage the parking brake, move the blade-control switch (PTO) to the OFF position, and move the motion-control levers to the NEUTRAL-LOCK position. Start the engine. While the engine is running, release the parking brake, engage the blade-control switch (PTO), and rise slightly from the seat; the engine should shut off.

    4. Sit on the seat, engage the parking brake, move the blade-control switch (PTO) to the OFF position, and move the motion-control levers to NEUTRAL-LOCK position. Start the engine. While the engine is running, center either motion-control lever and move it forward or reverse; the engine should shut off. Repeat for other motion-control lever.

    5. Sit on the seat, disengage the parking brake, move the blade-control switch (PTO) to the OFF position, and move the motion-control levers to NEUTRAL-LOCK position. Try starting the engine; the engine should not crank.

    Positioning the Seat

    The seat moves forward and backward. Position the seat where you have the best control of the machine and are most comfortable.

    To adjust, move the lever sideways to unlock the seat (Figure 10).

    g027632

    Adjusting the MyRide™ Suspension System

    The MyRide™ suspension system adjusts to provide a smooth and comfortable ride. Adjusting the rear 2-shock assemblies is the easiest and quickest adjustment for changing the suspension system. Position the suspension system where you are most comfortable.

    Adjusting the Rear-Shock Assemblies

    The slots for the rear-shock assemblies have detent positions for reference. You can position the rear-shock assemblies anywhere in the slot, not just in the detent positions.

    The following graphic shows the position for a soft or firm ride and the different detent positions (Figure 11).

    g195744

    Note: Ensure that the left and right rear-shock assemblies are always adjusted to the same positions.

    Adjust the rear-shock assemblies (Figure 12).

    g207187g195745

    Adjusting the Motion-Control Levers

    Adjusting the Height

    You can adjust the motion-control levers higher or lower for maximum comfort (Figure 13).

    g027252

    Adjusting the Tilt

    You can adjust the motion-control levers forward or rearward for your comfort.

    1. Loosen the upper bolt holding the control lever to the control-arm shaft.

    2. Loosen the lower bolt just enough to pivot the control lever forward or rearward (Figure 13).

    3. Tighten both bolts to secure the control lever in the new position.

    4. Repeat the adjustment for the other control lever.

    During Operation

    During Operation Safety

    General Safety

    • The owner/operator can prevent and is responsible for accidents that may cause personal injury or property damage.

    • Wear appropriate clothing, including eye protection; slip-resistant, substantial footwear; and hearing protection. Tie back long hair and do not wear jewelry.

    • Do not operate the machine while ill, tired, or under the influence of alcohol or drugs.

    • Never carry passengers on the machine and keep bystanders and pets away from the machine during operation.

    • Operate the machine only in good visibility to avoid holes or hidden hazards.

    • Avoid mowing on wet grass. Reduced traction could cause the machine to slide.

    • Ensure that all drives are in neutral, the parking brake is engaged, and you are in the operating position before you start the engine.

    • Keep your hands and feet away from the cutting units. Keep clear of the discharge opening at all times.

    • Look behind and down before backing up to be sure of a clear path.

    • Use care when approaching blind corners, shrubs, trees, or other objects that may obscure your vision.

    • Do not mow near drop-offs, ditches, or embankments. The machine could suddenly roll over if a wheel goes over the edge or if the edge gives way.

    • Stop the blades whenever you are not mowing.

    • Stop the machine and inspect the blades after striking an object or if there is an abnormal vibration in the machine. Make all necessary repairs before resuming operation.

    • Slow down and use caution when making turns and crossing roads and sidewalks with the machine. Always yield the right-of-way.

    • Disengage the drive to the cutting unit and shut off the engine before adjusting the height of cut (unless you can adjust it from the operating position).

    • Never run an engine in an area where exhaust gases are enclosed.

    • Never leave a running machine unattended.

    • Before leaving the operating position (including to empty the catchers or to unclog the chute), do the following:

      • Stop the machine on level ground.

      • Disengage the power take-off and lower the attachments.

      • Engage the parking brake.

      • Shut off the engine and remove the key.

      • Wait for all moving parts to stop.

    • Do not operate the machine when there is the risk of lightning.

    • Do not use the machine as a towing vehicle.

    • Do not change the governor speed or overspeed the engine.

    • Use accessories and attachments approved by Toro only.

    Slope Safety

    • Establish your own procedures and rules for operating on slopes. These procedures must include surveying the site to determine which slopes are safe for machine operation. Always use common sense and good judgment when performing this survey.

    • Slopes are a major factor related to loss-of-control and tip-over accidents, which can result in severe injury or death. Operating the machine on any slope requires extra caution.

    • Operate the machine at a lower speed when you are on a slope.

    • If you feel uneasy operating the machine on a slope, do not do it.

    • Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

    • Choose a low ground speed so you will not have to stop or shift while on a slope.

    • A rollover can occur before the tires lose traction.

    • Avoid operating the machine on wet grass. Tires may lose traction; regardless if the brakes are available and functioning.

    • Avoid starting, stopping, or turning the machine on a slope.

    • Keep all movement on slopes slow and gradual. Do not suddenly change the speed or direction of the machine.

    • Do not operate the machine near drop-offs, ditches, embankments, or bodies of water. The machine could suddenly roll over if a wheel goes over the edge or the edge caves in. Establish a safety area between the machine and any hazard (2 machine widths).

    • A 2-post ROPS (Rollover Protection System) is available for the machine as an accessory. A ROPS is recommended if you will be mowing next to drop-offs, near water, or on steep banks which could result in a rollover. Contact an Authorized Service Dealer for more details. The California Code of Regulations requires ROPS (if available) on all mowers used commercially effective March 1, 2011.

    Operating the Parking Brake

    Always engage the parking brake when you stop the machine or leave it unattended.

    Engaging the Parking Brake

    Warning

    The parking brake may not hold the machine parked on a slope and could cause personal injury or property damage.

    Do not park on slopes unless the wheels are chocked or blocked.

    To engage the parking brake, pull up the parking brake until it latches into the detent slot (Figure 14).

    g188778

    Disengaging the Parking Brake

    To disengage the parking brake, pull the lever out of the detent slot and toward you, then push it down (Figure 15).

    g188777

    Operating the Mower Blade-Control Switch (PTO)

    The blade-control switch (PTO) starts and stops the mower blades and any powered attachments.

    Engaging the Blade-Control Switch (PTO)

    g008945

    Note: Always engage the blades with the throttle in the FAST position (Figure 17).

    g187516

    Disengaging the Blade-Control Switch (PTO)

    g009174

    Operating the Throttle

    You can move the throttle control between the FAST and SLOW positions (Figure 19).

    Always use the FAST position when turning on the mower deck with the blade-control switch (PTO).

    g187517

    Operating the Choke

    Use the choke to start a cold engine.

    1. If the engine is cold, use the choke to start the engine.

    2. Pull up on the choke knob to engage the choke before using the ignition switch (Figure 20).

    3. Push down on the choke to disengage the choke after the engine has started (Figure 20).

      g008959

    Operating the Ignition Switch

    1. Turn the ignition key to the START position (Figure 21).

      Note: When the engines starts, release the key.

      Important: Do not engage starter for more than 5 seconds at a time. If the engine fails to start, allow a 15 second cool-down period between attempts. Failure to follow these instructions can burn out the starter motor.

      Note: You may need multiple attempts to start the engine when you start it the first time after the fuel system has been without fuel completely.

      g008947
    2. Turn the ignition key to shut off the engine.

    Starting and Shutting Off the Engine

    Starting the Engine

    Note: A warm or hot engine may not require choking.

    Important: Do not engage the starter for more than 5 seconds at a time. Engaging the starter motor for more than 5 seconds can damage the starter motor. If the engine fails to start, wait 10 seconds before operating the engine starter again.

    g189354

    Shutting Off the Engine

    1. Disengage the blades by moving the blade-control switch to the OFF position (Figure 18).

    2. Move the throttle lever to the SLOW position and let the engine idle for 1 minute.

    3. Turn the ignition key to the OFF position and remove the key.

    Using the Motion-Control Levers

    g004532

    Driving the Machine

    The drive wheels turn independently, powered by hydraulic motors on each axle. You can turn 1 side in reverse while you turn the other forward, causing the machine to spin rather than turn. This greatly improves the machine maneuverability but may require sometime for you to adapt to how it moves.

    The throttle control regulates the engine speed as measured in rpm (revolutions per minute). Place the throttle control in the FAST position for best performance. Always operate in the full throttle position when mowing.

    Caution

    The machine can spin very rapidly, which may cause you to lose control of machine, resulting in personal injury or damage to machine.

    • Use caution when making turns.

    • Slow the machine down before making sharp turns.

    Driving Forward

    Note: The engine stops when you move the traction-control with the parking brake engaged.

    To stop, pull the motion-control levers to the NEUTRAL position.

    1. Disengage the parking brake; refer to Disengaging the Parking Brake.

    2. Move the levers to the center, unlocked position.

    3. To go forward, slowly push the motion-control levers forward (Figure 24).

      g008952

    Driving Backward

    1. Move the levers to the center, unlocked position.

    2. To go backward, slowly pull the motion-control levers rearward (Figure 25).

      g008953

    Using the Smart Speed

    The Smart Speed TM Control-System lever, located to the right of the operating position (Figure 26), gives you a choice to drive the machine at 3 ground speed ranges—trim, tow, and mow.

    g197125

    To change speeds, do the following:

    1. Move the motion-control levers to neutral and outward to the NEUTRAL-LOCK position.

    2. Disengage the blade-control switch.

    3. Adjust the lever to the desired position.

    The following are only recommendations for use. Adjustments vary by grass type, moisture content, and the height of the grass.

    Suggested uses:TrimTowMow
    ParkingX
    Heavy, wet grassX
    TrainingX
    Bagging X
    Mulching X
    Normal mowing  X
    Transport  X

    Trim

    This is the lowest speed. The suggested uses for this speed are as follows:

    • Parking

    • Heavy, wet grass mowing conditions

    • Training

    Tow

    This is the medium speed. The suggested uses for this speed are as follows:

    • Bagging

    • Mulching

    Mow

    This is the fastest speed. The suggested uses for this speed are as follows:

    • Normal mowing

    • Transporting the machine

    Stopping the Machine

    To stop the machine, move the traction-control levers to neutral, and then move them to the locked position, disengage the blade-control switch (PTO), and turn the ignition key to the OFF position.

    Engage the parking brake when you leave the machine; refer to Engaging the Parking Brake. Remember to remove the key from the ignition switch.

    Caution

    Children or bystanders may be injured if they move or attempt to operate the machine while it is unattended.

    Always remove the ignition key and engage the parking brake when leaving the machine unattended, even if just for a few minutes.

    Using the Side Discharge

    The mower has a hinged grass deflector that disperses clippings to the side and down toward the turf.

    Danger

    Without a grass deflector, discharge cover, or a complete grass-catcher assembly mounted in place, you and others are exposed to blade contact and thrown debris. Contact with rotating mower blade(s) and thrown debris will cause injury or death.

    • Never remove the grass deflector from the mower because the grass deflector routes material down toward the turf. If the grass deflector is ever damaged, replace it immediately.

    • Never put your hands or feet under the mower.

    • Never try to clear the discharge area or mower blades unless you move the blade-control switch (PTO) to the OFF position, rotate the ignition key to the OFF position, and remove the key.

    • Make sure that the grass deflector is in the down position.

    Adjusting the Height of Cut

    The machine is equipped with a foot pedal deck-lift system. You can use the foot pedal to lift the deck briefly to avoid obstacles or lock the deck in the highest height of cut or transport position. You can use the height-of-cut lever with the foot pedal to lock the deck in a specific cutting height.

    Using the Foot Pedal Deck-Lift System

    • Press the deck-lift pedal down to raise the deck; continue to press the pedal until the deck locks in the transport position (Figure 27).

    • Push on the deck-lift pedal with your foot and pull the transport lock handle rearward to disengage the transport lock (Figure 27).

    g024409

    Adjusting the Height of Cut

    You can adjust the height of cut from 38 to 114 mm (1-1/2 to 4-1/2 inches) in 6 mm (1/4 inch) increments by relocating the height-of-cut pin into different hole locations.

    1. Push on the deck-lift pedal with your foot and raise the mower deck to the transport-lock position (also the 114 mm (4-1/2 inches) cutting height position) as shown in Figure 28.

    2. To adjust, remove the pin from the height-of-cut bracket (Figure 28).

    3. Select a hole in the height-of-cut system corresponding to the desired height of cut and insert the pin (Figure 28).

    4. Push on the deck-lift pedal with your foot and pull the handle rearward to disengage the transport lock (Figure 27).

    5. Lower the deck slowly until the lever makes contact with the pin.

      g188850

    Adjusting the Anti-Scalp Rollers

    Whenever you change the height-of-cut, it is recommended to adjust the height of the anti-scalp rollers.

    1. Disengage the blade-control switch (PTO), move the motion-control levers to the NEUTRAL-LOCK position, and engage the parking brake.

    2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

    3. Adjust the anti-scalp rollers as shown in Figure 29.

      g029955

    Using Attachments and Accessories

    Use only Toro approved attachments and accessories.

    If you attach a bucket to the engine guard, use a nylon strap to secure it.

    Important: The bucket weight impacts the stability of the machine. If you are carrying more than the weight listed in the table below in a bucket attached to the engine guard, you must equip your machine with the Bucket-Support Kit.

    Contact your authorized Toro service dealer.

    ModelMaximum weight per bucket without the Bucket-Support Kit
    48-inch deck1.1 kg (2.5 lb)
    54-inch deck1.1 kg (2.5 lb)
    60-inch deck4.5 kg (10 lb)

    Operating Tips

    Using the Fast Throttle Setting

    For best mowing and maximum air circulation, operate the engine at the FAST position. Air is required to thoroughly cut grass clippings, so do not set the height-of-cut so low as to totally surround the mower in uncut grass. Always try to have 1 side of the mower free from uncut grass, which allows air to be drawn into the mower.

    Cutting a Lawn for the First Time

    Cut grass slightly longer than normal to ensure that the cutting height of the mower does not scalp any uneven ground. However, the cutting height used in the past is generally the best one to use. When cutting grass longer than 15 cm (6 inches) tall, you may want to cut the lawn twice to ensure an acceptable quality of cut.

    Cutting a Third of the Grass Blade

    It is best to cut only about a third of the grass blade. Cutting more than that is not recommended unless grass is sparse, or it is late fall when grass grows more slowly.

    Alternating the Mowing Direction

    Alternate the mowing direction to keep the grass standing straight. This also helps disperse clippings which enhances decomposition and fertilization.

    Mowing at Correct Intervals

    Grass grows at different rates at different times of the year. To maintain the same cutting height, mow more often in early spring. As the grass growth rate slows in mid summer, mow less frequently. If you cannot mow for an extended period, first mow at a high cutting height, then mow again 2 days later at a lower height setting.

    Using a Slower Cutting Speed

    To improve cut quality, use a slower ground speed in certain conditions.

    Avoiding Cutting Too Low

    When mowing uneven turf, raise the cutting height to avoid scalping the turf.

    Stopping the Machine

    If you must stop the forward motion of the machine while mowing, a clump of grass clippings may drop onto your lawn. To avoid this, move onto a previously cut area with the blades engaged or you can disengage the mower deck while moving forward.

    Keeping the Underside of the Mower Clean

    Clean clippings and dirt from the underside of the mower after each use. If grass and dirt build up inside the mower, cutting quality will eventually become unsatisfactory.

    Maintaining the Blade(s)

    Maintain a sharp blade throughout the cutting season because a sharp blade cuts cleanly without tearing or shredding the grass blades. Tearing and shredding turns grass brown at the edges, which slows growth and increases the chance of disease. Check the mower blades after each use for sharpness, and for any wear or damage. File down any nicks and sharpen the blades as necessary. If a blade is damaged or worn, replace it immediately with a genuine Toro replacement blade.

    After Operation

    After Operation Safety

    General Safety

    • Clean grass and debris from the cutting units, mufflers, and engine compartment to help prevent fires. Clean up oil or fuel spills.

    • Shut off the fuel before storing or transporting the machine.

    • Disengage the drive to the attachment whenever you are transporting or not using the machine.

    • Use full-width ramps for loading the machine into a trailer or truck.

    • Tie the machine down securely using straps, chains, cable, or ropes. Both front and rear straps should be directed down and outward from the machine.

    • Allow the engine to cool before storing the machine in any enclosure.

    • Never store the machine or fuel container where there is an open flame, spark, or pilot light, such as on a water heater or on other appliances.

    Pushing the Machine by Hand

    Important: Always push the machine by hand. Do not tow the machine, because damage may occur.

    This machine has an electric-brake mechanism, and to push the machine, the ignition key must be in the RUN position. The battery needs to be charged and functioning for the electric brake to be disengaged.

    Pushing the Machine

    1. Park the machine on a level surface, and disengage the blade-control switch.

    2. Engage the parking brake, shut off the engine, and wait for all moving parts to stop before leaving the operating position.

    3. Locate the bypass levers on the frame on both sides of the engine.

    4. Move the bypass levers forward through the key hole and down to lock them in place (Figure 30).

      Note: Do this for each lever.

    5. Disengage the parking brake.

      Note: Do not start the machine.

      g298692
    6. When finished, engage the parking brake.

    Operating the Machine

    Move the bypass levers rearward through the keyhole and down to lock them in place as shown in Figure .

    Note: Do this for each lever.

    Transporting the Machine

    Use a heavy-duty trailer or truck to transport the machine. Ensure that the trailer or truck has all necessary brakes, lighting, and marking as required by law. Please carefully read all the safety instructions. Knowing this information could help you, your family, pets, or bystanders avoid injury.

    Warning

    Driving on the street or roadway without turn signals, lights, reflective markings, or a slow-moving-vehicle emblem is dangerous and can lead to accidents, causing personal injury.

    Do not drive the machine on a public street or roadway.

    1. If you are using a trailer, connect it to the towing vehicle and connect the safety chains.

    2. If applicable, connect the trailer brakes.

    3. Load the machine onto the trailer or truck.

    4. Shut off the engine, remove the key, set the brake, and close the fuel valve.

    5. Tie down the machine near the front caster wheels and the rear bumper (Figure 31).

      g027708

    Loading the Machine

    Use extreme caution when loading or unloading machines onto a trailer or a truck. Use a full-width ramp that is wider than the machine for this procedure. Back the machine up the ramp and drive it forward down the ramp (Figure 32).

    g027995

    Important: Do not use narrow individual ramps for each side of the machine.

    Warning

    Loading a machine onto a trailer or truck increases the possibility of tip-over and could cause serious injury or death (Figure 33).

    • Use extreme caution when operating a machine on a ramp.

    • Use only a full-width ramp; do not use individual ramps for each side of the machine.

    • Do not exceed a 15-degree angle between the ramp and the ground or between the ramp and the trailer or truck.

    • Ensure that the length of ramp is at least 4 times as long as the height of the trailer or truck bed to the ground. This ensures that the ramp angle does not exceed 15 degrees on flat ground.

    • Back up ramps and drive forward down ramps.

    • Avoid sudden acceleration or deceleration while driving the machine on a ramp as this could cause a loss of control or a tip-over situation.

    g027996

    Maintenance

    Note: Determine the left and right sides of the machine from the normal operating position.

    Recommended Maintenance Schedule(s)

    Maintenance Service IntervalMaintenance Procedure
    After the first 8 hours
  • Change the engine oil.
  • Before each use or daily
  • Check the safety-interlock system.
  • Clean and check the air-cleaner element.
  • Check the engine-oil level.
  • Clean the air intake screen.
  • Inspect the blades.
  • Inspect the grass deflector for damage.
  • After each use
  • Clean the mower-deck housing.
  • Every 25 hours
  • Check tire pressure.
  • Check the belts for wear or cracks.
  • Every 100 hours
  • Service the paper element (more often in dusty, dirty conditions).
  • Change the engine oil (more often in dusty, dirty conditions).
  • Check the spark plug(s).
  • Replace the fuel filters(more often under dusty, dirty conditions).
  • Every 200 hours
  • Replace the paper element (more often in dusty, dirty conditions).
  • Change the engine-oil filter(more often in dusty, dirty conditions).
  • Before storage
  • Charge the battery and disconnect the battery cables.
  • Perform all maintenance procedures listed above before storage.
  • Paint any chipped surfaces.
  • Caution

    If you leave the key in the ignition switch, someone could accidently start the engine and seriously injure you or other bystanders.

    Remove the key from the ignition before you perform any maintenance.

    Pre-Maintenance Procedures

    Maintenance and Storage Safety

    • Before repairing the machine do the following:

      • Disengage the drives.

      • Engage the parking brake.

      • Shut off the engine and remove the key.

      • Disconnect the spark-plug wire.

    • Park the machine on a level surface.

    • Clean grass and debris from the cutting unit, drives, mufflers, and engine to help prevent fires.

    • Clean up oil or fuel spills.

    • Let the engine cool before storing the machine.

    • Do not store the machine or fuel near flames or drain the fuel indoors.

    • Do not allow untrained personnel to service the machine.

    • Use jack stands to support the machine and/or components when required.

    • Carefully release pressure from components with stored energy.

    • Disconnect the battery or remove the spark-plug wire before making any repairs. Disconnect the negative terminal first and the positive terminal last. Connect the positive terminal first and negative last.

    • Use care when checking the blades. Wrap the blade(s) or wear thickly padded gloves, and use caution when servicing them. Only replace blades; do not straighten or weld them.

    • Keep your hands and feet away from moving parts. If possible, do not make adjustments with the engine running.

    • Keep all parts in good working condition and all hardware tightened, especially the blade-attachment bolts. Replace all worn or damaged decals.

    • Never interfere with the intended function of a safety device or reduce the protection provided by a safety device. Check their proper operation regularly.

    • To ensure optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories. Replacement parts and accessories made by other manufacturers could be dangerous, and such use could void the product warranty.

    • Check the parking brake operation frequently. Adjust and service as required.

    Engine Maintenance

    Warning

    Contact with hot surfaces may cause personal injury.

    Keep your hands, feet, face, clothing, and other body parts away the muffler and other hot surfaces.

    Engine Safety

    Shut off the engine before checking the oil or adding oil to the crankcase.

    Servicing the Air Cleaner

    Maintenance Service IntervalMaintenance Procedure
    Before each use or daily
  • Clean and check the air-cleaner element.
  • Note: Service the air cleaner more frequently if the operating conditions are extremely dusty or sandy.

    Removing the Element

    1. Park the machine on a level surface and disengage the blade-control switch.

    2. Move the motion-control levers outward to the NEUTRAL-LOCK position, shut off the engine, remove the key, engage the parking brake, and wait for all moving parts to stop before leaving the operating position.

    3. Clean around the air-cleaner cover to prevent dirt from getting into the engine and causing damage and lift the cover and remove the hose clamp securing the air cleaner assembly to the engine (Figure 34).

    4. Loosen the hose clamp and remove the paper element (Figure 34).

      g207139

    Cleaning the Element

    Maintenance Service IntervalMaintenance Procedure
    Every 100 hours
  • Service the paper element (more often in dusty, dirty conditions).
  • Every 200 hours
  • Replace the paper element (more often in dusty, dirty conditions).
    1. Lightly tap the element on a flat surface to remove dust and dirt.

    2. Inspect the element for tears, an oily film, and damage to the seal.

      Important: Never clean the paper element with pressurized air or liquids, such as solvent, gas, or kerosene. Replace the paper element if it is damaged or cannot be cleaned thoroughly.

    Servicing the Engine Oil

    Oil Type: Detergent oil (API service SF, SG, SH, SJ, or SL)

    Crankcase Capacity: 1.8 L (61 oz); when oil filter is removed: 2.1 L (70 oz)

    Viscosity: See the table below.

    g017470

    Note: Using multi grade oils (5W-20, 10W-30, and 10W-40) increases oil consumption. Check the oil level more frequently when using them.

    Checking the Engine-Oil Level

    Maintenance Service IntervalMaintenance Procedure
    Before each use or daily
  • Check the engine-oil level.
  • Note: Check the oil when the engine is cold.

    Warning

    Contact with hot surfaces may cause personal injury.

    Keep your hands, feet, face, clothing and other body parts away the muffler and other hot surfaces.

    Important: Do not overfill the crankcase with oil because damage to the engine may result. Do not run the engine with oil below the low mark because the engine may be damaged.

    1. Park the machine on a level surface and disengage the blade-control switch.

    2. Move the motion-control levers outward to the NEUTRAL-LOCK position, shut off the engine, remove the key, engage the parking brake, and wait for all moving parts to stop before leaving the operating position.

    3. Check the engine-oil level (Figure 36).

      g194611

    Changing the Engine Oil

    Maintenance Service IntervalMaintenance Procedure
    After the first 8 hours
  • Change the engine oil.
  • Every 100 hours
  • Change the engine oil (more often in dusty, dirty conditions).
  • Note: Dispose of the used oil at a recycling center.

    1. Park the machine so that the drain side is slightly lower than the opposite side to ensure the oil drains completely.

    2. Disengage the blade-control switch.

    3. Move the motion-control levers outward to the NEUTRAL-LOCK position, shut off the engine, remove the key, engage the parking brake, and wait for all moving parts to stop before leaving the operating position.

    4. Drain the oil from the engine (Figure 37).

      g027539
    5. Slowly pour approximately 80% of the specified oil into the filler tube and slowly add the additional oil to bring it to the Full mark (Figure 38).

      g194610

    Changing the Engine-Oil Filter

    Maintenance Service IntervalMaintenance Procedure
    Every 200 hours
  • Change the engine-oil filter(more often in dusty, dirty conditions).
  • Note: Change the engine-oil filter more frequently when operating conditions are extremely dusty or sandy.

    1. Drain the oil from the engine; refer to Changing the Engine Oil.

    2. Change the engine-oil filter (Figure 39).

      g027477

      Note: Ensure the oil filter gasket touches the engine and then an extra 3/4 turn is completed.

    3. Fill the crankcase with the proper type of new oil.

    Servicing the Spark Plug

    Maintenance Service IntervalMaintenance Procedure
    Every 100 hours
  • Check the spark plug(s).
  • Make sure the air gap between the center and side electrodes is correct before installing the spark plug. Use a spark plug wrench for removing and installing the spark plug(s) and a gapping tool/feeler gauge to check and adjust the air gap. Install a new spark plug(s) if necessary.

    Type: NGK BPR4ES

    Air Gap: 0.75 mm (0.03 inch)

    Removing the Spark Plug

    1. Park the machine on a level surface and disengage the blade-control switch.

    2. Move the motion-control levers outward to the NEUTRAL-LOCK position, shut off the engine, remove the key, engage the parking brake, and wait for all moving parts to stop before leaving the operating position.

    3. Remove the spark plug (Figure 40).

      g027478

    Checking the Spark Plug

    Important: Never clean the spark plug(s). Always replace the spark plug(s) when it has: a black coating, worn electrodes, an oily film, or cracks.

    If you see light brown or gray on the insulator, the engine is operating properly. A black coating on the insulator usually means the air cleaner is dirty.

    Set the gap to 0.75 mm (0.03 inches).

    g027661

    Installing the Spark Plug

    Tighten the spark plug(s) to 22 N∙m (16 ft-lb) as shown in Figure 42.

    g027960

    Cleaning the Cooling System

    Maintenance Service IntervalMaintenance Procedure
    Before each use or daily
  • Clean the air intake screen.
  • Clean the air intake screen from grass and debris before each use.

    1. Park the machine on a level surface and disengage the blade-control switch.

    2. Move the motion-control levers outward to the NEUTRAL-LOCK position, shut off the engine, remove the key, engage the parking brake, and wait for all moving parts to stop before leaving the operating position.

    3. Remove the air filter from the engine.

    4. Remove the engine shroud.

    5. To prevent debris entering the air intake, install the air filter to the filter base.

    6. Clean debris and grass from the parts.

    7. Remove the air filter and install the engine shroud.

    8. Install the air filter.

    Fuel System Maintenance

    Replacing the Fuel Filter

    Maintenance Service IntervalMaintenance Procedure
    Every 100 hours
  • Replace the fuel filters(more often under dusty, dirty conditions).
    1. Disengage the blade-control switch (PTO), move the motion-control levers to the NEUTRAL-LOCK position, and set the parking brake.

    2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

    3. Replace the fuel filter (Figure 43).

      g027590g027518

    Electrical System Maintenance

    Electrical System Safety

    • Disconnect the battery before repairing the machine. Disconnect the negative terminal first and the positive last. Connect the positive terminal first and the negative last.

    • Charge the battery in an open, well-ventilated area, away from sparks and flames. Unplug the charger before connecting or disconnecting the battery. Wear protective clothing and use insulated tools.

    Warning

    Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

    Servicing the Battery

    Removing the Battery

    Warning

    Battery terminals or metal tools could short against metal machine components causing sparks. Sparks can cause the battery gasses to explode, resulting in personal injury.

    • When removing or installing the battery, do not allow the battery terminals to touch any metal parts of the machine.

    • Do not allow metal tools to short between the battery terminals and metal parts of the machine.

    1. Park the machine on a level surface and disengage the blade-control switch.

    2. Ensure that the parking brake is engaged, shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

    3. Loosen the 2 fasteners on the battery cover counterclockwise 1/4 turn, and remove the battery cover (Figure 44).

      g190587
    4. Disconnect the negative (black) ground cable from the battery post (Figure 45).

      Note: Retain all fasteners.

      Warning

      Incorrect battery-cable routing could damage the machine and cables causing sparks. Sparks can cause the battery gasses to explode, resulting in personal injury.

      • Always disconnect the negative (black) battery cable before disconnecting the positive (red) cable.

      • Always connect the positive (red) battery cable before connecting the negative (black) cable.

    5. Slide the rubber cover up the positive (red) cable.

    6. Disconnect the positive (red) cable from the battery post (Figure 45).

      Note: Retain all fasteners.

    7. Remove the battery hold-down (Figure 45), and lift the battery from the battery tray.

      g188903

    Charging the Battery

    Maintenance Service IntervalMaintenance Procedure
    Before storage
  • Charge the battery and disconnect the battery cables.
    1. Remove the battery from the chassis; refer to Removing the Battery.

    2. Charge the battery for a minimum of 1 hour at 6 to 10 A.

      Note: Do not overcharge the battery.

    3. When the battery is fully charged, unplug the charger from the electrical outlet, then disconnect the charger leads from the battery posts (Figure 46).

      g000538

    Installing the Battery

    1. Position the battery in the tray (Figure 45).

    2. Using the fasteners previously removed, install the positive (red) battery cable to the positive (+) battery terminal.

    3. Using the fasteners previously removed, install the negative battery cable to the negative (-) battery terminal.

    4. Slide the red terminal boot onto the positive (red) battery post.

    5. Secure the battery with the hold-down (Figure 45).

    6. Install the battery cover by pushing down and tightening the 2 fasteners clockwise (Figure 44).

    Servicing the Fuses

    The electrical system is protected by fuses. It requires no maintenance; however, if a fuse blows, check the component/circuit for a malfunction or short.

    Fuse type:

    • Main—F1 (15 A, blade-type)

    • Charge Circuit—F2 (25 A, blade-type)

    To replace the Main (15 A) fuse, reach into the opening in the side of the console, pull out the fuse, and installed a new 15 A fuse (Figure 47).

    g190588

    To replace the Charge Circuit (25 A) fuse, locate the fuse to the left of battery, pull out the fuse, and installed a new 25 A fuse (Figure 48).

    g190588

    Drive System Maintenance

    Checking the Tire Pressure

    Maintenance Service IntervalMaintenance Procedure
    Every 25 hours
  • Check tire pressure.
  • Maintain the air pressure in the front and rear tires as specified. Uneven tire pressure can cause uneven cut. Check the pressure at the valve stem (Figure 49). Check the tires when they are cold to get the most accurate pressure reading.

    Refer to the maximum pressure suggested by the tire manufacturer on the sidewall of the caster wheel tires.

    Inflate the front caster wheel tires to 103 kPa (15 psi).

    Inflate the rear drive wheel tires to 90 kPa (13 psi).

    g000554

    Mower Maintenance

    Servicing the Cutting Blades

    To ensure a superior quality of cut, keep the blades sharp. For convenient sharpening and replacement, keep extra blades on hand.

    Blade Safety

    A worn or damaged blade can break, and a piece of the blade could be thrown toward you or bystanders, resulting in serious personal injury or death. Trying to repair a damaged blade may result in discontinued safety certification of the product.

    • Inspect the blades periodically for wear or damage.

    • Use care when checking the blades. Wrap the blades or wear gloves, and use caution when servicing the blades. Only replace or sharpen the blades; never straighten or weld them.

    • On multi-bladed machines, take care as rotating 1 blade can cause other blades to rotate.

    Before Inspecting or Servicing the Blades

    1. Park the machine on a level surface, disengage the blade-control switch (PTO), and engage the parking brake.

    2. Shut off the engine, remove the key, and disconnect the spark-plug wires from the spark plugs.

    Inspecting the Blades

    Maintenance Service IntervalMaintenance Procedure
    Before each use or daily
  • Inspect the blades.
    1. Inspect the cutting edges (Figure 50).

    2. If the edges are not sharp or have nicks, remove and sharpen the blade; refer to Sharpening the Blades.

    3. Inspect the blades, especially in the curved area.

    4. If you notice any cracks, wear, or a slot forming in this area, immediately install a new blade (Figure 50).

      g006530

    Checking for Bent Blades

    Note: The machine must be on a level surface for the following procedure.

    1. Raise the mower deck to the highest height-of-cut position.

    2. While wearing thickly padded gloves, or other adequate hand protection, slowly rotate the blade to be measure into a position that allows effective measurement of the distance between the cutting edge and the level surface the machine is on (Figure 51).

      g014972
    3. Measure from the tip of the blade to the flat surface (Figure 52).

      g014973
    4. Rotate the same blade 180 degrees so that the opposing cutting edge is now in the same position (Figure 53).

      g014974
    5. Measure from the tip of the blade to the flat surface (Figure 54).

      Note: The variance should be no more than 3 mm (1/8 inch).

      g014973
      1. If the difference between A and B is greater than 3 mm (1/8 inch), replace the blade with a new blade; refer to Removing the Blades and Installing the Blades.

        Note: If a bent blade is replaced with a new blade, and the dimension obtained continues to exceed 3 mm (1/8 inch), the blade spindle could be bent. Contact an Authorized Toro Dealer for service.

      2. If the variance is within constraints, move to the next blade.

    6. Repeat this procedure on each blade.

    Removing the Blades

    The blades must be replaced if a solid object is hit, if the blade is out of balance, or if the blade is bent. For best performance and continued safety conformance of the machine, use genuine Toro replacement blades. Replacement blades made by other manufacturers may result in non-conformance with safety standards.

    1. Hold the blade end using a rag or thickly padded glove.

    2. Remove the blade bolt, curved washer, and blade from the spindle shaft (Figure 55).

      g010341

    Sharpening the Blades

    1. Use a file to sharpen the cutting edge at both ends of the blade (Figure 56).

      Note: Maintain the original angle.

      Note: The blade retains its balance if the same amount of material is removed from both cutting edges.

      g000552
    2. Check the balance of the blade by putting it on a blade balancer (Figure 57).

      Note: If the blade stays in a horizontal position, the blade is balanced and can be used.

      Note: If the blade is not balanced, file some metal off the end of the sail area only (Figure 56).

      g000553
    3. Repeat this procedure until the blade is balanced.

    Installing the Blades

    1. Install the blade onto the spindle shaft (Figure 55).

      Important: The curved part of the blade must be pointing upward toward the inside of the mower to ensure proper cutting.

    2. Install the curved washer (cupped side toward the blade) and the blade bolt (Figure 55).

    3. Torque the blade bolt to 135 to 150 N∙m (100 to 110 ft-lb).

      g004536

    Leveling the Mower Deck

    Ensure that the mower deck is level any time you install the mower deck or when you see an uneven cut on your lawn.

    Check the mower deck for bent blades prior to leveling; remove and replace any bent blades; refer to Checking for Bent Blades before continuing.

    Level the mower deck side-to-side before adjusting the front-to-rear slope.

    Requirements:

    Checking the Side-to-Side Level

    The mower blades must be level from side to side. Check the side-to-side level any time you install the mower or when you see an uneven cut on your lawn.

    1. Park the machine on a level surface and disengage the blade-control switch.

    2. Move the motion-control levers outward to the NEUTRAL-LOCK position, shut off the engine, remove the key, engage the parking brake, and wait for all moving parts to stop before leaving the operating position.

    3. Carefully rotate the blades side to side.

    4. Measure between the outside cutting edges and the flat surface (Figure 59).

      Note: If both measurements are not within 5 mm (3/16 inch), an adjustment is required; refer to Leveling the Mower Deck.

      g007202

    Checking the Front-to-Rear Blade Slope

    Check the front-to-rear blade level any time you install the mower. If the front of the mower is more than 7.9 mm (5/16 inch) lower than the rear of the mower, adjust the blade level using the following instructions:

    1. Park the machine on a level surface and disengage the blade-control switch.

    2. Move the motion-control levers outward to the NEUTRAL-LOCK position, engage the parking brake, shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

    3. Carefully rotate the blades so they are facing front to rear (Figure 60).

    4. Measure from the tip of the front blade to the flat surface and the tip of the rear blade to the flat surface (Figure 60).

      Note: If the front blade tip is not 1.6 to 7.9 mm (1/16 to 5/16 inch) lower than the rear blade tip, continue to the Leveling the Mower Deck procedure.

      g007199

    Leveling the Mower Deck

    1. Set the anti-scalp rollers to the top holes or remove them completely for this procedure; refer to Adjusting the Anti-Scalp Rollers.

    2. Set the height-of-cut lever to the 76 mm (3 inch) position; refer to Adjusting the Height of Cut.

    3. Place 2 blocks each having a thickness of 6.6 cm (2-5/8 inches) under each side of the front edge of the deck, but not under the anti-scalp roller brackets (Figure 61).

    4. Place 2 blocks each having a thickness of 7.3 cm (2-7/8 inches) under the rear edge of the cutting deck skirt; 1 on each side of the cutting deck (Figure 61).

      g024428
    5. Loosen the adjustment bolts on all 4 corners so that the deck is sitting securely on all 4 blocks (Figure 62).

      g024313
    6. Ensure that there is tension on all 4 chains (Figure 62).

    7. Tighten the 4 adjustment bolts (Figure 62).

    8. Ensure that the blocks fit snugly under the deck skirt and that all bolts are tight.

    9. Verify that the deck is level by checking the side-to-side level and front-to-rear blade slope; repeat the deck leveling procedure if necessary.

    Removing the Mower Deck

    Park the machine on a level surface, disengage the blade-control switch, move the motion-control levers outward to the NEUTRAL-LOCK position, engage the parking brake, shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

    Lower the mower to the lowest height of cut. Select 1 of the following procedures depending on the mower deck size installed to complete the removal.

    Preparing to Remove the Mower Deck

    1. Lower the mower to the 76 mm (3 inches) height-of-cut position.

    2. Remove the mower belt from the engine pulley; refer to Replacing the Mower Belt.

    Removing the Mower Deck

    1. Remove the hairpin cotter and washer securing the link pin to the frame and deck, and remove the link bar (Figure 63).

      g028276
    2. Lift up the mower deck to relieve tension from the mower deck.

    3. Remove the chains from the hooks on the deck-lift arms (Figure 64).

      g024313
    4. Raise the height of cut to the transport position.

    5. Remove the belt from the clutch pulley on the engine.

    6. Slide the mower out from underneath the machine.

      Note: Retain all parts for future installation.

    Installing the Mower Deck

    1. Park the machine on a level surface and disengage the blade-control switch.

    2. Move the motion-control levers outward to the NEUTRAL-LOCK position, shut off the engine, remove the key, engage the parking brake, and wait for all moving parts to stop before leaving the operating position.

    3. Slide the mower under the machine.

    4. Lower the height-of-cut lever to the lowest position.

    5. Place the height-of-cut pin in the lock position for lowest height of cut.

    6. Lift the rear of the mower deck and attach the chains to the rear lift arms (Figure 64).

    7. Attach the front chains to the front lift arms (Figure 64).

    8. Install the long link bar through the frame hanger and deck.

    9. Secure the link pin with the hairpin cotters and washers removed previously (Figure 63).

    10. Install the mower belt onto the engine pulley; refer to Replacing the Mower Belt.

    Replacing the Grass Deflector

    Maintenance Service IntervalMaintenance Procedure
    Before each use or daily
  • Inspect the grass deflector for damage.
  • Warning

    An uncovered discharge opening could allow the lawn mower to throw objects at you or bystanders and result in serious injury. Also, contact with the blade could occur.

    Never operate the lawn mower unless you install a mulch plate, discharge deflector, or grass collection system.

    Inspect the grass deflector for damage before each use. Replace any damaged parts before use.

    1. Disengage the spring from the notch in the deflector bracket and slide the rod out of the welded deck brackets, spring, and discharge deflector (Figure 65).

      g197127
    2. Remove the damaged or worn discharge deflector.

    3. Position the new discharge deflector with the bracket ends between the welded brackets on the deck as shown in Figure 66.

    4. Install the spring onto the straight end of the rod.

    5. Position the spring on the rod as shown in so the shorter spring end is coming from under the rod before the bend and going over the rod as it returns from the bend.

    6. Lift the loop end of the spring and place it into the notch on the deflector bracket (Figure 66).

      g017618
    7. Secure the rod and spring assembly by twisting it so the short end of the rod is placed behind the front bracket welded to the deck (Figure 66).

      Important: The grass deflector must be spring loaded in the down position. Lift the deflector up to test that it snaps to the full down position.

    Mower Belt Maintenance

    Inspecting the Belts

    Maintenance Service IntervalMaintenance Procedure
    Every 25 hours
  • Check the belts for wear or cracks.
  • Check the belts for cracks, frayed edges, burn marks, or any other damage. Replace damaged belts.

    Replacing the Mower Belt

    Squealing when the belt is rotating, blades slipping when cutting grass, frayed belt edges, burn marks, and cracks are signs of a worn mower belt. Replace the mower belt if any of these conditions are evident.

    1. Disengage the blade-control switch (PTO), move the motion-control levers to the NEUTRAL-LOCK position, and engage the parking brake.

    2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

    3. Lower the mower to the 76 mm (3 inches) height-of-cut position.

    4. For each of the belt covers, loosen the 2 bolts, but do not remove them.

    5. Slide the cover until it is clear of the bolts and lift it up and out to remove it.

    6. Remove the floor pan to access the idler pulley.

    7. Using a spring removal tool, (Toro Part No. 92-5771), remove the idler spring from the deck post to remove tension on the idler pulley (Figure 67).

      g028279
    8. Lower the mower to the lowest height of cut and place the height-of-cut pin in the lock position for the lowest height-of-cut.

    9. Remove the belt from the mower-deck pulleys and remove the existing belt.

    10. Install the new belt around the mower pulleys and the clutch pulley under the engine (Figure 67).

      Warning

      The spring is under tension when installed and can cause personal injury.

      Be careful when removing the belt.

    11. Using a spring-removal tool, (Toro Part No. 92-5771), install the idler spring over the deck post and placing tension on the idler pulley and mower belt (Figure 67).

    12. Ensure that the belt is properly seated in all pulleys.

    13. To install the belt covers, insert the tabs on the each cover into the corresponding slots on the deck bracket, ensuring that they seat.

    14. Rotate the cover to the deck and slide the notches under the loosened bolts until they are seated.

    15. Tighten the bolts to secure the cover to the deck.

    Cleaning

    Washing the Underside of the Mower

    Maintenance Service IntervalMaintenance Procedure
    After each use
  • Clean the mower-deck housing.
  • Important: You can wash the machine with a mild detergent and water. Do not pressure wash the machine. Avoid excessive use of water, especially near the control panel, under the seat, around the engine, hydraulic pumps, and motors.

    Wash the underside of the mower after each use to prevent grass buildup for improved mulch action and clipping dispersal.

    1. Park the machine on a level surface and disengage the blade-control switch.

    2. Move the motion-control levers outward to the NEUTRAL-LOCK position, engage the parking brake, shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

    3. Attach the hose coupling to the end of the mower washout fitting, and turn the water on high (Figure 68).

      Note: Spread petroleum jelly on the washout fitting O-ring to make the coupling slide on easier and protect the O-ring.

      g017966
    4. Lower the mower to the lowest height of cut.

    5. Sit on the seat and start the engine.

    6. Engage the blade-control switch and let the mower run for 1 to 3 minutes.

    7. Disengage the blade-control switch, shut off the engine, remove the ignition key, and wait for all moving parts to stop.

    8. Turn the water off and remove the coupling from the washout fitting.

      Note: If the mower is not clean after 1 washing, soak it and let it stand for 30 minutes. Then, repeat the process.

    9. Run the mower again for 1 to 3 minutes to remove excess water.

      Warning

      A broken or missing washout fitting could expose you and others to thrown objects or blade contact. Contact with a blade or thrown debris can cause injury or death.

      • Replace broken or missing washout fitting immediately, before using mower again.

      • Never put your hands or feet under the mower or through openings in the mower.

    Cleaning the Suspension System

    Note: Do not clean the shock assemblies with pressurized water (Figure 69).

    g195820

    Disposing of Waste

    Engine oil, batteries, hydraulic fluid, and engine coolant are pollutants to the environment. Dispose of these according to your state and local regulations.

    Storage

    Cleaning and Storage

    1. Disengage the blade-control switch (PTO), engage the parking brake, turn the ignition key to the OFF position, and remove the key.

    2. Remove grass clippings, dirt, and grime from the external parts of the entire machine, especially the engine and hydraulic system. Clean dirt and chaff from the outside of the engine cylinder head fins and blower housing.

      Important: You can wash the machine with mild detergent and water. Do not pressure wash the machine. Avoid excessive use of water, especially near the control panel, engine, hydraulic pumps, and motors.

    3. Check the parking brake operation; refer to Operating the Parking Brake.

    4. Service the air cleaner; refer to Servicing the Air Cleaner.

    5. Change the crankcase oil; refer to Changing the Engine Oil.

    6. Check the tire pressure; refer to Checking the Tire Pressure.

    7. Charge the battery; refer to Charging the Battery.

    8. Scrape any heavy buildup of grass and dirt from the underside of the mower, then wash the mower with a garden hose.

      Note: Run the machine with the blade-control switch (PTO) engaged and the engine at high idle for 2 to 5 minutes after washing.

    9. Check the condition of the blades; refer to Servicing the Cutting Blades.

    10. Prepare the machine for storage when non-use occurs over 30 days. Prepare the machine for storage as follows:

      1. Add a petroleum based stabilizer/conditioner to fuel in the tank. Follow mixing instructions from the stabilizer manufacturer. Do not use an alcohol based stabilizer (ethanol or methanol).

        Note: A fuel stabilizer/conditioner is most effective when mixed with fresh fuel and used at all times.

      2. Run the engine to distribute conditioned fuel through the fuel system (5 minutes).

      3. Shut off the engine, allow it to cool, and drain the fuel tank.

      4. Start the engine and run it until it shuts off.

      5. Dispose of fuel properly. Recycle the fuel according to local codes.

        Important: Do not store stabilizer/conditioned fuel over 90 days.

    11. Check and tighten all bolts, nuts, and screws. Repair or replace any part that is damaged.

    12. Paint all scratched or bare metal surfaces. Paint is available from your Authorized Service Dealer.

    13. Store the machine in a clean, dry garage or storage area. Remove the key from the ignition switch and keep it out of reach of children or other unauthorized users. Cover the machine to protect it and keep it clean.

    Troubleshooting

    ProblemPossible CauseCorrective Action
    The fuel tank is showing signs of collapsing or the machine is showing signs of frequently running out of fuel.
    1. The air-cleaner paper element clogged.
    1. Clean the paper element.
    The engine overheats.
    1. The engine load is excessive.
    2. The oil level in the crankcase is low.
    3. The cooling fins and air passages under the engine blower housing are plugged.
    4. The air cleaner is dirty.
    5. Dirt, water, or stale fuel is in fuel system.
    1. Reduce ground speed.
    2. Add oil to the crankcase.
    3. Remove the obstruction from the cooling fins and air passages.
    4. Clean or replace the air-cleaner element.
    5. Contact an Authorized Service Dealer
    The starter does not crank.
    1. The motion-control levers are not in the Neutral-Lock position.
    2. The parking brake is disengaged.
    3. The battery is dead.
    4. The electrical connections are corroded or loose.
    5. A fuse is blown.
    6. A relay or switch is damaged.
    1. Move the motion-control levers to the Neutral-Lock position.
    2. Engage the parking brake.
    3. Charge the battery.
    4. Check the electrical connections for good contact.
    5. Replace the fuse.
    6. Contact an Authorized Service Dealer.
    The engine does not start, starts hard, or fails to keep running.
    1. The fuel tank is empty.
    2. The choke is not on.
    3. The air cleaner is dirty.
    4. The spark-plug wire(s) is loose or disconnected.
    5. The spark plug(s) is pitted, fouled, or the gap is incorrect.
    6. There is dirt in fuel filter.
    7. Dirt, water, or stale fuel is in fuel system.
    8. There is incorrect fuel in the fuel tank.
    9. The oil level in the crankcase is low.
    1. Fill the fuel tank.
    2. Move the choke lever to On.
    3. Clean or replace the air-cleaner element.
    4. Install the wire(s) on the spark plug.
    5. Install a new, correctly gapped spark plug(s).
    6. Replace the fuel filter.
    7. Contact an Authorized Service Dealer.
    8. Drain the tank and replace the fuel with the proper type.
    9. Add oil to the crankcase.
    The engine loses power.
    1. The engine load is excessive.
    2. The air cleaner is dirty.
    3. The oil level in the crankcase is low.
    4. The cooling fins and air passages under the engine blower housing are plugged.
    5. The spark plug(s) is pitted, fouled, or the gap is incorrect.
    6. The fuel tank vent is blocked.
    7. There is dirt in the fuel filter.
    8. Dirt, water, or stale fuel is in the fuel system.
    9. There is incorrect fuel in the fuel tank.
    1. Reduce ground speed.
    2. Clean the air-cleaner element.
    3. Add oil to the crankcase.
    4. Remove the obstruction from the cooling fins and air passages.
    5. Install a new, correctly gapped spark plug(s).
    6. Contact an Authorized Service Dealer.
    7. Replace the fuel filter.
    8. Contact an Authorized Service Dealer.
    9. Drain the tank and replace the fuel with the proper type.
    The machine does not drive.
    1. The bypass valves are open.
    2. The traction belts are worn, loose, or broken.
    3. The traction belts are off of the pulleys.
    4. The transmission has failed.
    1. Close the tow valves.
    2. Contact an Authorized Service Dealer.
    3. Contact an Authorized Service Dealer.
    4. Contact an Authorized Service Dealer.
    There is an abnormal vibration.
    1. The engine-mounting bolts are loose.
    2. The engine pulley, idler pulley, or blade pulley is loose.
    3. The engine pulley is damaged.
    4. The cutting blade(s) is/are bent or unbalanced.
    5. A blade-mounting bolt is loose.
    6. A blade spindle is bent.
    1. Tighten the engine-mounting bolts.
    2. Tighten the appropriate pulley.
    3. Contact an Authorized Service Dealer.
    4. Install a new cutting blade(s).
    5. Tighten the blade-mounting bolt.
    6. Contact an Authorized Service Dealer.
    The cutting height is uneven.
    1. The blade(s) is not sharp.
    2. A cutting blade(s) is/are bent.
    3. The mower is not level.
    4. An anti-scalp wheel is not set correctly.
    5. The underside of the mower is dirty.
    6. The tire pressure is incorrect.
    7. A blade spindle is bent.
    1. Sharpen the blade(s).
    2. Install a new cutting blade(s).
    3. Level the mower from side-to-side and front-to-rear.
    4. Adjust the anti-scalp wheel height.
    5. Clean the underside of the mower.
    6. Adjust the tire pressure.
    7. Contact an Authorized Service Dealer.
    The blades do not rotate.
    1. The drive belt is worn, loose or broken.
    2. The drive belt is off of the pulley.
    3. The power-takeoff (PTO) switch or PTO clutch is faulty.
    4. The mower belt is worn, loose, or broken.
    1. Install a new drive belt.
    2. Install the drive belt and check the adjusting shafts and belt guides for the correct position.
    3. Contact an Authorized Service Dealer.
    4. Install a new mower belt.

    Schematics

    Electrical Diagram

    g203461
