Crew Hose Kit

1. Park the machine on a level surface.

2. Shift the transmission lever to the P (PARK) position.

3. Shut off the engine and remove the key.

4. Wait for the engine to cool completely.



   Figure 1

5. Disconnect the negative (-) battery cable from the battery post.



   Figure 2

   1. Negative (-) battery cable
   2. Battery post

Parts needed for this procedure:

Attach the hose extensions in this kit to the HVAC suction and discharge hoses prior to installation:

1. Secure the suction hose extension to the suction hose (Figure 3).

2. Secure the discharge hose extension to the discharge hose (Figure 3).

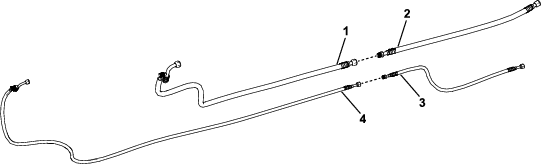

Figure 3

1. Suction hose (3/4 x 72 inches)
2. Suction hose extension (3/4 x 35 inches)
3. Discharge hose extension (3/8 x 37 inches)
4. Discharge hose (3/8 x 101 inches)

Parts needed for this procedure:

After completing the hose routing procedure in the HVAC Kit Installation Instructions, use cable ties to route the hoses away from any hot surfaces.

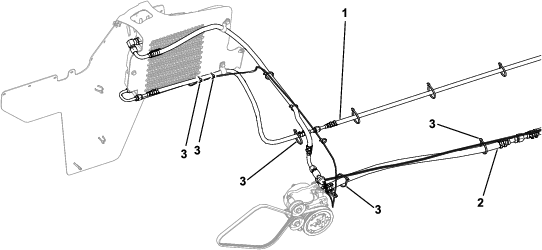

Figure 4

1. Discharge hose
2. Suction hose
3. Cable tie
