Rear View Mirror Kit

1. Park the machine on a level surface.

2. Shift the transmission lever to the P (Park) position.

3. Shut off the engine and remove the key.

4. Wait for all movement to stop.

Parts needed for this procedure:

1. Use 2 bolts to secure the mirror bracket to the front crosslink.

   Torque the bolts to 3 N∙m (30 in-lb).

2. Use a locknut to secure the mirror to the mirror bracket. Hold the mirror jam nut with a wrench while tightening the locknut to keep mirror pivot tension correct.

   Torque the locknut to 26 N∙m (228 in-lb).

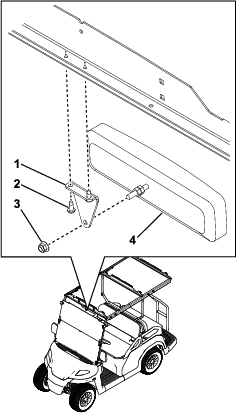

Figure 1

1. Mirror bracket
2. Bolt
3. Locknut
4. Mirror

Parts needed for this procedure:

1. Use 2 bolts to secure the mirror bracket to the front crosslink.

   Torque the bolts to 3 N∙m (30 in-lb).

2. Use a locknut to secure the mirror to the mirror bracket. Hold the mirror jam nut with a wrench while tightening the locknut to keep mirror pivot tension correct.

   Torque the locknut to 26 N∙m (228 in-lb).

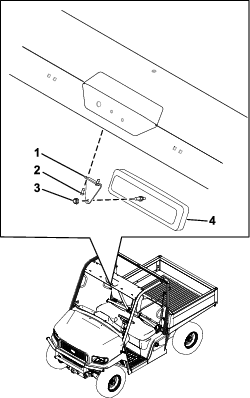

Figure 2

Canopy hidden from view

1. Mirror bracket
2. Screw
3. Locknut
4. Mirror
