Wide Angle Mirror Kit

1. Park the machine on a level surface.

2. Engage the parking brake.

3. Shut off the machine and remove the key.

For Workman^® GTX Models with Canopy Model 07921 or 07922

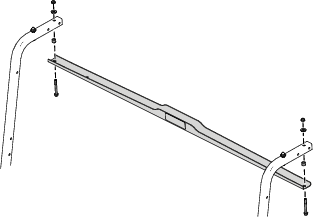

Remove the canopy support bracket as shown in Figure 2.

Note: Retain the support bracket and hardware for later installation.

For Workman GTX Models with Canopy Model 07921 or 07922

Parts needed for this procedure:

Mirror bracket	2
Carriage bolt (1/4 x 3/4 inch)	2
Locknut (1/4 inch)	2

Install the 2 mirror brackets to the canopy support bracket using the 2 carriage bolts (1/4 x 3/4 inch) and 2 locknuts (1/4 inch) as shown in Figure 3.

For Workman GTX Models with 2-Person Canopy Model 07140 or 4-Person Canopy Model 07141

Parts needed for this procedure:

Mirror bracket	2
Carriage bolt (1/4 x 3/4 inch)	2
Locknut (1/4 inch)	2
Carriage bolt (1/4 x 1-1/2 inches)	2

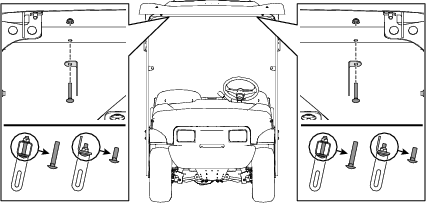

Install the 2 mirror brackets using the 2 carriage bolts (1/4 x 3/4 inch or 1/4 x 1-1/2 inches) and 2 locknuts (1/4 inch) as shown in Figure 4.

For Vista™ Shuttle Vehicles with a Canopy

Parts needed for this procedure:

Mirror bracket	2
Carriage bolt (1/4 x 3/4 inch)	2
Locknut (1/4 inch)	2

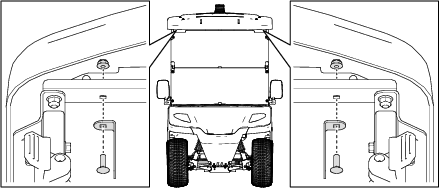

Install the 2 mirror brackets using the 2 carriage bolts (1/4 x 3/4 inch) and 2 locknuts (1/4 inch) as shown in Figure 5.

For GTX and Vista Models with a Canopy

Parts needed for this procedure:

Wide angle mirror	1
Handle knob	2
Carriage bolt (1/4 x 3/4 inch)	1

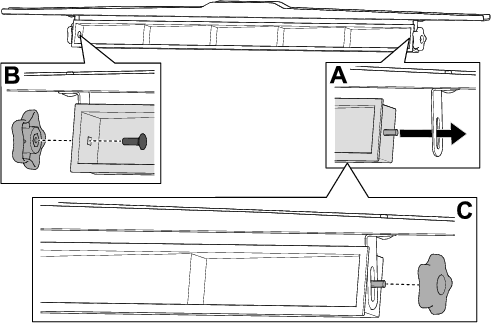

1. Slide the mirror onto the mirror bracket (A of Figure 6).

2. Secure the left side of wide angle mirror to the mirror bracket using a carriage bolt (1/4 x 3/4 inch) and a handle knob (B of Figure 6).

3. Secure the right side of the wide angle mirror using a handle knob (C of Figure 6).



   Figure 6

4. Adjust the height and angle of the mirror; refer to Adjusting the Height and Angle of the Mirror.

5. If required, install the canopy support bracket to the machine using the previously removed hardware; refer to Figure 2.

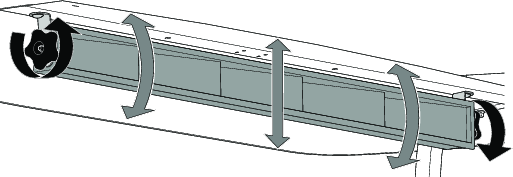

Adjust the height and angle of the mirror as shown in Figure 7.
