Wheel Weight Kit
Maxi Sneaker™ 370 Vibratory Plow



Installing the Weight

  1. Park the machine on a level surface, engage the parking brake, shut off the engine, and remove the key.
  2. Raise one side of the machine so that the weight is off the wheels; support the machine with jack stands.
  3. Remove the 5 lug nuts from each wheel and install the plate retainer.
    Graphic
    G432921
  4. Install the lug nuts and torque them to 108 to 135 N·m (80 to 100 ft-lb).

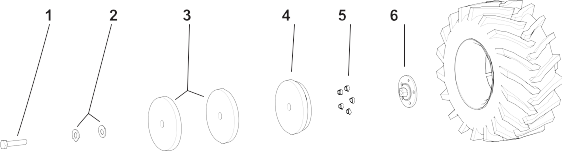

  5. Install 1 inner wheel weight and 2 weights to each wheel using 2 washers and 1 bolt.
    Graphic
    G431744
    1. Bolt
    2. Washers
    3. Weights
    4. Inner wheel weight
    5. Lug nuts
    6. Plate retainer
  6. Torque the bolt to 610 to 623 N·m (450 to 460 in-lb).
