LED Work Light Kit

1. Park the machine on a level surface.

2. Ensure that the parking brake is engaged.

3. Shut off the machine and remove the key.

4. Turn the battery-disconnect switch to the OFF position; refer to the traction unit Operator’s Manual.

Parts needed for this procedure:

1. Install a light mount to each side of the machine with 2 U-bolts and 4 locknuts (3/8 inch) as shown in Figure 1.



   Figure 1

   1. Locknut (3/8 inch)
   2. Light mount
   3. U-bolt

2. Install 2 work lights assemblies to each light mount with 2 flange-head bolts (5/16 x 1 inch) and 2 flange nuts (5/16 inch) as shown in Figure 2.



   Figure 2

   1. Flange nut (5/16 inch)
   2. Work light assembly
   3. Flange-head bolt (5/16 x 1 inch)

3. Install the switch and the hole plug to the switch bracket as shown in Figure 3.

4. Install the switch assembly to the front of the roll bar using 2 U-bolts and 2 locknuts (3/8 inch) as shown in Figure 3.

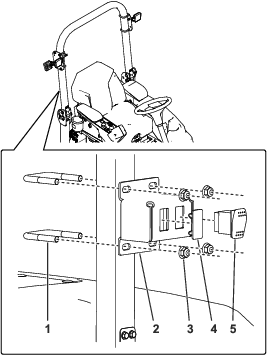

   Figure 3

   1. U-bolt
   2. Switch bracket
   3. Locknut (3/8 inch)
   4. Hole plug
   5. Switch

Parts needed for this procedure:

1. Route the wire harness and loosely secure it to the roll bar with cable ties as shown in Figure 4.

   Important: Route the wire harness away from any sharp, hot, or moving parts; secure it with cable ties as needed.



   Figure 4

   1. Cable ties

2. Connect the 4 square connectors to the work lights and connect the large light connector to the switch (Figure 5).



   Figure 5

   1. Work-light connector
   2. Wire harness

3. Route the wire-harness end labeled P09 through the platform grommet (Figure 6).



   Figure 6

   1. Wire harness
   2. Platform grommet

4. Raise the hood and connect the connector to the machine wire-harness connector labeled .

   Note: The P19 connector is located above the hydraulic-tank cap.

5. Tighten all cable ties and ensure that the work light harness and all connections are secure.

6. Turn the battery-disconnect switch to the ON position; refer to the traction unit Operator’s Manual.

To illuminate the work lights, press up on the light switch installed to the front of the roll bar (Figure 7).
