Folding Windshield Kit

1. Park the machine on a level surface.

2. Engage the parking brake.

3. Shut off the engine and remove the key.

Figure 1

Parts needed for this procedure:

1. Unfold the windshield and secure the upper portion of the windshield to the canopy support tubes using the 2 rubber clamps and 2 short plastic rivets in the upper holes (Figure 2).



   Figure 2

   1. Short plastic rivet
   2. Rubber clamp
   3. Windshield—upper portion
   4. Canopy support tube

2. Align the holes in lower portion of the windshield with the holes in the canopy support tubes (Figure 3).

3. Secure the sides of the windshield to the canopy support tubes using 6 plastic spacers and 6 long plastic rivets (Figure 3).

   Note: Ensure that you install the plastic spacers between the windshield and canopy support tubes.



   Figure 3

   1. Windshield—lower portion
   2. Long plastic rivet
   3. Plastic spacer
   4. Canopy support tube

4. Using the windshield as the template, drill 2 holes (8 mm or 5/16 inch) into the dash (Figure 4).



   Figure 4

5. Secure the bottom of the lower portion of the windshield to the dash using 2 plastic spacers and 2 long plastic rivets (Figure 5).

   Note: Ensure that you install the plastic spacers between the windshield and dash.



   Figure 5

   1. Long plastic rivet
   2. Dash
   3. Plastic spacer

Parts needed for this procedure:

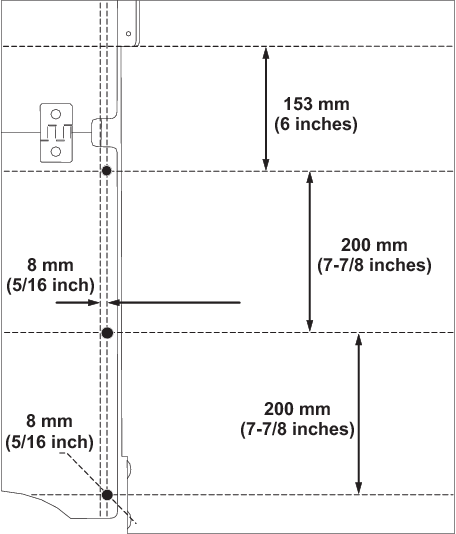

1. Mark and drill 3 holes (8 mm or 5/16 inch) in each canopy support tube using the measurements shown in Figure 6.

   Important: Ensure that you drill through 1 side of the canopy support tubes only.



   Figure 6

   Driver’s side tube shown

2. Unfold the windshield and secure the upper portion of the windshield to the canopy support tubes using the 2 rubber clamps and 2 short plastic rivets in the lower holes (Figure 7).



   Figure 7

   1. Short plastic rivet
   2. Rubber clamp
   3. Windshield—upper portion
   4. Canopy support tube

3. Align the holes in lower portion of the windshield with the holes in the canopy support tubes (Figure 8).

4. Secure the sides of the windshield to the canopy support tubes using 6 plastic spacers and 6 long plastic rivets (Figure 8).

   Note: Ensure that you install the plastic spacers between the windshield and canopy support tubes.



   Figure 8

   1. Windshield—lower portion
   2. Long plastic rivet
   3. Plastic spacer
   4. Canopy support tube

5. Using the windshield as the template, drill 2 holes (8 mm or 5/16 inch) into the dash (Figure 9).



   Figure 9

6. Secure the bottom of the lower portion of the windshield to the dash using 2 plastic spacers and 2 long plastic rivets (Figure 10).

   Note: Ensure that you install the plastic spacers between the windshield and dash.



   Figure 10

   1. Long plastic rivet
   2. Dash
   3. Plastic spacer

When transporting a machine with the folded windshield installed, ensure that you follow these recommendations:

• The machine is facing forward during transportation.

• The folding windshield is secured in the down position using the rubber clamps.

• Do not exceed a vehicle speed of 96 km/h (60 mph).

1. Rinse the windshield with lukewarm water (60° C or 140° F).

2. Using a soft cloth or sponge, wash the windshield with mild-detergent soap to clear the dirt and grime.

   Important: Do not scrub the windshield with a brush or rough fiber.

3. Rinse the windshield with lukewarm water (60° C or 140° F).

4. Dry the windshield using a soft cloth to prevent water spots.
