Glass Windshield and Wiper Kit

1. Park the machine on a level surface.

2. Shift the transmission lever to the P (Park) position.

3. Shut off the engine and remove the key.

Parts needed for this procedure:

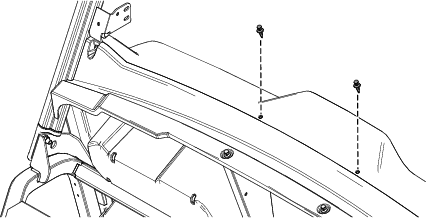

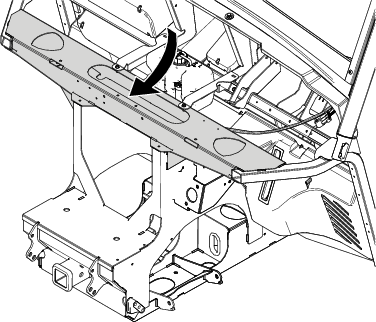

1. Remove the 2 plastic rivets from the dash (Figure 1).



   Figure 1

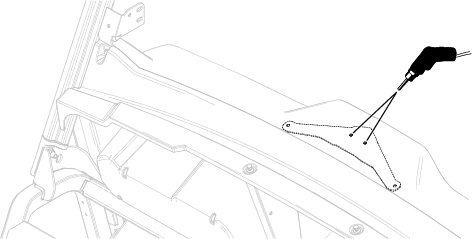

2. Using the latch-mount bracket as the template, mark and then drill 2 holes (5/16 inch) into the dash (Figure 2).



   Figure 2

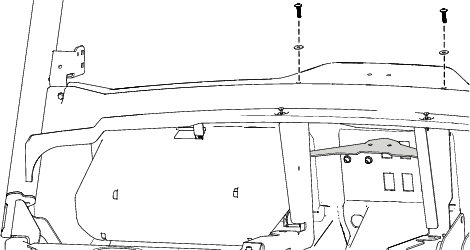

3. Secure the latch-mount bracket to the dash using 2 torx-head screws (M6 x 25 mm) and 2 washers (6 mm) as shown in Figure 3.

4. Torque the 2 torx-head screws (M6 x 25 mm) to 3.6 to 4.5 N∙m (32 to 40 in-lb).



   Figure 3

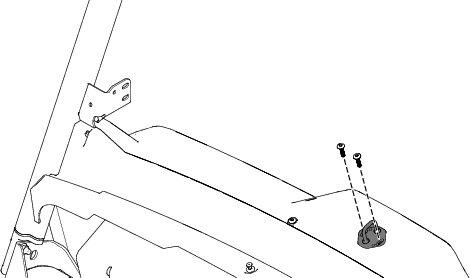

5. Loosely secure the latch to the dash using 2 torx-head screws (M6 x 25 mm) as shown in Figure 4.

   Do not torque the bolts until later.



   Figure 4

Parts needed for this procedure:

Important: You need 2 people for installing the windshield.

1. Align the windshield with the opening on the machine.

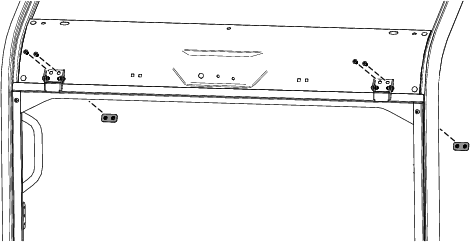

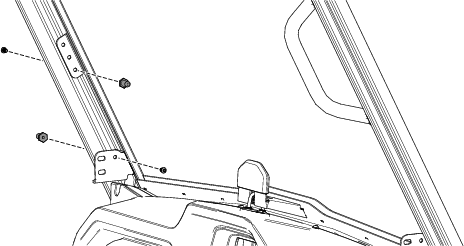

2. Loosely secure the windshield using 2 nut plates (8 mm) and 4 button-head bolts (M8 x 20 mm) as shown in Figure 5.

   Ensure that the windshield is even on each side of the ROPS when installing the fasteners.



   Figure 5

3. When the windshield is even with the ROPS, torque the 4 button-head bolts (M8 x 20 mm) to 26 N∙m (230 in-lb).

Parts needed for this procedure:

1. Secure a strut mount to the right windshield frame using a button-head bolt (M6 x 10 mm) as shown in Figure 6.

   Note: It is recommended to use the lower hole on the windshield frame.

2. Secure a strut mount to the right door-latch bracket using a button-head bolt (M6 x 10 mm) as shown in Figure 6.

3. Repeat steps 1 and 2 on the other side.

4. Torque the 4 button-head bolts (M6 x 10 mm) to 11 N∙m (96 in-lb).



   Figure 6

5. Secure the 2 gas springs to the strut mounts (Figure 7).

   Ensure that you orient the gas spring as shown in Figure 7.



   Figure 7

   Extended view shown

   1. Windshield frame
   2. Piston rod
   3. ROPS bracket

1. If needed, adjust the latch, and ensure that windshield latches correctly.

2. Torque the 2 torx-head screws (M6 x 25 mm) to 11 N∙m (96 in-lb).

Parts needed for this procedure:

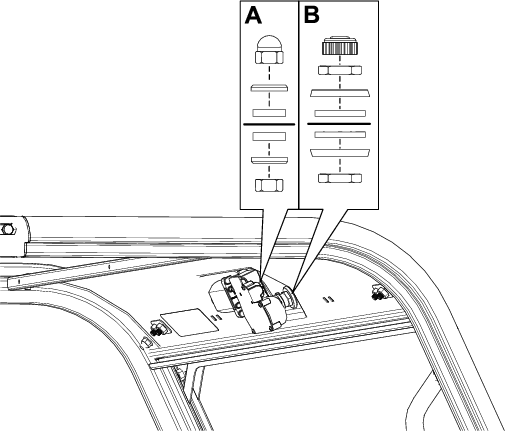

1. Secure the wiper motor to the front ROPS crosslink using the fasteners provided with the motor (Figure 8).

   Box A represents the fasteners needed to secure the wiper motor housing. Box B represents the fasteners needed to secure the wiper motor and wiper arm.

   The crosslink is shown as a solid, black line in box A and B of Figure 8.



   Figure 8

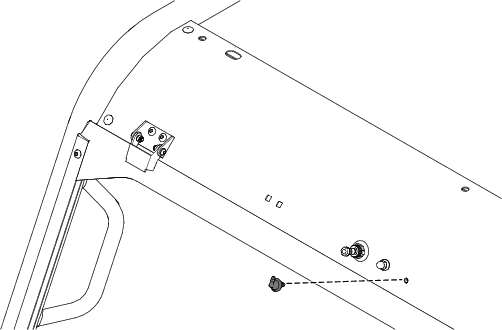

2. Secure the bulkhead fitting to the front ROPS crosslink using the washer and nut included with the fitting (Figure 9).

   Hand-tighten the nut.



   Figure 9

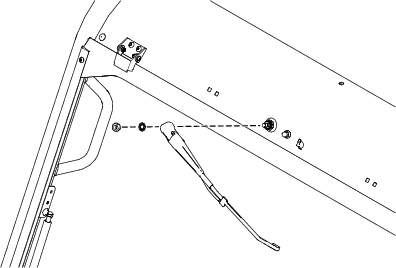

3. While holding the end of the wiper arm with a rag, secure the wiper arm to the motor using the nut and lock washer from the motor assembly (Figure 10).



   Figure 10

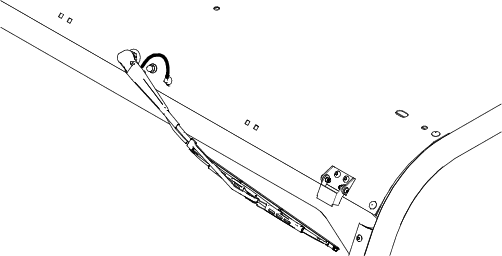

4. Secure the wiper blade to the hook on the wiper arm (Figure 11).



   Figure 11

5. Attach the hose line on the wiper arm to the bulkhead fitting (Figure 12).



   Figure 12

6. Install the wire raceway channel and route the wiper hose through the raceway channel; refer to procedure Installing the Wire Raceway Channel in the Overhead Console Kit (Model 08130) Installation Instructions.

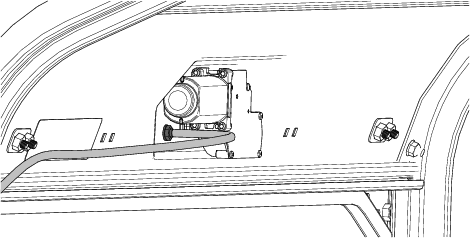

7. Attach the wiper hose to the bulkhead fitting (Figure 13).



   Figure 13

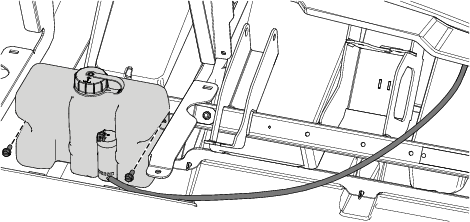

8. Secure the washer bottle to the front frame column mount using the 2 hex-washer head bolts (1/4 x 5/8 inch) as shown in Figure 14.

9. Attach the wiper hose to the washer bottle (Figure 14).



   Figure 14

10. Connect the machine wire-harness connector labeled to the washer bottle.

    You will find the harness connector underneath the front frame shock tower (Figure 15).



    Figure 15

11. Fill the washer bottle with the appropriate climate-compatible windshield washer fluid.

Parts needed for this procedure:

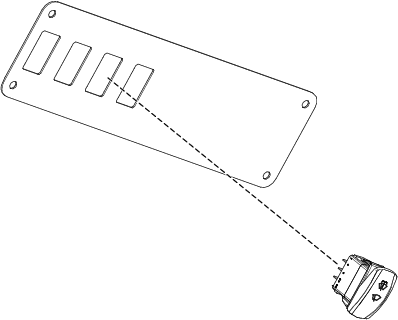

1. Install the switch into the opening of the console switch bracket (Figure 16) from the Overhead Console Kit (Model 08130).



   Figure 16

2. Secure the console switch bracket and the remaining 3 plugs; refer to the Overhead Console Kit (Model 08130) Installation Instructions.

3. Connect the switch to the Overhead Console Kit wire-harness connector labeled ; refer to procedure Routing the Wire Harness and Installing the Dome Light in the Overhead Console Kit (Model 08130) Installation Instructions.

Down position—Wiper off

Middle position—Continuously run the wiper

Up position—Momentarily spray washer fluid on-demand
