Deck Lift Link Kit

Z Master® Riding Mower

Model No. 163-4094-Serial No. and Up

Installation

Note: Determine the left and right sides of the machine from the normal operating position.

Preparing the Machine

  1. Park the machine on a level surface.

  2. Disengage the blade-control switch.

  3. Move the motion-control levers outward to the NEUTRAL-LOCK position.

  4. Engage the parking brake.

  5. Shut off the engine and remove the key.

  6. Disconnect the negative battery cable.

  7. Support the mower deck using 4x4 blocks of wood.

  8. Remove the height-of-cut pin from the height-of-cut bracket.

    g332766

    Figure 1

    1. Height-of-cut pin
    2. Height-of-cut bracket

Removing the Original Hardware

Remove the 4 original deck-lift links and fasteners.

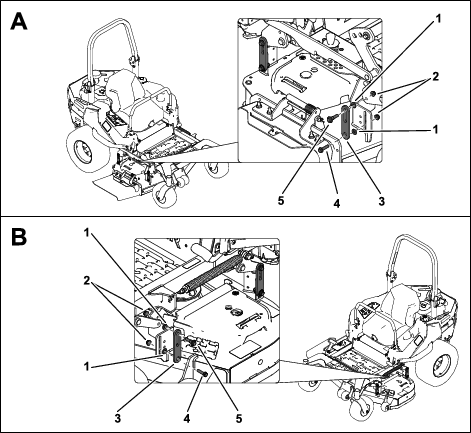

g525023

Figure 2

  1. Spacer
  2. Nut
  3. Deck-lift link
  4. Flange bolt
  5. Shoulder bolt

Installing the Deck-lift Link

Parts needed for this procedure:

Nut 8
Spacer 4
Deck-lift link 4
Shoulder bolt4
Flange bolt4
Bushing4

Install 4 deck-lift links with 4 shoulder bolts, 4 flange bolts, 4 bushings, 4 spacers, and 8 nuts in the locations shown.

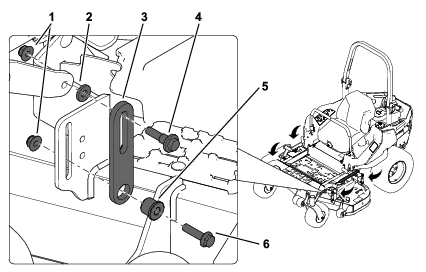

g522934

Figure 3

  1. Nut
  2. Spacer
  3. Deck-lift link
  4. Shoulder bolt
  5. Bushing
  6. Flange bolt

Completing the Installation

Refer to the adjusting the side-to-side leveling and the blade slope procedure in the Operator's Manual to ensure that deck-lift links are installed correctly.
