eProStripe® 560 60V Mower

The safety-alert symbol (Figure 2) shown in this manual and on the machine identifies important safety messages that you must follow to prevent accidents.

Figure 2

Safety-alert symbol

The safety-alert symbol appears above information that alerts you to unsafe actions or situations and is followed by the word DANGER, WARNING, or CAUTION.

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

This manual uses two other words to highlight information. Important calls attention to special mechanical information and Note emphasizes general information worthy of special attention.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) tool.

1. Work area safety

   1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

   2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gasses or dust. Power tools create sparks which may ignite the dust or fumes.

   3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

   1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

   2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

   3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

   4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

   5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

   6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

   1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

   2. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or, or hearing protection used for appropriate conditions will reduce personal injuries.

   3. Prevent unintentional starting. Ensure the switch is in the OFF position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

   4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

   5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

   6. Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

   7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

   8. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

   1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

   2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

   3. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventative safety measures reduce the risk of starting the power tool accidentally.

   4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

   5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

   6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

   7. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

   8. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Battery tool use and care

   1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

   2. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

   3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

   4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

   5. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

   6. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire temperature above 130°C (265°F) may cause an explosion.

   7. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6. Service

   1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

   2. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

• Do not operate the lawn mower in rain or wet conditions. This may increase the risk of electric shock.

• Do not use the lawn mower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.

• Thoroughly inspect the area for wildlife where the lawn mower is to be used. Wildlife may be injured by the lawn mower during operation.

• Thoroughly inspect the area where the lawn mower is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury.

• Before using the lawn mower, always visually inspect to see that the blade and the blade assembly are not worn or damaged. Worn or damaged parts increase the risk of injury.

• Check the grass catcher frequently for wear or deterioration. A worn or damaged grass collector may increase the risk of personal injury.

• Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury.

• Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fire.

• While operating the lawn mower, always wear non-slip and protective footwear. Do not operate the lawn mower when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving blade.

• While operating the lawn mower, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.

• Do not operate the lawn mower in wet grass. Walk, never run. This reduces the risk of slipping and falling which may result in personal injury.

• Do not operate the lawn mower on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.

• When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.

• Use extreme caution when reversing or pulling the lawn mower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation.

• Do not touch blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.

• When clearing jammed material or cleaning the lawn mower, make sure all power switches are off and the battery pack is disconnected. Unexpected operation of the lawn mower may result in serious personal injury.

1. Training

   • The operator of the machine is responsible for any accidents or hazards occurring to others or their property.

   • Do not allow children to use or play with the machine, battery pack, or the battery charger; local regulations may restrict the age of the operator.

   • Do not allow people with reduced physical, sensory, or mental capabilities or without experience and knowledge to use the machine, battery pack, or battery charger unless they receive instruction or supervision on using it safely and understand the hazards involved while using it.

   • Before using the battery pack and battery charger, read all the instructions and cautionary markings on these products.

2. Preparation

   • Replace any damaged or unreadable labels.

   • Use only the battery pack specified by Toro. Using other accessories and attachments may increase the risk of injury and fire.

   • Plugging the battery charger into an outlet that is not of the proper voltage can cause a fire or electric shock. For a different style of connection, use an attachment plug adapter of the proper configuration for the power outlet if needed.

   • Do not use a damaged or modified battery pack or battery charger, which may exhibit unpredictable behavior that results in fire, explosion, or risk of injury.

   • If the supply cord to the battery charger is damaged, contact an Authorized Service Dealer to replace it.

   • Do not use non-rechargeable batteries.

   • Charge the battery pack with only the battery charger specified by Toro. A charger suitable for one type of battery pack may create a risk of fire when used with another battery pack.

   • Charge the battery pack in a well-ventilated area only.

   • Do not expose a battery pack or battery charger to fire or to temperatures higher than 68°C (154°F).

   • Follow all charging instructions and do not charge the battery pack outside of the temperature range specified in the instructions. Otherwise, you may damage the battery pack and increase the risk of fire.

3. Operation

   • Keep clear of any discharge opening.

   • Disengage the self-propel drive (if equipped) before starting the machine.

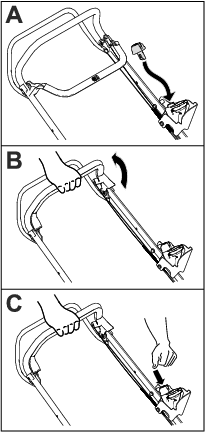

   • Prevent unintentional starting—Ensure that the electric-start button is removed from the ignition before connecting the battery pack and handling the machine.

   • Stop the machine, remove the electric-start button, remove the battery pack from the machine, and wait for all movement to stop before servicing or cleaning the machine.

   • Remove the battery pack and electric-start button from the machine whenever you leave it unattended or before changing accessories.

   • Do not direct the discharge material toward anyone. Avoid discharging material against a wall or obstruction; material may ricochet toward you. Stop the blade(s) when crossing gravel surfaces.

   • Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could cause you to lose your balance or footing.

   • If the machine strikes an object or starts to vibrate, immediately shut off the machine, remove the electric-start button, remove the battery pack, and wait for all movement to stop before examining the machine for damage. Make all necessary repairs before resuming operation.

   • Stop the machine and remove the electric-start button before loading the machine for hauling.

   • Under abusive conditions, the battery pack may eject liquid; avoid contact. If you accidently come into contact with the liquid, flush with water. If the liquid contacts your eyes, seek medical help. Liquid ejected from the battery pack may cause irritation or burns.

4. Maintenance and Storage

   • Stop the machine, remove the electric-start button, remove the battery pack from the machine, and wait for all movement to stop before servicing or cleaning the machine.

   • Do not attempt to repair the machine except as indicated in the instructions. Have an Authorized Service Dealer perform service on the machine using identical replacement parts.

   • Sharpen a dull blade on both sides to maintain balance. Clean the blade and ensure that it is balanced.

   • When servicing the blade, be aware that the blade can still move even though the power source is off.

   • For best performance, use only genuine Toro replacement parts and accessories. Other replacement parts and accessories could be dangerous, and such use could void the product warranty.

   • Maintain the machine—Keep cutting edges sharp and clean for the best and safest performance. Keep handles dry, clean, and free from oil and grease. Keep guards in place and in working order. Keep blades sharp. Use identical replacement blades only.

   • Unless indicated in the instructions, have an Authorized Service Dealer repair or replace a damaged guard or part.

   • When the battery pack is not in use, keep it away from metal objects such as paper clips, coins, keys, nails, and screws that can make a connection from one terminal to another. Shorting the battery terminals may cause burns or a fire.

   • Check the blade and motor mounting bolts frequently for tightness.

   • CAUTION—A mistreated battery pack may present a risk of fire or chemical burn. Do not disassemble the battery pack. Do not heat the battery pack above 68°C (154°F) or incinerate it. Replace the battery pack with a genuine Toro battery pack only; using another type of battery pack may cause a fire or explosion. Keep battery packs out of the reach of children and in the original packaging until you are ready to use them.

   • Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible special disposal instructions.

Parts needed for this procedure:

Align the latches on the lid with the slots and push down to lock the lid in place.

Figure 3

1. Insert latches here.

Parts needed for this procedure:

1. Remove the locknuts from the 2 exposed bolts on the top of the deck.

2. Install a lower handlebar to each side of the top of the mower deck with a clamp plate and the locknuts removed from the deck in the previous step (1).

   Note: The lower handlebar tubes have a bend along the midsection; ensure that the tubes are fitted so that the bent section of the tube angles toward the ground.



   Figure 4

   Left side shown

   1. Cap nut
   2. Locknut
   3. Clamp plate
   4. Lower handlebar
   5. Remove the locknut and install the lower handlebar here.

3. Install the bottom of the brace handlebars to each side of the mower deck using a short bolt, flat washers on the inside and outside of the deck, and a locknut (Figure 5).



   Figure 5

   Left side shown

   1. Locknut
   2. Flat washer
   3. Brace handlebar
   4. Short bolt

4. Install the upper handlebar and the top of the brace handlebars to the lower handlebars with 3 cup washers, 2 long bolts, and 2 locknuts on each side (Figure 6).



   Figure 6

   Left side shown

   1. Long bolt
   2. Cup washer
   3. Lower handlebar
   4. Upper handlebar
   5. Brace handlebar
   6. Locknut
   7. Cap nut

5. Install cap nuts over all of the exposed handlebar nuts.

Parts needed for this procedure:

1. To prevent accidents, cut off the ribbon attached to the grass bag and discard.

2. Insert the frame into the grass bag, keeping the handle above the grass bag (Figure 7).



   Figure 7

   1. Frame handle
   2. Grass bag

3. Attach the plastic clips to the grass-bag frame (Figure 8).



   Figure 8

   1. Plastic clips

Temperature Range Specification

*Charging time may increase if you do not charge the battery pack(s) within the specified temperature range.

Store the machine, battery pack(s), and battery charger(s) in an enclosed, clean, and dry area.

A selection of Toro approved attachments and accessories is available for use with the machine to enhance and expand its capabilities. Contact your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com for a list of all approved attachments and accessories.

To ensure optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories. Replacement parts and accessories made by other manufacturers could be dangerous.

1. Move the machine to a level surface.

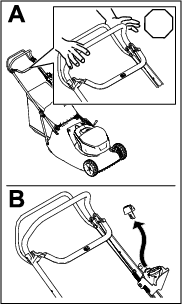

2. Shut off the machine, remove the electric-start button, and remove all battery packs from the machine.

Important: Do not operate the motor without the air-filter assembly in place; otherwise, extreme motor damage will occur.

1. Perform the pre-maintenance procedures; refer to Preparing for Maintenance.

2. Unclip and remove the cover and the foam filter. Clean both thoroughly (Figure 25).



   Figure 25

   1. Press tabs to remove cover.
   2. Foam filter

3. Install the foam filter into the rear cover and install into the powerhead.

1. Perform the pre-maintenance procedures; refer to Preparing for Maintenance.

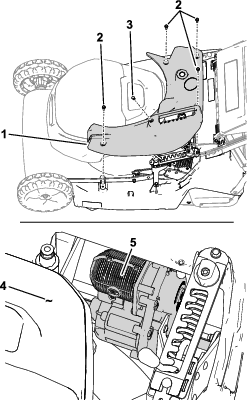

2. Remove the top cover by removing 4 bolts (M6) and a push rivet (Figure 26).



   Figure 26

   1. Top cover
   2. Bolt (M6)
   3. Push rivet
   4. Powerhead
   5. Remove any debris from the surface of the transmission.

3. Using a brush, remove any debris from the surface of the transmission, especially the transmission vents (Figure 26).

   Important: Do not try to clean the transmission using water or compressed air.

4. Install the cover using the previously removed fasteners.

Whenever you install a new cable, or if the self-propel drive or blade-control cable is out of adjustment, adjust the cables.

1. Turn the adjustment nut counterclockwise to loosen the cable adjustment (Figure 27).



   Figure 27

   1. Electric-start switch
   2. Adjustment nut
   3. Turn the nut clockwise to tighten the adjustment.
   4. Turn the nut counterclockwise to loosen the adjustment.
   5. Self-propel drive cable
   6. Blade-control cable

2. Adjust the tension on the cables (Figure 27) by pulling them back or pushing them forward and holding them in that position.

3. Turn the adjustment nut clockwise to tighten the cable adjustment.

   Note: Tighten the nut firmly with a socket or wrench.

   Important: Do not over-tension the cables or the electrical control switches may be damaged.

Important: You will need a torque wrench to install the blade properly. If you do not have a torque wrench or are uncomfortable performing this procedure, contact an Authorized Service Dealer.

If the blade is damaged or cracked, replace it immediately. If the blade edge is dull or nicked, have it sharpened and balanced, or replace it.

1. Tip the machine onto its side with the height-of-cut lever up.

2. Use a block of wood to hold the blade steady (Figure 28).



   Figure 28

3. Remove the blade, saving all mounting hardware (Figure 28).

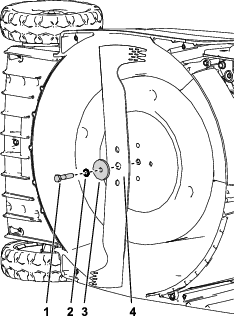

4. Install the new blade and all mounting hardware (Figure 29).



   Figure 29

   1. Bolt
   2. Lock washer
   3. Spacer
   4. Blade

   Important: Position the curved ends of the blade to point toward the machine housing.

5. Use a torque wrench to tighten the blade bolt to 75 N∙m (55 ft-lb).

A slightly worn blade may be re-sharpened. Both blade edges must be sharpened equally to ensure balance.

1. Remove the blade from the machine; refer to Replacing the Blade.

2. Clean the blade using a brush and water, then inspect the blade for signs of damage.

3. Sharpen both cutting edges with a flat file.



   Figure 30

   1. File from 30° to 45° degrees

4. Slide a screwdriver through the center hole and hold the blade horizontal.

   Note: A balanced blade will remain horizontal.



   Figure 31

5. Sharpen the heavy end until the blade is correctly balanced.

   Note: If the blade is not balanced, the heavy end will rotate down.



   Figure 32

Important: Upon removal, cover the terminals of the battery pack with heavy-duty adhesive tape. Do not attempt to destroy or disassemble the battery pack or remove any of its components.

Contact your local municipality or your authorized Toro distributor for more information on how to responsibly recycle the battery.
