TX 450 Compact Tool Carrier

Model No. 22371-Serial No. 400000000 and Up

Model No. 22371G-Serial No. 400000000 and Up

Model No. 22371HD-Serial No. 400000000 and Up

Introduction

This machine is a compact tool carrier intended for use in various earth and materials moving activities for landscaping and construction work. It is designed to operate a wide variety of attachments, each of which perform a specialized function. Using this product for purposes other than its intended use could prove dangerous to you and bystanders. Do not modify the machine or attachments.

This machine should be operated, serviced, and repaired only by professionals familiar with its characteristics and acquainted with the relevant safety procedures.

Operate this machine in ambient temperatures from -18 to 38°C (0 to 100 °F). Contact your Authorized Service Dealer for provisions required for operating in extreme temperatures.

Read this information carefully to learn how to operate and maintain your product properly and to avoid injury and product damage. You are responsible for operating the product properly and safely.

Visit www.Toro.com for product safety and operation training materials, accessory information, help finding a dealer, or to register your product.

Whenever you need service, genuine Toro parts, or additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and serial numbers of your product ready. Figure 1 identifies the location of the model and serial numbers on the product. Write the numbers in the space provided.

Important: With your mobile device, you can scan the QR code on the serial number decal (if equipped) to access warranty, parts, and other product information.

g525210

Figure 1

  1. Model and serial number location

This manual identifies potential hazards and has safety messages identified by the safety-alert symbol (Figure 2), which signals a hazard that may cause serious injury or death if you do not follow the recommended precautions.

g000502

Figure 2

  1. Safety-alert symbol

The safety-alert symbol appears above information that alerts you to unsafe actions or situations and is followed by the word DANGER, WARNING, or CAUTION.

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

This manual uses two other words to highlight information. Important calls attention to special mechanical information and Note emphasizes general information worthy of special attention.

This product complies with all relevant European directives; for details, please see the separate product specific Declaration of Conformity (DOC) sheet.

It is a violation of California Public Resource Code Section 4442 or 4443 to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the engine is equipped with a spark arrester, as defined in Section 4442, maintained in effective working order or the engine is constructed, equipped, and maintained for the prevention of fire.

The enclosed engine owner's manual is supplied for information regarding the US Environmental Protection Agency (EPA) and the California Emission Control Regulation of emission systems, maintenance, and warranty. Replacements may be ordered through the engine manufacturer.

Warning

CALIFORNIA

Proposition 65 Warning

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

Use of this product may cause exposure to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Safety

General Safety

Danger

There may be buried utility lines in the work area. Digging into them may cause a shock or an explosion.

Have the property or work area marked for buried lines and do not dig in marked areas. Contact your local marking service or utility company to have the property marked (for example, in the US, call 811 or in Australia, call 1100 for the nationwide marking service).

Always follow all safety instructions to avoid serious injury or death.

  • Do not exceed the rated operating capacity, as the machine may become unstable, which may result in loss of control.

  • Do not carry a load with the arms raised; always carry loads close to the ground.

  • Slopes are a major factor related to loss-of-control and tip-over accidents, which can result in severe injury or death. Operating the machine on any slope or uneven terrain requires extra caution.

  • Operate the machine up and down slopes with the heavy end of the machine uphill and the load close to the ground. Weight distribution changes with attachments. An empty bucket makes the rear of the machine the heavy end, and a full bucket makes the front of the machine the heavy end. Most other attachments make the front of the machine the heavy end.

  • Have the property or work area marked for buried lines and other objects, and do not dig in marked areas.

  • Read and understand the content of this Operator’s Manual before starting the engine.

  • Use your full attention while operating the machine. Do not engage in any activity that causes distractions; otherwise, injury or property damage may occur.

  • Never allow children or untrained people to operate the machine.

  • Keep your hands and feet away from the moving components and attachments.

  • Do not operate the machine without the guards and other safety protective devices in place and working on the machine.

  • Keep bystanders and children out of the operating area.

  • Stop the machine, shut off the engine, and remove the key before servicing, fueling, or unclogging the machine.

Improperly using or maintaining this machine can result in injury. To reduce the potential for injury, comply with these safety instructions and always pay attention to the safety-alert symbol Graphic, which means Caution, Warning, or Danger—personal safety instruction. Failure to comply with these instructions may result in personal injury or death.

Safety and Instructional Decals

Graphic

Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing.
g528933

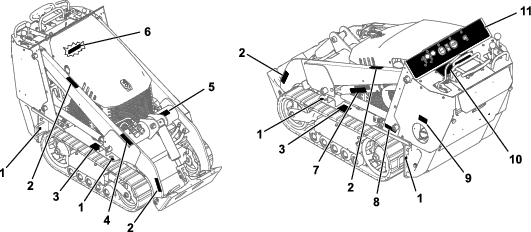

Figure 3

Safety Decal Locations

  1. 93-9084
  2. 100-8821
  3. 100-4650
  4. 115-4855
  5. 100-8822
  6. 93-7814
  7. 115-4858
  8. 133-8062
  9. 161-7268
  10. 115-4860
  11. 138-0799
decalbatterysymbols

Battery Symbols

Some or all of these symbols are on your battery.

  1. Explosion hazard
  2. No fire, open flame, or smoking
  3. Caustic liquid/chemical burn hazard
  4. Wear eye protection.
  5. Read the Operator's Manual.
  6. Keep bystanders away from the battery.
  7. Wear eye protection; explosive gases can cause blindness and other injuries.
  8. Battery acid can cause blindness or severe burns.
  9. Flush eyes immediately with water and get medical help fast.
  10. Contains lead; do not discard
decal93-6686

93-6686

  1. Hydraulic fluid
  2. Read the Operator's Manual.
decal93-7814

93-7814

  1. Entanglement hazard, belt—stay away from moving parts; keep all guards and shields in place.
decal93-9084

93-9084

  1. Lift point/Tie-down point
decal100-4650

100-4650

  1. Crushing hazard of hand—keep bystanders away.
  2. Crushing hazard of foot—keep bystanders away.
decal100-8821

100-8821

  1. Crushing hazard from above; cutting hazard of hand—stay away from the front of the traction unit when the loader arms are raised.
decal100-8822

100-8822

  1. Warning—do not carry passengers.
decal115-4020

115-4020

  1. Turn right
  2. Forward
  3. Reverse
  4. Turn left
decal115-4855

115-4855

  1. Hot surface/burn hazard—wear protective gloves when handling the hydraulic couplers and read the Operator's Manual for information on handling hydraulic components.
decal115-4858

115-4858

  1. Crushing hazard of hands or feet—install the cylinder lock.
decal115-4859

115-4859

  1. Disengaged
  2. Parking brake
  3. Engaged
decal115-4861

115-4861

  1. Auxiliary hydraulics
  2. Locked reverse (detent)
  3. Forward
  4. Neutral (off)
decal115-4862

115-4862

  1. Loader-valve lock—unlocked
  2. Loader-valve lock—locked
decal133-8062

133-8062

decal161-7268

161-7268

  1. Explosion hazard—shut off the engine and turn the key to the OFF position; do not expose to fire or open flame.
decal161-9448

161-9448

  1. Float the attachment.
  2. Lower the attachment.
  3. Tilt the attachment forward.
  4. Raise the attachment.
  5. Tilt the attachment rearward.

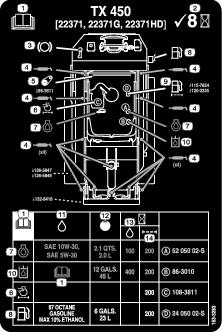

decal163-3283

163-3283

  1. Read the Operator’s Manual.
  2. Check every 8 hours
  3. Brake system
  4. Grease points
  5. Belt
  6. Engine air filter
  7. Engine oil
  8. Fuel
  9. Fuel filter
  10. Hydraulic fluid
  11. Fluids
  12. Capacity
  13. Fluid change interval (hours)
  14. Filter change interval (hours)
decal115-4860

115-4860

  1. Warning—read the Operator's Manual.
  2. Warning—lower the loader arms, engage the parking brake, shut off the engine, and remove the key before leaving the machine.
  3. Crushing hazard from above—install the cylinder lock and read the Operator’s Manual before performing maintenance.
  4. Cutting hazard of hands or feet—wait for all moving parts to stop; stay away from moving parts; keep all guards and shields in place.
  5. Crushing/dismemberment hazard of bystanders—keep bystanders away.
  6. Explosion hazard; electrical shock hazard—do not operate if power lines may be present; call your local utility company.
decal138-0799

138-0799

  1. Read the Operator’s Manual stored in your machine.
  2. Fast
  3. Throttle
  4. Slow
  5. Choke—on
  6. Choke—off
  7. Fuel
  8. Hydraulic fluid temperature
  9. Hour meter
  10. Engine—start
  11. Engine—run
  12. Engine—shut off
  13. Warning—do not operate this machine unless you are trained.
  14. Electrical shock hazard, overhead power lines—watch for overhead power lines.
  15. Tipping hazard—move the traction unit with the heavy end uphill; carry loads low; do not drive the machine with the load raised.
  16. Tipping hazard—drive slowly when turning; do not turn sharply while traveling fast; look behind and down when moving in reverse.

Product Overview

g528140

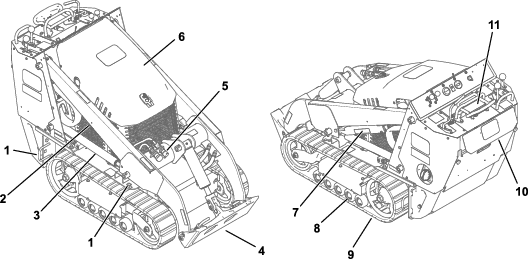

Figure 4

  1. Tie-down/lift point
  2. Loader arm
  3. Lift cylinder
  4. Mount plate
  5. Auxiliary hydraulic couplers
  6. Hood
  7. Cylinder lock
  8. Road wheel
  9. Track
  10. Reverse-safety plate
  11. Control panel

Become familiar with all the controls before you start the engine and operate the traction unit.

Control Panel

g013120

Figure 5

  1. Auxiliary hydraulics lever
  2. Throttle lever
  3. Choke lever
  4. Fuel gauge
  5. Hydraulic-fluid-temperature light
  6. Hour meter/tachometer
  7. Key switch
  8. Loader-arm/attachment-tilt lever
  9. Loader-valve lock
  10. Parking-brake lever
  11. Traction control
  12. Reference bar
  13. Loader-control-reference bar

Key Switch

The key switch, used to start and shut off the engine, has 3 positions: OFF, RUN, and START.

Throttle Lever

Move the control forward to increase the engine speed and rearward to decrease speed.

Choke Lever

Before starting a cold engine, move the choke lever forward. After the engine starts, regulate the choke to keep the engine running smoothly. As soon as possible, move the choke lever all the way rearward.

Note: A warm engine requires little or no choking.

Reference Bar

When driving the traction unit, use the reference bar as a handle and a leverage point for controlling the traction control and the auxiliary-hydraulics lever. To ensure smooth, controlled operation, do not take both hands off the reference bar while operating the machine.

Traction Control

Use the traction control to move the machine. The farther you move the traction control in any direction, the faster the machine moves in that direction. Release the traction control to stop the machine.

g008128

Figure 6

  1. Reference bar
  2. Traction control

  • To move forward, move the traction control forward.

    g008129

    Figure 7

  • To move rearward, move the traction control rearward.

    Important: When reversing, look behind you for obstructions and keep your hands on the reference bar.

    g008130

    Figure 8

  • To turn right, rotate the traction control clockwise.

    g008131

    Figure 9

  • To turn left, rotate the traction control counterclockwise.

    g008132

    Figure 10

  • To stop the machine, release the traction control.

Loader Arm/Attachment-Tilt Lever

Slowly move the lever to operate the loader arms and tilt the attachment.

Note: The detent (float) position allows attachments such as the leveler and the hydraulic blade to follow the contours of the ground (i.e., float) when grading.

g029293

Figure 11

  1. Detent (float) position—push the lever fully forward.
  2. Lower the loader arms.
  3. Raise the loader arms.
  4. Tilt the attachment rearward.
  5. Tilt the attachment forward.

By moving the lever to an intermediate position (e.g., forward and left), you can move the loader arms and tilt the attachment at the same time.

Loader-Valve Lock

The loader-valve lock secures the loader arm/attachment-tilt lever so that you cannot push it forward. This helps to ensure that no one accidentally lowers the loader arms during maintenance. Secure the loader valve with the lock, in addition to the cylinder locks, any time you need to shut off the machine with the loader arms raised. Refer to Removing and Storing the Cylinder Lock.

To set the lock, lift it so that it clears the hole in the control panel and swing in front of the loader-arm lever. Push it down into the locked position.

g528143

Figure 12

  1. Loader-valve lock

Loader-Control-Reference Bar

The loader-control-reference bar helps stabilize your hand while operating the loader arm/attachment-tilt lever.

Auxiliary-Hydraulics Lever

  • To operate a hydraulic attachment in the forward direction, rotate the auxiliary-hydraulics lever rearward and pull it down to the reference bar.

  • To operate a hydraulic attachment in the reverse direction, rotate the auxiliary-hydraulics lever rearward, then move it left into the upper slot.

Note: If you release the lever while in the FORWARD position, the lever automatically returns to the NEUTRAL position. If it is in the REVERSE position, it remains there until you pull it out of the slot.

g004179

Figure 13

  1. Forward-flow hydraulics
  2. Reverse-flow hydraulics
  3. Neutral

Hour Meter/Tachometer

When the engine is off, the hour meter/tachometer displays the number of hours of operation logged on the machine. When the engine is running, it displays the speed of the engine in revolutions per minute (rpm).

After 50 hours and then every 100 hours thereafter (i.e., 150, 250, 350, etc.) the screen displays CHG OIL to remind you to change the engine oil.

After every 100 hours, the screen displays SVC to remind you to perform the other maintenance procedures based on a 100-, 200-, or 400-hour schedule.

Note: These reminders appear 3 hours prior to the service interval time and flash at regular intervals for 6 hours.

Parking-Brake Lever

  • To engage the parking brake, push the lever forward and to the left and then pull it rearward.

    Note: The traction unit may roll slightly before the brakes engage in the drive sprocket.

  • To release the brake, push the lever forward and then right, into the notch.

g005552

Figure 14

Fuel Gauge

This gauge measures the amount of fuel in the fuel tank(s).

Hydraulic-Fluid Temperature Light

If the hydraulic fluid gets too hot, this light illuminates and an audible alarm sounds. If this happens, shut off the engine and allow the traction unit to cool.

Note: Specifications and design are subject to change without notice.

Width86 cm (34 inches)
Length180 cm (71 inches)
Height117 cm (46 inches)
Weight853 kg (1,880 lb)
Operating capacity with standard bucket227 kg (500 lb)
Tipping capacity with standard bucket671 kg (1,480 lb)
Wheelbase79 cm (31 inches)
Dump height (with standard bucket)119 cm (47 inches)
Reach—fully raised (with standard bucket)55 cm (22 inches)
Height to hinge pin (with standard bucket in highest position)168 cm (66 inches)

Attachments/Accessories

A selection of Toro approved attachments and accessories is available for use with the machine to enhance and expand its capabilities. Contact your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com for a list of all approved attachments and accessories.

To ensure optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories. Replacement parts and accessories made by other manufacturers could be dangerous, and such use could void the product warranty.

Operation

Before Operation

Note: Determine the left and right sides of the machine from the normal operating position.

Before Operation Safety

General Safety

  • Never allow children or untrained people to operate or service the machine. Local regulations may restrict the age or require certified training of the operator. The owner is responsible for training all operators and mechanics.

  • Become familiar with the safe operation of the equipment, operator controls, and safety decals.

  • Always engage the parking brake (if equipped), shut off the engine, remove the key, wait for all moving parts to stop, and allow the machine to cool before adjusting, servicing, cleaning, or storing the machine.

  • Know how to stop the machine and shut off the engine quickly.

  • Check that the operator's presence controls, safety switches, and shields are attached and functioning properly. Do not operate the machine unless they are functioning properly.

  • Locate the pinch-point areas marked on the machine and attachments; keep your hands and feet away from these areas.

  • Before operating the machine with an attachment, ensure that the attachment is properly installed and that it is a genuine Toro attachment. Read all the attachment manuals.

  • Evaluate the terrain to determine what accessories and attachments you need to properly and safely perform the job.

  • Have the property or work area marked for buried lines and other objects, and do not dig in marked areas; note the location of unmarked objects and structures, such as underground storage tanks, wells, and septic systems.

  • Inspect the area where you will use the equipment for uneven surfaces or hidden hazards.

  • Ensure that the area is clear of bystanders before operating the machine. Stop the machine if anyone enters the area.

Fuel Safety

  • Use extreme care when handling fuel. It is flammable and its vapors are explosive.

  • Extinguish all cigarettes, cigars, pipes, and other sources of ignition.

  • Use only an approved fuel container.

  • Do not remove the fuel cap or fill the fuel tank while the engine is running or hot.

  • Do not add or drain fuel in an enclosed space.

  • Do not store the machine or fuel container where there is an open flame, spark, or pilot light, such as on a water heater or other appliance.

  • If you spill fuel, do not attempt to start the engine; avoid creating any source of ignition until the fuel vapors have dissipated.

  • To prevent a static charge from igniting the fuel, remove the machine from the truck or trailer and refuel it on the ground, away from all vehicles. If this is not possible, place a portable fuel container on the ground, away from all vehicles, and fill it; then refuel the machine from the fuel container rather than from a fuel-dispenser nozzle.

  • Keep the fuel-dispenser nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

Adding Fuel

Recommended Fuel

  • For best results, use only clean, fresh (less than 30 days old), unleaded gasoline with an octane rating of 87 or higher ((R+M)/2 rating method).

  • Ethanol: Gasoline with up to 10% ethanol (gasohol) or 15% MTBE (methyl tertiary butyl ether) by volume is acceptable. Ethanol and MTBE are not the same. Gasoline with 15% ethanol (E15) by volume is not approved for use. Never use gasoline that contains more than 10% ethanol by volume, such as E15 (contains 15% ethanol), E20 (contains 20% ethanol), or E85 (contains up to 85% ethanol). Using unapproved gasoline may cause performance problems and/or engine damage which may not be covered under warranty.

  • Do not use gasoline containing methanol.

  • Do not store fuel either in the fuel tank or fuel containers over the winter unless you use a fuel stabilizer.

  • Do not add oil to gasoline.

Using Stabilizer/Conditioner

Use fuel stabilizer/conditioner in the machine to keep the fuel fresh longer when used as directed by the fuel-stabilizer manufacturer.

Important: Do not use fuel additives containing methanol or ethanol.

Add the amount of fuel stabilizer/conditioner to fresh fuel as directed by the fuel-stabilizer manufacturer.

Filling the Fuel Tank

Fuel tank capacity: 23 L (6 US gallons)

  1. Park the machine on a level surface, engage the parking brake (if equipped), and lower the loader arms.

  2. Shut off the engine, remove the key, and allow the engine to cool.

  3. Clean around the fuel-tank cap and remove it.

    g528651

    Figure 15

    1. Fuel-tank cap

  4. Fill the tank to about 2.5 cm (1 inch) below the top of the tank, not the filler neck, with fuel.

    Important: This space in the tank allows fuel to expand. Do not fill the fuel tank completely full.

  5. Install the fuel-tank cap securely, turning it until it clicks.

  6. Wipe up any spilled fuel.

Performing Daily Maintenance

Before starting the machine each day, perform the Each Use/Daily procedures listed in the .

Important: Check the hydraulic-fluid level before starting the engine for the first time; refer to Checking the Hydraulic-Fluid Level.

During Operation

During Operation Safety

General Safety

  • Do not exceed the rated operating capacity, as the machine may become unstable, which may result in loss of control.

  • Do not carry a load with the arms raised. Always carry loads close to the ground.

  • Use only Toro-approved attachments and accessories. Attachments can change the stability and the operating characteristics of the machine.

  • For machines with a platform:

    • Lower the loader arms before stepping off the platform.

    • Do not try to stabilize the machine by putting your foot on the ground. If you lose control of the machine, step off the platform and away from the machine.

    • Do not place your feet under the platform.

    • Do not move the machine unless you are standing with both feet on the platform and your hands are holding onto the reference bars.

  • Use your full attention while operating the machine. Do not engage in any activity that causes distractions; otherwise, injury or property damage may occur.

  • Look behind and down before backing up to ensure that the path is clear.

  • Never jerk the controls; use a steady motion.

  • The owner/user can prevent and is responsible for accidents that may cause personal injury or property damage.

  • Wear appropriate clothing including gloves, eye protection, long pants, substantial slip-resistant footwear, and hearing protection. Tie back long hair and do not wear loose clothing or loose jewelry.

  • Do not operate the machine when you are tired, ill, or under the influence of alcohol or drugs.

  • Never carry passengers and keep pets and bystanders away from the machine.

  • Operate the machine only in good light, keeping away from holes and hidden hazards.

  • Ensure that all the drives are in neutral and engage the parking brake (if equipped) before starting the engine. Start the engine only from the operator's position.

  • Use care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

  • Slow down and use caution when making turns and crossing roads and sidewalks. Watch for traffic.

  • Stop the attachment when you are not working.

  • Stop the machine, shut off the engine, remove the key, and inspect the machine if you strike an object. Make any necessary repairs before resuming operation.

  • Never run an engine in an enclosed area.

  • Never leave a running machine unattended.

  • Before leaving the operating position, do the following:

    • Park the machine on a level surface.

    • Lower the loader arms and disengage the auxiliary hydraulics.

    • Engage the parking brake (if equipped).

    • Shut off the engine and remove the key.

  • Do not operate the machine when there is the risk of lightning.

  • Operate the machine only in areas where there is sufficient clearance for you to safely maneuver. Be aware of obstacles in close proximity to you. Failure to maintain adequate distance from trees, walls, and other barriers may result in injury as the machine backs up during operation if you are not attentive to the surroundings.

  • Check for overhead clearance (i.e., electrical wires, branches, and doorways) before driving under any objects and do not contact them.

  • Do not overfill the attachment and always keep the load level when raising the loader arms. Items in the attachment could fall and cause injury.

Slope Safety

  • Operate the machine up and down slopes with the heavy end of the machine uphill. Weight distribution changes with attachments. An empty bucket makes the rear of the machine the heavy end, and a full bucket makes the front of the machine the heavy end. Most other attachments make the front of machine the heavy end.

  • Raising the loader arms on a slope affects the stability of the machine. Keep the loader arms in the lowered position when on slopes.

  • Slopes are a major factor related to loss of control and tip-over accidents, which can result in severe injury or death. Operating the machine on any slope or uneven terrain requires extra caution.

  • Establish your own procedures and rules for operating on slopes. These procedures must include surveying the site to determine which slopes are safe for machine operation. Always use common sense and good judgment when performing this survey.

  • Slow down and use extra care on hillsides. Ground conditions can affect the stability of the machine.

  • Avoid starting or stopping on a slope. If the machine loses traction, proceed slowly, straight down the slope.

  • Avoid turning on slopes. If you must turn, turn slowly and keep the heavy end of the machine uphill.

  • Keep all movements on slopes slow and gradual. Do not make sudden changes in speed or direction.

  • If you feel uneasy operating the machine on a slope, do not do it.

  • Watch for holes, ruts, or bumps, as uneven terrain could overturn the machine. Tall grass can hide obstacles.

  • Use caution when operating on wet surfaces. Reduced traction could cause sliding.

  • Evaluate the area to ensure that the ground is stable enough to support the machine.

  • Use caution when operating the machine near the following:

    • Drop-offs

    • Ditches

    • Embankments

    • Bodies of water

    The machine could suddenly roll over if a track goes over the edge or the edge caves in. Maintain a safe distance between the machine and any hazard.

  • Do not remove or add attachments on a slope.

  • Do not park the machine on a hillside or slope.

Utility Line Safety

  • If you strike a utility line, do the following:

    • Shut off the machine and remove the key.

    • Remove all individuals from the work area.

    • Immediately contact the proper emergency and utility authorities to secure the area.

    • If you damage a fiber-optic cable, do not look into the exposed light.

  • Do not leave the operator’s platform if the machine is charged with electricity. You will be safe as long as you do not leave the platform.

    • Touching any part of the machine may ground you.

    • Do not allow another individual to touch or approach the machine when charged.

    • Always assume the machine is charged if you strike an electrical or communication line. Do not attempt to leave the machine.

  • Leaking gas is both flammable and explosive and may cause serious injury or death. Do not smoke while operating the machine.

Starting the Engine

  1. Ensure that the auxiliary hydraulics lever is in the NEUTRAL position.

  2. Move the choke lever fully forward if you are starting a cold engine.

    Note: A warm or hot engine may not require choking.

  3. Move the throttle lever midway between the SLOW and FAST positions.

  4. Insert the key into the key switch and turn it to the START position. When the engines starts, release the key.

    Important: Do not engage the starter for more than 10 seconds at a time. If the engine fails to start, wait 30 seconds for the starter to cool down between attempts. Failure to follow these instructions could burn out the starter motor.

  5. After the engine starts, gradually move the choke lever back to the OFF position. If the engine stalls or hesitates, move the choke forward again until the engine warms up.

  6. Move the throttle lever to the desired setting.

    Important: Running the engine at high speeds when the hydraulic system is cold (i.e., when the air temperature is at or below freezing) could damage the hydraulic system. When starting the engine in cold conditions, allow it to run in the middle throttle position for 2 to 5 minutes before moving the throttle to the FAST position.

    Note: If the outdoor temperature is below freezing, store the machine in a garage to keep it warmer and to aid in starting.

Driving the Machine

Use the traction control to move the machine. The farther you move the traction control in any direction, the faster the machine moves in that direction. Release the traction control to stop the machine.

The throttle control regulates the engine speed as measured in rpm (revolutions per minute). Place the throttle lever in the FAST position for best performance. You can, however, use the throttle position to operate at slower speeds.

Shutting Off the Engine

  1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

  2. Ensure that the auxiliary hydraulics lever is in the NEUTRAL position.

  3. Move the throttle lever 3/4 of the way to the FAST position.

    Note: If you set the throttle lower than halfway to the FAST position, the engine may continue to run for 1 second after turning the key to the OFF position, preventing a loud after-fire bang.

  4. If the engine has been working hard or is hot, let it idle for a minute before turning the key switch to the OFF position.

    Note: This helps to cool the engine before you shut it off. In an emergency, you can shut off the engine immediately.

  5. Turn the key switch to the OFF position and remove the key.

Caution

Children or bystanders may be injured if they move or attempt to operate the machine while it is unattended.

Always remove the key and engage the parking brake (if equipped) when leaving the machine unattended.

Using Attachments

Installing an Attachment

Important: Use only Toro-approved attachments. Attachments can change the stability and the operating characteristics of the machine. The warranty of the machine may be voided if you use the machine with unapproved attachments.

Important: Before installing the attachment, ensure that the mount plates are free of any dirt or debris and that the pins move freely. If the pins do not move freely, grease them.

  1. Position the attachment on a level surface with enough space behind it to accommodate the machine.

  2. Start the engine.

  3. Tilt the attachment mount plate forward.

  4. Position the mount plate into the upper lip of the attachment receiver plate.

    g003710

    Figure 16

    1. Mount plate
    2. Receiver plate

  5. Raise the loader arms while tilting back the mount plate at the same time.

    Important: Raise the attachment enough to clear the ground and tilt the mount plate all the way back.

  6. Shut off the engine and remove the key.

  7. Engage the quick-attach pins, ensuring that they are fully seated in the mount plate.

    Important: If the pins do not rotate to the engaged position, the mount plate is not fully aligned with the holes in the attachment receiver plate. Check the receiver plate and clean it if necessary.

    Warning

    If you do not fully seat the quick-attach pins through the attachment mount plate, the attachment could fall off the machine, crushing you or bystanders.

    Ensure that the quick-attach pins are fully seated in the attachment mount plate.

    g003711

    Figure 17

    1. Quick-attach pins (engaged position)
    2. Disengaged position
    3. Engaged position

Connecting the Hydraulic Hoses

Warning

Hydraulic fluid escaping under pressure can penetrate skin and cause injury. Fluid injected into the skin must be surgically removed within a few hours by a doctor familiar with this form of injury; otherwise, gangrene may result.

  • Ensure that all hydraulic-fluid hoses and lines are in good condition and all hydraulic connections and fittings are tight before applying pressure to the hydraulic system.

  • Keep your body and hands away from pinhole leaks or nozzles that eject high-pressure hydraulic fluid.

  • Use cardboard or paper to find hydraulic leaks; never use your hands.

Caution

Hydraulic couplers, hydraulic lines/valves, and hydraulic fluid may be hot. If you contact hot components, you may be burned.

  • Wear gloves when operating the hydraulic couplers.

  • Allow the machine to cool before touching hydraulic components.

  • Do not touch hydraulic fluid spills.

If the attachment requires hydraulics for operation, connect the hydraulic hoses as follows:

  1. Shut off the engine and remove the key.

  2. Move the auxiliary-hydraulics lever forward, backward, and back to the NEUTRAL position to relieve pressure at the hydraulic couplers.

  3. Remove the protective covers from the hydraulic connectors on the machine.

  4. Ensure that all foreign matter is cleaned from the hydraulic connectors.

  5. Push the attachment male connector into the female connector on the machine.

    Note: When you connect the attachment male connector first, you relieve any pressure built up in the attachment.

  6. Push the attachment female connector onto the male connector on the machine.

  7. Confirm that the connection is secure by pulling on the hoses.

Removing an Attachment

  1. Park the machine on a level surface.

  2. Lower the attachment to the ground.

  3. Shut off the engine and remove the key.

  4. Disengage the quick-attach pins by turning them to the outside.

  5. If the attachment uses hydraulics, move the auxiliary-hydraulics lever forward, backward, and back to the NEUTRAL position to relieve pressure at the hydraulic couplers.

  6. If the attachment uses hydraulics, slide the collars back on the hydraulic couplers and disconnect them.

    Important: Connect the attachment hoses together to prevent hydraulic system contamination during storage.

  7. Install the protective covers onto the hydraulic couplers on the machine.

  8. Start the engine, tilt the mount plate forward, and back the machine away from the attachment.

After Operation

After Operation Safety

General Safety

  • Engage the parking brake (if equipped), lower the loader arms, shut off the engine, remove the key, wait for all movement to stop, and allow the machine to cool before adjusting, cleaning, storing, or servicing it.

  • Clean debris from the attachments, drives, mufflers, and engine to help prevent fires. Clean up oil or fuel spills.

  • Keep all parts in good working condition and all hardware tightened.

  • Do not touch parts that may be hot from operation. Allow them to cool before attempting to maintain, adjust, or service the machine.

  • Use care when loading or unloading the machine into a trailer or truck.

Retrieving a Stuck Machine

If the machine becomes stuck (e.g., in muddy conditions), pull the machine back into a stable position using either both front tie-down/lift points or both rear tie-down points simultaneously.

g529071

Figure 18

Moving a Non-Functioning Machine

Important: Do not tow or pull the machine without first opening the tow valves, or you will damage the hydraulic system.

  1. Shut off the engine and remove the key.

  2. Open the rear-access cover.

  3. Using a wrench, turn the tow valves on the hydraulic pumps twice counter-clockwise.

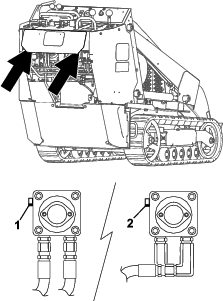

    g529072

    Figure 19

    1. Left tow valve (right track)
    2. Right tow valve (left track)

  4. Tow the machine as required.

  5. After repairing the machine, close the tow valves before operating it.

Hauling the Machine

Use a heavy-duty trailer or truck to haul the machine. Use a full-width ramp. Ensure that the trailer or truck has all the necessary brakes, lighting, and marking as required by law. Please carefully read all the safety instructions. Knowing this information could help you or bystanders avoid injury. Refer to your local ordinances for trailer and tie-down requirements.

Warning

Driving on the street or roadway without turn signals, lights, reflective markings, or a slow-moving-vehicle emblem is dangerous and can lead to accidents causing personal injury.

Do not drive the machine on a public street or roadway.

Selecting a Trailer

Warning

Loading or unloading a machine onto a trailer or truck increases the possibility of tip-over and could cause serious injury or death (Figure 20).

  • Use only full-width ramps.

  • Ensure that the length of ramp is at least 4 times as long as the height of the trailer or truck bed to the ground. This ensures that ramp angle does not exceed 15 degrees on flat ground.

g229507

Figure 20

  1. Full-width ramp(s) in stowed position
  2. Ramp is at least 4 times as long as the height of the trailer or truck bed to the ground
  3. H=height of the trailer or truck bed to the ground
  4. Trailer

Loading the Machine

Warning

Loading or unloading a machine onto a trailer or truck increases the possibility of tip-over and could cause serious injury or death.

  • Use extreme caution when operating a machine on a ramp.

  • Load and unload the machine with the heavy end up the ramp.

  • Avoid sudden acceleration or deceleration while driving the machine on a ramp as this could cause a loss of control or a tip-over situation.

  1. If using a trailer, connect it to the towing vehicle and connect the safety chains.

  2. If applicable, connect the trailer brakes.

  3. Lower the ramp(s).

  4. Lower the loader arms.

  5. Load the machine onto the trailer with the heavy end up the ramp, carrying loads low, as shown.

    • If the machine has a full load-bearing attachment (e.g., bucket) or a non-load-bearing attachment (e.g., trencher), drive the machine forward up the ramp.

    • If the machine has an empty load-bearing attachment or no attachment, back the machine up the ramp.

    g317099

    Figure 21

    1. Machine with full attachment or non-load-bearing attachment—drive the machine forward up the ramp(s).
    2. Machine with empty or no attachment—back the machine up the ramp(s).

  6. Lower the loader arms all the way down.

  7. Engage the parking brake, shut off the engine, and remove the key.

  8. Use the metal tie-down loops on the machine to securely fasten the machine to the trailer or truck with straps, chains, cable, or ropes. Refer to local regulations for tie-down requirements.

    g529071

    Figure 22

Unloading the Machine

  1. Lower the ramp(s).

  2. Unload the machine from the trailer with the heavy end up the ramp, carrying loads low.

    • If the machine has a full load-bearing attachment (e.g., bucket) or a non-load-bearing attachment (e.g., trencher), back it down the ramp.

    • If the machine has an empty load-bearing attachment or no attachment, drive it forward down the ramp.

    g317100

    Figure 23

    1. Machine with full attachment or non-load-bearing attachment—back the machine down the ramp(s).
    2. Machine with empty or no attachment—drive the machine forward down the ramp(s).

Lifting the Machine

Maintenance Service IntervalMaintenance Procedure
Before each use or daily
  • Inspect lift and tie-down points for structural integrity.
    		•

    Remove any attachments and lift the machine using the tie-down/lift points.

    g529071

    Figure 24

    Maintenance

    Note: Determine the left and right sides of the machine from the normal operating position.

    Important: If you must tilt the machine more than 25°, clamp off the vent hose on the top of the fuel tank(s) to prevent fuel from fouling the carbon canister.

    Maintenance Safety

    Caution

    If you leave the key in the switch, someone could accidently start the engine and seriously injure you or other bystanders.

    Remove the key from the switch before you perform any maintenance.

    • Park the machine on a level surface, disengage the auxiliary hydraulics, lower the attachment, engage the parking brake (if equipped), shut off the engine, and remove the key. Wait for all movement to stop and allow the machine to cool before adjusting, cleaning, storing, or repairing it.

    • Clean up oil or fuel spills.

    • Do not allow untrained personnel to service the machine.

    • Use jack stands to support the components when required.

    • Carefully release pressure from components with stored energy; refer to Relieving Hydraulic Pressure.

    • Disconnect the battery before making any repairs; refer to Removing the Battery.

    • Keep your hands and feet away from the moving parts. If possible, do not make adjustments with the engine running.

    • Keep all parts in good working condition and all hardware tightened. Replace all worn or damaged decals.

    • Do not tamper with the safety devices.

    • Use only Toro-approved attachments. Attachments can change the stability and the operating characteristics of the machine. You may void the warranty if you use the machine with unapproved attachments.

    • Use only genuine Toro replacement parts.

    • If any maintenance or repair requires the loader arms to be in the raised position, secure the arms in the raised position with the hydraulic-cylinder lock(s).

    • Refer to local regulations for safely maintaining the machine and attach a warning tag to the control panel to inform others of ongoing maintenance.

    Recommended Maintenance Schedule(s)

    Maintenance Service IntervalMaintenance Procedure
    After the first 8 hours
  • Replace the hydraulic filter.
    		•
    After the first 50 hours
  • Change the engine oil and filter.
  • Check and adjust the track tension.
    		•
    Before each use or daily
  • Inspect lift and tie-down points for structural integrity.
  • Grease the machine.(Grease immediately after every washing.)
  • Check the air-filter-service indicator.
  • Check the engine-oil level.
  • Clean the tracks.
  • Check the tracks for excessive wear(If the tracks are worn, replace them).
  • Test the parking brake.
  • Remove debris from the machine.
  • Check for loose fasteners.
    		•
    Every 25 hours
  • Remove the air-cleaner cover, clean out debris, and check the air-filter-service indicator.
  • Inspect the drive belt for wear or damage.
  • Check the hydraulic-fluid level.
    		•
    Every 100 hours
  • Change the engine oil.(Service more frequently if conditions are extremely dusty or sandy.)
  • Check and adjust the track tension.
  • Check the hydraulic lines for leaks, loose fittings, kinked lines, loose mounting supports, wear, weather, and chemical deterioration.(Make necessary repairs before operating.)
  • Check for dirt buildup in the chassis.
    		•
    Every 200 hours
  • Replace the air filter.
  • Replace the carbon-canister air filter (Service more frequently if conditions are extremely dusty or sandy).
  • Replace the carbon-canister purge-line filter.(Service more frequently when using the vibratory-plow attachment.)
  • Change the oil filter.(Service more frequently if conditions are extremely dusty or sandy.)
  • Check the spark plug(s).
  • Replace the drive belt.
  • Replace the hydraulic filter.
    		•
    Every 250 hours
  • Check and grease the road wheels.
    		•
    Every 400 hours
  • Replace the in-line filter.
  • Change the hydraulic fluid.
    		•
    Every 500 hours
  • Replace the spark plug.
    		•
    Every 1,500 hours
  • Replace all moving hydraulic hoses.
    		•
    Yearly or before storage
  • Check and adjust the track tension.
  • Touch up chipped paint.
    		•

    Important: Refer to your engine owner’s manual for additional maintenance procedures.

    Note: After 50 hours and then every 100 hours thereafter (150, 250, 350, etc.), the hour meter displays CHG OIL to remind you to change the engine oil. After every 100 hours, the screen displays SVC to remind you to perform the other maintenance procedures based on a 100-, 200-, or 400-hour schedule. These reminders come on starting 3 hours prior to the service interval time and flash at regular intervals for 6 hours.

    Pre-Maintenance Procedures

    Using the Cylinder Lock

    Warning

    The loader arms may lower when in the raised position, crushing anyone under them.

    Install the cylinder lock(s) before performing maintenance that requires raised loader arms.

    Installing the Cylinder Lock

    1. Remove the attachment.

    2. Raise the loader arms to the fully raised position.

    3. Shut off the engine and remove the key.

    4. Remove the lynch pin securing the cylinder lock to the loader arm.

      g004182

      Figure 25

      1. Cylinder lock
      2. Lift cylinder
      3. Lynch pin

    5. Lower the cylinder lock over the cylinder rod and secure it with the lynch pin.

    6. Slowly lower the loader arms until the cylinder lock contacts the cylinder body and rod end.

    7. Secure the loader-valve lock; refer to Loader-Valve Lock.

    Removing and Storing the Cylinder Lock

    Important: Remove the cylinder lock from the rod and fully secure it in the storage position before operating the machine.

    1. Start the engine.

    2. Raise the loader arms to the fully raised position.

    3. Shut off the engine and remove the key.

    4. Remove the lynch pin securing the cylinder lock.

    5. Rotate the cylinder lock up to the loader arm and secure it with the lynch pin.

    6. Lower the loader arms.

    Accessing Internal Components

    Warning

    Opening or removing covers, hoods, and screens while the engine is running could allow you to contact moving parts, seriously injuring you.

    Before opening any of the covers, hoods, and screens, shut off the engine, remove the key from the key switch, and allow the engine to cool.

    Opening the Hood

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine, remove the key, and allow the engine to cool.

    3. Unlock the hood using the latch key and press the button to release the latch.

      g529224

      Figure 26

    4. Lift open the hood.

    5. Raise the prop rod and secure it in the bracket on the hood.

      g529502

      Figure 27

    Closing the Hood

    1. Pull the prop rod out of the bracket on the hood and lower it into its holder.

      g529501

      Figure 28

    2. Lower the hood and press down the latch to secure the hood.

    Opening the Rear-Access Cover

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine, remove the key, and allow the engine to cool.

    3. Unscrew the 2 hand knobs securing the rear-access cover to the machine.

      g529223

      Figure 29

      1. Hand knob (2)

    4. Tilt the rear-access cover down and remove it to access the internal components.

    Closing the Rear-Access Cover

    1. Move the rear-access cover in place over the back of the machine; ensure that the tabs line up in the slots.

    2. Push the access cover forward, lining up the hand-knob screws with the threaded holes in the machine.

    3. Screw the hand knobs tight to secure the rear-access cover in place.

    Removing the Side Screens

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine, remove the key, and allow the engine to cool.

    3. Open the hood.

    4. Slide the side screens up and out of the slots in the front screen and frame.

      g529225

      Figure 30

      1. Side screen

    Installing the Side Screens

    Slide the side screens into place in the slots in the front screen and frame.

    Lubrication

    Greasing the Machine

    Maintenance Service IntervalMaintenance Procedure
    Before each use or daily
  • Grease the machine.(Grease immediately after every washing.)
    		•

    Grease Type: General-purpose grease.

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Clean the grease fittings with a rag.

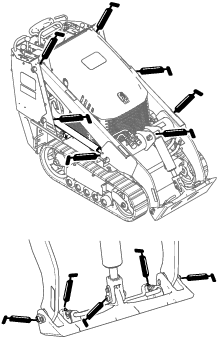

      g529226

      Figure 31

    4. Connect a grease gun to each fitting.

    5. Pump grease into the fittings until grease begins to ooze out of the bearings (approximately 3 pumps).

    6. Wipe up any excess grease.

    Engine Maintenance

    Engine Safety

    • Shut off the engine before checking the oil or adding oil to the crankcase.

    • Do not change the engine governor setting or overspeed the engine.

    • Keep your hands, feet, face, other body parts, and clothing away from the muffler and other hot surfaces.

    Servicing the Air Cleaner

    Maintenance Service IntervalMaintenance Procedure
    Before each use or daily
  • Check the air-filter-service indicator.
    		•
    Every 25 hours
  • Remove the air-cleaner cover, clean out debris, and check the air-filter-service indicator.
    		•
    Every 200 hours
  • Replace the air filter.
    		•

    Important: To prevent engine damage, always operate the engine with the air filter and cover installed.

    Checking the Air Cleaner

    Important: Replace the primary air-cleaner filter only when the service indicator shows red. Changing the air filter before it is necessary only increases the chance of dirt entering the engine when you remove the filter.

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Open the hood.

    4. Check the air-cleaner body for damage that could cause an air leak. Check the whole intake system for leaks, damage, or loose hose clamps. Replace or repair any damaged components.

    5. Release the latches on the air cleaner and pull the air-cleaner cover off the air-cleaner body.

      Important: Do not remove the air filter.

      g526830

      Figure 32

      1. Dust cap
      2. Air-cleaner cover
      3. Air filter
      4. Air-cleaner body

    6. Squeeze the dust cap sides to open it and knock the dust out.

    7. Clean the inside of the cover with compressed air that is under 205 kPa (30 psi).

      Important: Do not use compressed air on the air-cleaner body.

    8. Check the service indicator.

      • If the service indicator is clear, install the cover with the dust cap oriented downward and secure the latches.

      • If the service indicator is red, replace the air filter.

      g367365

      Figure 33

    9. Install the air-cleaner cover with the dust cap oriented downward and secure the latches.

    10. Close the hood.

    Replacing the Filter

    1. Gently slide the filter out of the air-cleaner body.

      Note: Avoid knocking the filter into the side of the body.

      Important: Do not attempt to clean the filter.

      g526533

      Figure 34

      1. Air-cleaner cover
      2. Air filter
      3. Air-cleaner body

    2. Inspect the new filter for tears, an oily film, or damage to the rubber seal. Look into the filter while shining a bright light on the outside of the filter; holes in the filter appear as bright spots.

      If the filter is damaged, do not use it.

    3. Carefully install the filter.

      Note: Ensure that each filter is fully seated by pushing on the outer rim of the filter while installing it.

      Important: Do not press on the soft inside area of the filter.

    4. Install the air-cleaner cover with the dust cap oriented downward and secure the latches.

    5. Close the hood.

    Servicing the Carbon Canister

    Replacing the Carbon-Canister Air Filter

    Maintenance Service IntervalMaintenance Procedure
    Every 200 hours
  • Replace the carbon-canister air filter (Service more frequently if conditions are extremely dusty or sandy).
    		•

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Remove the rear-access cover.

    4. Remove and discard the carbon-canister air filter.

      g529387

      Figure 35

      1. Carbon canister
      2. Air filter

    5. Install a new filter onto the carbon canister.

    6. Install the rear-access cover.

    Replacing the Carbon-Canister Purge-Line Filter

    Maintenance Service IntervalMaintenance Procedure
    Every 200 hours
  • Replace the carbon-canister purge-line filter.(Service more frequently when using the vibratory-plow attachment.)
    		•

    Note: Check the purge-line filter occasionally for dirt. If the filter looks dirty, replace it.

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Remove the rear-access cover.

    4. Replace the carbon-canister purge-line filter as shown.

      Note: Ensure that the markings on the filter point away from the carbon canister.

      g529388

      Figure 36

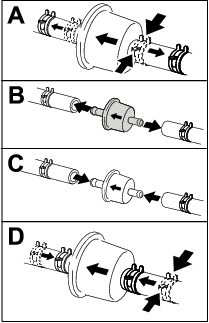

      g333995

      Figure 37

    5. Install the rear-access cover.

    Servicing the Engine Oil

    Maintenance Service IntervalMaintenance Procedure
    After the first 50 hours
  • Change the engine oil and filter.
    		•
    Before each use or daily
  • Check the engine-oil level.
    		•
    Every 100 hours
  • Change the engine oil.(Service more frequently if conditions are extremely dusty or sandy.)
    		•
    Every 200 hours
  • Change the oil filter.(Service more frequently if conditions are extremely dusty or sandy.)
    		•

    Engine-Oil Specifications

    Oil Type: Detergent oil (API service SG, SH, SJ, or higher)

    Crankcase Capacity: with filter, 2.0 L (2.1 US qt)

    Viscosity: See table below

    g000650

    Figure 38

    Checking the Engine-Oil Level

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine, remove the key, and allow the engine to cool.

    3. Open the hood.

    4. Clean the area around the oil dipstick and oil-fill cap.

      g529339

      Figure 39

      1. Oil-fill cap
      2. Oil dipstick

    5. Check the oil and add additional oil as needed.

      Important: Do not overfill the crankcase with oil; if the oil in the crankcase is too high and you run the engine, you may damage the engine.

      g529338

      Figure 40

    6. Close the hood.

    Changing the Engine Oil

    1. Start the engine and let it run for 5 minutes.

      Note: This warms the oil so that it drains better.

    2. Park the machine so that the drain side is slightly lower than the opposite side to ensure that the oil drains completely.

    3. Lower the loader arms, engage the parking brake, shut off the engine, and remove the key.

    4. Drain the oil beneath the machine.

      Caution

      Components will be hot if the machine has been running. Contact with hot parts could result in minor or moderate injury.

      Use care to avoid touching hot components while changing the oil and/or filter.

      g529363g529362

      Figure 41

    5. Open the hood.

    6. Remove the fill cap and slowly pour approximately 80% of the specified amount of oil in through the valve cover.

    7. Check the oil level.

    8. Slowly add additional oil to bring the level to the upper hole on the dipstick.

    9. Replace the fill cap.

    10. Close the hood.

    Note: Dispose of the used oil at a certified recycling center.

    Changing the Engine-Oil Filter

    1. Drain the oil from the engine; refer to Changing the Engine Oil.

    2. When the oil has drained completely, install the drain plug and tighten it.

      Note: Dispose of the used oil at a certified recycling center.

    3. Remove the left side screen.

    4. Place a shallow pan or rag under the filter to catch oil.

    5. Change the oil filter.

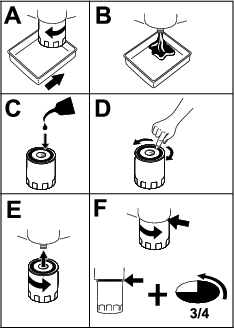

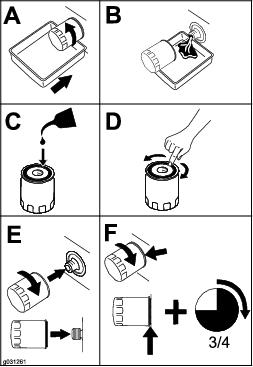

      g031261

      Figure 42

    6. Remove the fill cap and slowly pour approximately 80% of the specified amount of oil in through the valve cover.

    7. Check the oil level.

    8. Slowly add additional oil to bring the level to the upper level on the dipstick.

    9. Replace the fill cap.

    Servicing the Spark Plug(s)

    Maintenance Service IntervalMaintenance Procedure
    Every 200 hours
  • Check the spark plug(s).
    		•
    Every 500 hours
  • Replace the spark plug.
    		•

    Ensure that the air gap between the center and side electrodes is correct before installing each spark plug. Use a spark-plug wrench for removing and installing each spark plug and a gapping tool/feeler gauge to check and adjust the air gap. Install new spark plugs if necessary.

    Type: Champion XC12YC or equivalent.

    Air Gap: 0.75 mm (0.03 inch)

    Removing the Spark Plug

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine, remove the key, and allow the engine to cool.

    3. Clean the area around the base of the plug(s) to keep dirt and debris out of the engine.

    4. Remove the spark plug(s) as shown.

      g027478

      Figure 43

    Checking the Spark Plug

    Important: Do not clean the spark plug(s). Always replace the spark plug(s) when it has a black coating, worn electrodes, an oily film, or cracks.

    If you see light brown or gray on the insulator, the engine is operating properly. A black coating on the insulator usually means the air cleaner is dirty.

    Set the gap to 0.75 mm (0.03 inch).

    g206628

    Figure 44

    Installing the Spark Plug

    g028109

    Figure 45

    Fuel System Maintenance

    Danger

    In certain conditions, fuel is extremely flammable and highly explosive. A fire or explosion from fuel can burn you and others and can damage property.

    • Drain fuel from the fuel tanks when the engine is cold. Do this outdoors in an open area. Wipe up any fuel that spills.

    • Never smoke when draining fuel, and stay away from an open flame or where a spark may ignite the fumes.

    • Refer to Fuel Safety for a complete list of fuel related precautions.

    Replacing the In-Line Fuel Filter

    Maintenance Service IntervalMaintenance Procedure
    Every 400 hours
  • Replace the in-line filter.
    		•

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Open the hood and remove the right side screen.

    4. Replace the filter as shown.

      Note: Ensure that the markings on the filter follow the fuel flow direction.

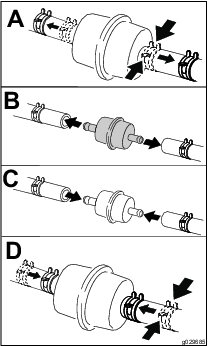

      g029685

      Figure 46

    5. Install the right side screen and close the hood.

    Draining the Fuel Tank

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Syphon the fuel from the tank using a pump-type syphon.

    Note: Now is the best time to install a new fuel filter because the fuel tank is empty.

    Removing the Fuel Tank

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Remove both side weights.

      g529663

      Figure 47

      Left weight shown

      1. Bolt—1/2 x 3 inches (2 per weight)
      2. Lock washer (2 per weight)
      3. Washer (2 per weight)

    4. Open the rear-access cover.

    5. Disconnect the negative battery cable.

    6. Remove the rear panel.

      g529662

      Figure 48

      1. Washer (2)
      2. Bolt—1/2 x 1-1/4 inch (6)
      3. Nut—1/2 inch (4)
      4. Bolt—3/8 x 1 inch (2)
      5. Nut—3/8 inch (2)

    7. Place a clamp on the fuel line, 2 inches from where it comes out of the fuel tank.

    8. Slide the fuel tank to the rear.

    9. Disconnect the fuel line from the fitting on the fuel tank.

    10. Disconnect the 2 wires leading to the right side of the tank.

      g013123

      Figure 49

      1. Black wire
      2. Orange wire
      3. Fuel-tank-vent fitting
      4. Vent hose
      5. To the carbon canister

    11. Disconnect the vent hose from the fitting on top of the tank. Plug the fitting so that no fuel can leak out.

    12. Carefully remove the tank and set it upright to keep from spilling the fuel.

    Important: Keep the fuel lines and wires away from the engine pulleys and the frame.

    Installing the Fuel Tank

    Important: Keep the fuel lines and wires away from the engine pulleys and the frame.

    1. Slide the fuel tank partway into the chassis

    2. Remove the plug from the vent fitting and connect the vent hose to it.

      g013123

      Figure 50

      1. Black wire
      2. Orange wire
      3. Fuel-tank-vent fitting
      4. Vent hose
      5. To the carbon canister

    3. Connect the fuel line and remove the clamp.

    4. Connect the orange wire to the center post and the black wire to the outside post.

    5. Slide the tank all the way into the machine.

    6. Install the rear panel.

      g529662

      Figure 51

      1. Washer (2)
      2. Bolt—1/2 x 1-1/4 inch (6)
      3. Nut—1/2 inch (4)
      4. Bolt—3/8 x 1 inch (2)
      5. Nut—3/8 inch (2)

    7. Close the rear-access cover.

    8. Install the side weights.

      g529663

      Figure 52

      Left weight shown

      1. Bolt—1/2 x 3 inches (2 per weight)
      2. Lock washer (2 per weight)
      3. Washer (2 per weight)

    Electrical System Maintenance

    Electrical System Safety

    • Disconnect the cable from the negative terminal of the battery before repairing the machine.

    • Charge the battery in an open, well-ventilated area, away from sparks and flames. Unplug the charger before connecting or disconnecting the battery. Wear protective clothing and use insulated tools.

    • Battery acid is poisonous and can cause burns. Avoid contact with skin, eyes, and clothing. Protect your face, eyes, and clothing when working with a battery.

    • Battery gases can explode. Keep cigarettes, sparks, and flames away from the battery.

    Servicing the Battery

    Always keep the battery clean and fully charged. Use a paper towel to clean the battery case. If the battery terminals are corroded, clean them with a solution of 4 parts water and 1 part baking soda. Apply a light coating of grease to the battery terminals to reduce corrosion.

    Specifications: 12 V, 585 A (cold cranking)

    Removing the Battery

    Warning

    Battery terminals or metal tools could short against metal machine components, causing sparks. Sparks can cause the battery gasses to explode, resulting in personal injury.

    • When removing or installing the battery, do not allow the battery terminals to touch any metal parts of the machine.

    • Do not allow metal tools to short between the battery terminals and metal parts of the machine.

    Warning

    Incorrect battery cable routing could damage the machine and cables, causing sparks. Sparks can cause the battery gasses to explode, resulting in personal injury.

    Always disconnect the negative (black) battery cable before disconnecting the positive (red) cable.

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Open the rear-access cover.

    4. Remove the fasteners securing the battery clamp and remove the battery clamp.

      g529515

      Figure 53

      1. Positive cable
      2. Negative cable
      3. Battery clamp
      4. Battery

    5. Disconnect the negative (black) ground cable from the battery post. Retain the fasteners.

    6. Slide the rubber cover off the positive (red) cable.

    7. Disconnect the positive (red) cable from the battery post. Retain the fasteners.

    8. Remove the battery.

    Charging the Battery

    Warning

    Charging the battery produces gasses that could explode, resulting in death or serious injury.

    Never smoke near the battery and keep sparks and flames away from battery.

    Important: Always keep the battery fully charged (1.265 specific gravity). This is especially important to prevent battery damage when the temperature is below 0°C (32°F).

    1. Remove the battery from the machine; refer to Removing the Battery.

    2. Charge the battery for 10 to 15 minutes at 25 to 30 A or 30 minutes at 4 to 6 A. Do not overcharge the battery.

      g003792

      Figure 54

      1. Positive battery post
      2. Negative battery post
      3. Red (+) charger lead
      4. Black (-) charger lead

    3. When the battery is fully charged, unplug the charger from the electrical outlet, then disconnect the charger leads from the battery posts.

    Cleaning the Battery

    Note: Keep the terminals and the entire battery case clean to help extend battery life.

    1. Park the machine on a level surface, engage the parking brake (if equipped), and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Remove the battery from the machine; Removing the Battery.

    4. Wash the entire case with a solution of baking soda and water.

    5. Rinse the battery with clear water.

    6. Coat the battery posts and cable connectors with Grafo 112X (skin-over) grease or petroleum jelly to prevent corrosion.

    7. Install the battery; refer to Installing the Battery.

    Installing the Battery

    Warning

    Incorrect battery cable routing could damage the machine and cables, causing sparks. Sparks can cause the battery gasses to explode, resulting in personal injury.

    Always connect the positive (red) battery cable before connecting the negative (black) cable.

    1. Using the fasteners previously removed, install the positive (red) battery cable to the positive (+) battery terminal.

      g529515

      Figure 55

      1. Positive cable
      2. Negative cable
      3. Battery clamp
      4. Battery

    2. Slide the red terminal boot onto the positive battery post.

    3. Using the fasteners previously removed, install the negative (black) battery cable to the negative (-) battery terminal.

    4. Secure the battery using the battery clamp and fasteners removed previously.

      Important: Ensure that the battery cables do not contact any sharp edges or each other.

    5. Close the rear-access cover.

    Servicing a Replacement Battery

    The original battery is maintenance-free and does not require service. For servicing a replacement battery, refer to the battery manufacturer’s instructions.

    Servicing the Fuses

    The electrical system is protected by fuses. It requires no maintenance; however, if a fuse blows, check the component/circuit for a malfunction or a short.

    g529686

    Figure 56

    1. Fuse (7.5 A)
    2. Fuse (2 A)
    3. Fuse (15 A)
    4. Fuse (15 A)

    Note: If the machine does not start, either the main circuit or control panel/relay fuse could be blown.

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Open the hood.

    4. Check the fuses; replace them as needed.

    5. Close the hood.

    Drive System Maintenance

    Servicing the Tracks

    Maintenance Service IntervalMaintenance Procedure
    After the first 50 hours
  • Check and adjust the track tension.
    		•
    Before each use or daily
  • Clean the tracks.
  • Check the tracks for excessive wear(If the tracks are worn, replace them).
    		•
    Every 100 hours
  • Check and adjust the track tension.
    		•
    Every 250 hours
  • Check and grease the road wheels.
    		•

    Cleaning the Tracks

    1. Park the machine on a level surface and engage the parking brake.

    2. With the bucket installed and pointing down, lower it into the ground so that the front of the traction unit lifts off the ground a few centimeters (inches).

      g526990

      Figure 57

      1. Drive sprocket
      2. Road wheels (5)
      3. Track
      4. Tension wheel

    3. Shut off the engine and remove the key.

    4. Using a water hose or pressure washer, remove dirt from each track system.

    Important: Ensure that you use high-pressure water to wash only the track area. Do not use a high-pressure washer to clean the rest of the machine. Do not use high-pressure water between the drive sprocket and the machine or you may damage the motor seals. High-pressure washing can damage the electrical system and hydraulic valves or deplete grease.

    Important: Ensure that you fully clean the road wheels, the tension wheel, and the drive sprocket. The road wheels should rotate freely when clean.

    Checking and Adjusting the Track Tension

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Remove the cover.

      g527085

      Figure 58

    4. Verify that the distance between the tension nut and the back of the tension tube is 7 cm (2-3/4 inches).

      • If the distance is incorrect, continue this procedure.

      • If the distance is correct, proceed to step 10.

      g527099

      Figure 59

    5. Lift/support the side of the unit to be worked on so that the track is off the ground.

    6. Remove the locking bolt, spacer, and nut.

      g527098

      Figure 60

      1. Nut
      2. Spacer
      3. Locking bolt

    7. Using a 1/2-inch drive ratchet, turn the tensioning screw counterclockwise until the distance between the tension nut and the back of the tension tube is 7 cm (2-3/4 inches).

      g527097

      Figure 61

    8. Align the closest notch in the tension screw to the locking bolt hole and secure the screw with the locking bolt, spacer, and nut.

    9. Lower the traction unit to the ground.

    10. Install the cover.

    Replacing the Tracks

    When the tracks are badly worn, replace them.

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Lift/support the side of the unit to be worked on so that the track is 8 to 10 cm (3 to 4 inches) off the ground.

    4. Remove the locking bolt, spacer, and nut.

      g527098

      Figure 62

      1. Nut
      2. Spacer
      3. Locking bolt

    5. Using a 1/2-inch drive ratchet, release the drive tension by turning the tensioning screw clockwise.

      g527097

      Figure 63

    6. Push the tension wheel toward the rear of the unit to move the tension tube against the frame.

      Note: If it does not touch the frame, continue turning the tensioning screw until it does.

      g527131

      Figure 64

      1. Drive sprocket
      2. Road wheel (5)
      3. Tension tube
      4. Tension wheel

    7. Begin removing the track at the top of the tension wheel, peeling it off the wheel while rotating the track forward.

    8. When the track is off the tension wheel, remove it from the drive sprocket and road wheels.

    9. Beginning at the drive sprocket, coil the new track around the sprocket, ensuring that the lugs on the track fit between the cogs on the sprocket.

    10. Push the track under and between the road wheels.

    11. Starting at the bottom of the tension wheel, install the track around the wheel by rotating the track rearward while pushing the lugs into the wheel.

    12. Turn the tensioning screw counterclockwise until the distance between the tension nut and the back of the tension tube is 7 cm (2-3/4 inches).

      g527099

      Figure 65

    13. Align the closest notch in the tension screw to the locking bolt hole and secure the screw with the locking bolt and nut.

    14. Lower the traction unit to the ground.

    15. Repeat steps 3 through 14 to replace the other track.

    Maintaining the Road Wheels

    1. Remove the tracks; refer to Replacing the Tracks.

    2. Remove the 4 bolts securing each lower track guide and remove the track guide.

      g527435

      Figure 66

      1. Lower track guide
      2. Road wheel (5)
      3. Bolt (4)

    3. Remove the snap ring and cap from a road wheel.

      g527434

      Figure 67

      1. Snap ring
      2. Cap
      3. Road wheel
      4. Gasket

    4. Check the grease under the cap and around the gasket. If it is dirty, gritty, or depleted, clean out all of the grease, replace the gasket, and add new grease.

    5. Ensure that the road wheel turns smoothly on the bearing. If it does not, replace the road wheel; refer to the Installation Instructions for a road wheel kit or contact your Authorized Service Dealer for repair.

    6. Install the greased cap and secure it with the snap ring.

    7. Repeat steps 3 through 6 for the other road wheels.

    8. Install the track guides to the machine. Torque the bolts to 91 to 112 N∙m (67 to 83 ft-lb).

    9. Install the tracks; refer to Replacing the Tracks.

    Brake Maintenance

    Testing the Parking Brake

    Maintenance Service IntervalMaintenance Procedure
    Before each use or daily
  • Test the parking brake.
    		•

    1. Engage the parking-brake; refer to Parking-Brake Lever.

    2. Start the engine.

    3. Slowly attempt to drive the machine forward or rearward.

    4. If the machine moves, contact your Authorized Service Dealer for service.

    Belt Maintenance

    Inspecting and Replacing the Drive Belt

    Maintenance Service IntervalMaintenance Procedure
    Every 25 hours
  • Inspect the drive belt for wear or damage.
    		•
    Every 200 hours
  • Replace the drive belt.
    		•

    To replace the drive belt, complete the following procedure:

    Note: To complete this procedure, you need a sturdy metal hook to disconnect the idler-pulley spring, such as the spring-removal tool (Toro Part No. 92-5771) available for order from your Authorized Service Dealer.

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Open the hood.

    4. Connect the hook on the spring-removal tool to the hook on the idler pulley spring, and disconnect the spring from the stud.

      g005547

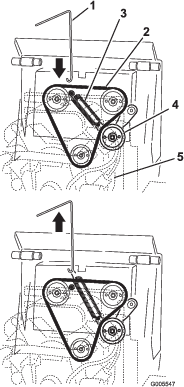

      Figure 68

      Spring cover not shown

      1. Spring-removal tool
      2. Drive belt
      3. Idler pulley spring
      4. Idler pulley
      5. Engine (see-through for illustrative purposes)

    5. Remove the idler pulley spring from the idler-pulley assembly.

      g243518

      Figure 69

      Spring cover not shown

      1. Idler-pulley assembly
      2. Drive-belt routing

    6. Remove the belt from the 3 pulleys.

      g005549

      Figure 70

      Spring cover not shown

    7. Install a new drive belt around the 3 pulleys.

    8. Install the end of the idler pulley spring to the arm on the idler-pulley assembly.

      Important: If you have removed the spring cover, ensure to install it over the spring at this time.

    9. Using the spring-removal tool, pull the idler spring hook up and around the stud on the traction unit, pulling the idler pulley tight.

    10. Remove the spring-removal tool from the spring and close the hood.

    Controls System Maintenance

    Adjusting the Controls

    The factory adjusts the controls before shipping the machine. However, after many hours of use, you may need to adjust the traction control alignment, the NEUTRAL position of the traction control, and the tracking of the traction control in the full forward position.

    Important: To adjust the controls properly, complete each procedure in the order listed.

    Adjusting the Traction Control Alignment

    If the traction control bar does not rest flush and square with the reference bar when in the full backward position, immediately complete the following procedure:

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Pull straight back on the traction control so the front of the control contacts the reference bar.

      g004190

      Figure 71

      1. Front of the control (out of alignment)
      2. Reference bar

    4. If the front of the traction control does not rest square and flush with the reference bar, loosen the flange nut and bolt in the stem of the traction control.

      g004191

      Figure 72

      1. Traction control
      2. Stem, bolt, and nut

    5. Adjust the traction control so that it rests flush against the reference bar when you pull it straight back.

      g004192

      Figure 73

    6. Tighten the flange nut and bolt in the traction control stem.

    Adjusting the Traction Control Neutral Position

    If the machine creeps forward or backward when the traction control is in the NEUTRAL position and the unit is warm, immediately complete the following procedure:

    1. Lift/support the machine so that both tracks are off the ground.

    2. Open the rear-access cover.

    3. Loosen the jam nuts on the traction rods, under the control panel.

      g013014

      Figure 74

      1. Traction rod
      2. Jam nut

    4. Start the traction unit and set the throttle to about 1/3 open position.

      Warning

      When the machine is running, you could be caught and injured in moving parts or burned on hot surfaces.

      Stay away from pinch points, moving parts, and hot surfaces when adjusting the running machine.

    5. If the left track moves, lengthen or shorten the right traction rod until the track stops moving.

    6. If the right track moves, lengthen or shorten the left traction rod until the track stops moving.

    7. Tighten the jam nuts.

    8. Close the rear-access cover.

    9. Shut off the engine and lower the machine to the ground.

    10. Drive the machine in full reverse, checking to see if the unit tracks straight. If it does not, note the direction it veers. Repeat the adjustment previously described so that it tracks straight in reverse.

    Adjusting the Tracking of the Traction Control, Full Forward Position

    If the machine does not drive straight when you hold the traction control against the reference bar, complete the following procedure:

    1. Drive the machine with the traction control against the reference bar, noting which direction the traction unit veers.

    2. Release the traction control.

    3. If the traction unit veers to the left, loosen the right jam nut and adjust the tracking set screw on the front of the traction control.

    4. If the traction unit veers to the right, loosen the left jam nut and adjust the tracking set screw on the front of the traction control.

      g004194

      Figure 75

      1. Set screw
      2. Jam nut
      3. Stop

    5. Repeat the procedure until the machine drives straight in the full forward position.

      Important: Ensure that the tracking set screws touch the stops in the full forward position to avoid over stroking the hydraulic pumps.

    Hydraulic System Maintenance

    Hydraulic System Safety

    • Seek immediate medical attention if fluid is injected into skin. Injected fluid must be surgically removed within a few hours by a doctor.

    • Ensure that all hydraulic-fluid hoses and lines are in good condition and all hydraulic connections and fittings are tight before applying pressure to the hydraulic system.

    • Keep your body and hands away from pinhole leaks or nozzles that eject high-pressure hydraulic fluid.

    • Use cardboard or paper to find hydraulic leaks.

    • Safely relieve all pressure in the hydraulic system before performing any work on the hydraulic system.

    Relieving Hydraulic Pressure

    To relieve hydraulic pressure while the engine is on, disengage the auxiliary hydraulics and fully lower the loader arms.

    To relieve the pressure while the engine is off, move the auxiliary-hydraulics lever between the forward and reverse flow positions to relieve auxiliary hydraulic pressure, and cycle the loader-arm/attachment-tilt lever between the forward positions to lower the loader arms.

    g280733

    Figure 76

    Hydraulic-Fluid Specifications

    Maintenance Service IntervalMaintenance Procedure
    Every 100 hours
  • Check the hydraulic lines for leaks, loose fittings, kinked lines, loose mounting supports, wear, weather, and chemical deterioration.(Make necessary repairs before operating.)
    		•
    Every 1,500 hours
  • Replace all moving hydraulic hoses.
    		•

    Hydraulic Tank Capacity: 45.4 L (12 US gallons)

    Use only 1 of the following fluids in the hydraulic system:

    • Toro Premium Transmission/Hydraulic Tractor Fluid (refer to your Authorized Toro Dealer for more information)

    • Toro PX Extended Life Hydraulic Fluid (refer to your Authorized Toro Dealer for more information)

    • If either of the above Toro fluids are not available, you may use another Universal Tractor Hydraulic Fluid (UTHF), but they must be only conventional, petroleum-based products. The specifications must fall within the listed range for all the following material properties and the fluid should meet the listed industry standards. Check with your hydraulic fluid supplier to determine if the fluid meets these specifications.

      Note: Toro does not assume responsibility for damage caused by improper substitutions, so use only products from reputable manufacturers who will stand behind their recommendations.

      Material Properties
      Viscosity, ASTM D445cSt at 40°C: 55 to 62
      cSt at 100°C: 9.1 to 9.8
      Viscosity index, ASTM D2270140 to 152
      Pour Point, ASTM D97-37 to -43°C (-35 to -46°F)
      Industry Standards
      API GL-4, AGCO Powerfluid 821 XL, Ford New Holland FNHA-2-C-201.00, Kubota UDT, John Deere J20C, Vickers 35VQ25 and Volvo WB-101/BM

      Note: Many hydraulic fluids are almost colorless, making it difficult to spot leaks. A red dye additive for the hydraulic system fluid is available in 20 ml (2/3 fl oz) bottles. One bottle is sufficient for 15 to 22 L (4 to 6 US gallons) of hydraulic fluid. Order Part No. 44-2500 from your Authorized Service Dealer.

    Checking the Hydraulic-Fluid Level

    Maintenance Service IntervalMaintenance Procedure
    Every 25 hours
  • Check the hydraulic-fluid level.
    		•

    Check the hydraulic-fluid level before the engine is first started and after every 25 operating hours.

    Refer to Hydraulic-Fluid Specifications for hydraulic-fluid specifications.

    Important: Always use the correct hydraulic fluid. Unspecified fluids will damage the hydraulic system.

    1. Remove any attachments.

    2. Park the machine on a level surface, lower the loader arms, and fully retract the tilt cylinder.

    3. Shut off the engine, remove the key, and allow the engine to cool.

    4. Open the hood and remove the left side screen.

    5. Clean the area around the filler neck of the hydraulic tank.

      g529585

      Figure 77

      1. Filler-neck cap

    6. Remove the filler-neck cap and check the fluid level on the dipstick.

      Note: The fluid level should be between the marks on the dipstick.

      g529584

      Figure 78

      1. Filler neck
      2. Dipstick

    7. If the level is low, add enough fluid to raise it to the proper level.

    8. Install the filler-neck cap.

    9. Install the left side screen and close the hood.

    Replacing the Hydraulic Filter

    Maintenance Service IntervalMaintenance Procedure
    After the first 8 hours
  • Replace the hydraulic filter.
    		•
    Every 200 hours
  • Replace the hydraulic filter.
    		•

    Important: Do not substitute an automotive oil filter; otherwise, severe hydraulic system damage may result.

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Open the rear-access cover.

    4. Place a drain pan under the filter and replace the filter.

      g373564

      Figure 79

    5. Clean up any spilled fluid.

    6. Start the engine and let it run for about 2 minutes to purge air from the system.

    7. Shut off the engine, remove the key, and check for leaks.

    8. Check the fluid level in the hydraulic tank and add fluid to raise the level to the mark on the dipstick; refer toChecking the Hydraulic-Fluid Level.

      Important: Do not overfill the tank.

    9. Close the rear-access cover.

    Changing the Hydraulic Fluid

    Maintenance Service IntervalMaintenance Procedure
    Every 400 hours
  • Change the hydraulic fluid.
    		•

    1. Park the machine on a level surface, remove any attachments, and engage the parking brake.

    2. Raise the loader arms and install the cylinder lock.

    3. Shut off the engine, remove the key, and allow the engine to cool.

    4. Open the hood and remove the left side screen.

    5. Loosen, but do not remove, the 4 bolts securing the front weights.

      g529586

      Figure 80

      1. Front weights
      2. Slope plate

    6. Remove the slope plate.

    7. Remove the hydraulic-tank cap and dipstick.

      g529584

      Figure 81

      1. Filler neck
      2. Dipstick

    8. Place a large drain pain capable of holding 57 L (15 US gallons) under the drain plug on the front of the machine.

      g529647

      Figure 82

    9. Remove the drain plug and allow the oil to drain into the pan.

    10. When finished, install and tighten the drain plug.

      Note: Dispose of the used oil at a certified recycling center.

    11. Fill the hydraulic tank with hydraulic fluid as specified in Hydraulic-Fluid Specifications.

    12. Start the engine and let it run for a few minutes.

    13. Shut off the engine.

    14. Check the hydraulic-fluid level and add fluid to fill the tank if necessary; refer to Checking the Hydraulic-Fluid Level.

    15. Install the slope plate.

    16. Tighten the bolts securing the front weights.

    17. Install the side screen and close the hood.

    Cleaning

    Removing Debris

    Maintenance Service IntervalMaintenance Procedure
    Before each use or daily
  • Remove debris from the machine.
    		•

    Important: Operating the engine with blocked screens and/or cooling shrouds removed will result in engine damage from overheating.

    1. Park the machine on a level surface and lower the loader arms.

    2. Shut off the engine, remove the key, and allow the engine to cool.

    3. Open the hood and secure the prop rod.

    4. Clean any debris from the front and side screens.

    5. Wipe away debris from the air cleaner.

    6. Clean any debris buildup on the engine and in the oil cooler fins with a brush or blower.

      Important: Operating the engine with blocked screens and/or cooling shrouds removed will result in engine damage due to overheating.

    7. Clean debris from the hood opening, muffler, heat shields, and radiator screen (if applicable).

    8. Close the hood.

    Washing the Machine

    When pressure washing the machine, do the following:

    • Wear appropriate personal protective equipment for the pressure washer.

    • Keep all guards in place on the machine.

    • Avoid spraying at electronic components.

    • Avoid spraying at edges of decals.

    • Spray the exterior of the machine only. Do not spray directly into openings in the machine.

    • Spray only the dirty parts of the machine.

    • Use a 40-degree or larger spray nozzle. 40-degree nozzles are usually white.

    • Keep the tip of the pressure washer at least 61 cm (2 ft) away from the surface being washed.

    • Use only pressure washers with pressure below 13790 kpa (2000 psi) and flow below 7.6 L (2 US gallons) per minute.

    • Replace damaged or peeling decals.

    • Grease all grease points after washing; refer to Greasing the Machine.

    Cleaning the Chassis

    Maintenance Service IntervalMaintenance Procedure
    Every 100 hours
  • Check for dirt buildup in the chassis.
    		•

    Over time, the chassis under the engine collects dirt and debris that must be removed. Using a flashlight, open the hood and inspect the area under the engine regularly. When the debris is 2.5 to 5 cm (1 to 2 inches) deep, clean the chassis.

    1. Remove any attachments.

    2. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    3. Shut off the engine and remove the key.

    4. Lift and support the front of the machine.

      Warning

      Mechanical or hydraulic jacks could fail to support the machine, which could result in death or serious injury.

      Use jack stands when supporting the machine.

    5. Open the rear-access cover.

    6. Remove the fuel tank; refer to Removing the Fuel Tank.

    7. Remove any large deposits of debris.

    8. Wash out the chassis with water until the water running out the back of the unit is clear.

      Important: Ensure that water does not get into the engine or electrical components.

    9. Install the fuel tank; refer to Installing the Fuel Tank.

    10. Close the rear-access panel.

    11. Lower the machine to the ground.

    Storage

    Storage Safety

    • Shut off the engine, remove the key, wait for all moving parts to stop, and allow the machine to cool before storing it.

    • Do not store the machine or fuel near flames.

    Storage

    Maintenance Service IntervalMaintenance Procedure
    Before each use or daily
  • Check for loose fasteners.
    		•
    Yearly or before storage
  • Check and adjust the track tension.
  • Touch up chipped paint.
    		•

    1. Park the machine on a level surface, engage the parking brake, and lower the loader arms.

    2. Shut off the engine and remove the key.

    3. Remove dirt and grime from the external parts of the entire machine, especially the engine. Clean dirt and chaff from the outside of both the cylinder head fins and blower housing of the engine.

      Important: You can wash the machine with mild detergent and water. Do not pressure-wash the machine. Avoid excessive use of water, especially near the control panel, engine, hydraulic pumps, and motors.

    4. Service the air cleaner; refer to Servicing the Air Cleaner.

    5. Grease the machine; refer to Greasing the Machine.

    6. Change the engine oil; refer to Changing the Engine Oil.

    7. Remove the spark plugs and check the condition of each; refer to Servicing the Spark Plug(s).

    8. With the spark plugs removed from the engine, pour 30 ml (2 tablespoons) of engine oil into each spark-plug hole.

    9. Place rags over the spark-plug holes to catch any oil spray, then use the starter to crank the engine and distribute the oil inside the cylinder.

    10. Install the spark plugs, but do not install the wires on the spark plugs.

    11. Charge the battery; refer to Servicing the Spark Plug(s).

    12. For storage over 30 days, prepare the machine as follows:

      1. Add a petroleum-based stabilizer/conditioner to fuel in the tank. Follow the mixing instructions from the fuel-stabilizer manufacturer. Do not use an alcohol-based stabilizer (ethanol or methanol).

        Note: A fuel stabilizer/conditioner is most effective when you mix it with fresh fuel and use it at all times.

      2. Run the engine to distribute conditioned fuel through the fuel system for 5 minutes.

      3. Shut off the engine, allow it to cool and drain the fuel tank using a pump-type syphon.

      4. Start the engine and run it until it shuts off.

      5. Choke the engine.

      6. Start and run the engine until it does not start again.

      7. Dispose of fuel properly. Recycle it according to local codes.

      Important: Do not store fuel containing stabilizer/conditioner longer than the duration recommended by the fuel-stabilizer manufacturer.

    13. Check and adjust the track tension; refer to Checking and Adjusting the Track Tension.

    14. Check and tighten all fasteners. Repair or replace any worn, damaged, or missing parts.

    15. Paint all scratched or bare metal surfaces with paint is available from your Authorized Service Dealer.

    16. Store the machine in a clean, dry garage or storage area. Remove the key from the ignition switch and keep it in a memorable place.

    17. Cover the machine to protect it and keep it clean.

    Decommissioning the Machine

    Before decommissioning the machine, follow local regulations for disposing of hazardous substances. For more information on draining fluids, see the Maintenance chapter or contact your Authorized Service Dealer.

    Troubleshooting

    ProblemPossible CauseCorrective Action
    The engine does not start, starts hard, or fails to keep running.
    1. The starting procedure is incorrect.
    2. The fuel tank is empty.
    3. The choke is not engaged.
    4. The air cleaner is dirty.
    5. The spark plug wires are loose or disconnected.
    6. The spark plugs are pitted, fouled, or the gap is incorrect.
    7. There is dirt in the fuel filter.
    8. Dirt, water, stale fuel, or incorrect fuel is in the fuel system.
    1. Use the correct starting procedure.
    2. Fill the tank with fresh fuel.
    3. Engage the choke.
    4. Clean or replace the air-cleaner elements.
    5. Install the wires on the spark plugs.
    6. Install new, correctly gapped spark plugs.
    7. Replace the fuel filter.
    8. Contact your Authorized Service Dealer.
    The engine loses power.
    1. The engine load is excessive.
    2. The high-idle speed is low.
    3. The air cleaner is dirty.
    4. The engine-oil level is incorrect.
    5. The cooling fins and air passages under the engine blower housing are plugged.
    6. The spark plugs are pitted, fouled, or the gap is incorrect.
    7. There is dirt in the fuel filter.
    8. Dirt, water, stale fuel, or incorrect fuel is in the fuel system.
    1. Reduce the load; use a lower ground speed.
    2. Contact your Authorized Service Dealer.
    3. Clean or replace the air cleaner elements.
    4. Fill or drain to the Full mark.
    5. Remove any obstructions from the cooling fins and air passages.
    6. Install new, correctly gapped spark plugs.
    7. Replace the fuel filter.
    8. Contact your Authorized Service Dealer.
    The engine overheats.
    1. The engine load is excessive.
    2. The high-idle speed is low.
    3. The engine-oil level is incorrect.
    4. The cooling fins and air passages under the engine blower housing are plugged.
    1. Reduce the load; use a lower ground speed.
    2. Contact your Authorized Service Dealer.
    3. Fill or drain to the Full mark.
    4. Remove any obstructions from the cooling fins and air passages.
    There is abnormal vibration.
    1. The engine mounting bolts are loose.
    1. Tighten the engine mounting bolts.
    The machine does not drive.
    1. The parking brake is engaged.
    2. The hydraulic-fluid level is low.
    3. The hydraulic system is damaged.
    1. Disengage the parking brake.
    2. Add hydraulic fluid to the reservoir.
    3. Contact your Authorized Service Dealer.
