| Maintenance Service Interval | Maintenance Procedure |
|---|---|
| After each use |
|
Introduction
This rotary-blade, walk-behind lawn mower is intended to be used by residential homeowners. It is designed primarily for cutting grass on well-maintained lawns on residential properties. It is not designed for cutting brush or for agricultural uses. It is designed to use Flex-Force 60V lithium-ion battery packs. These battery packs are designed to be charged only by Flex-Force 60V lithium-ion battery chargers. Using these products for purposes other than their intended use could prove dangerous to you and bystanders.
Read this information carefully to learn how to operate and maintain your product properly and to avoid injury and product damage. You are responsible for operating the product properly and safely.
Visit www.Toro.com for more information, including safety tips, training materials, accessory information, help finding a dealer, or to register your product.
Whenever you need service, genuine Toro parts, or additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and serial numbers of your product ready. Figure 1 identifies the location of the model and serial numbers on the product. Write the numbers in the space provided.
Important: With your mobile device, you can scan the QR code on the serial number decal (if equipped) to access warranty, parts, and other product information.
Safety-Alert Symbol
The safety-alert symbol (Figure 2) shown in this manual and on the machine identifies important safety messages that you must follow to prevent accidents.
The safety-alert symbol appears above information that alerts you to unsafe actions or situations and is followed by the word DANGER, WARNING, or CAUTION.
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
This manual uses two other words to highlight information. Important calls attention to special mechanical information and Note emphasizes general information worthy of special attention.
 |
For assistance, please see www.Toro.com/support for instructional videos or contact 1-888-384-9939 before returning this product. |
Warning
CALIFORNIA
Proposition 65 Warning
The power cord on this product contains lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.
Use of this product may cause exposure to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Safety
IMPORTANT SAFETY
INSTRUCTIONS
Warning
When using electric lawn mowers, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:
Read All Instructions
I. Training
-
The operator of the machine is responsible for any accidents or hazards occurring to others or their property.
-
Do not allow children to use or play with the machine, battery pack, or the battery charger; local regulations may restrict the age of the operator.
-
Do not allow children or untrained people to operate or service this machine. Allow only people who are responsible, trained, familiar with the instructions, and physically capable to operate or service the machine.
-
Before using the machine, battery pack, and battery charger, read all the instructions and cautionary markings on these products.
-
Become familiar with the controls and proper use of the machine, battery pack, and battery charger.
II. Preparation
-
Keep bystanders, especially children and pets, out of the operating area.
-
Do not operate the machine without all guards and safety devices, such as deflectors and grass catchers, in place and functioning properly on the machine.
-
Inspect the area where you will use the machine and remove all objects that could interfere with the operation of the machine or that the machine could throw.
-
Before using the machine, ensure that the blade, blade bolt, and blade assembly are not worn or damaged. Replace any damaged or unreadable labels.
-
Use only the battery pack specified by Toro. Using other accessories and attachments may increase the risk of injury and fire.
-
Plugging the battery charger into an outlet that is not 120V can cause a fire or electric shock. Do not plug the battery charger into an outlet other than 120V. For a different style of connection, use an attachment plug adapter of the proper configuration for the power outlet if needed.
-
Do not use a damaged or modified battery pack or battery charger, which may exhibit unpredictable behavior that results in fire, explosion, or risk of injury.
-
If the supply cord to the battery charger is damaged, contact an Authorized Service Dealer to replace it.
-
Charge the battery pack with only the battery charger specified by Toro. A charger suitable for 1 type of battery pack may create a risk of fire when used with another battery pack.
-
Charge the battery pack in a well-ventilated area only.
-
Follow all charging instructions and do not charge the battery pack outside of the temperature range specified in the instructions. Otherwise, you may damage the battery pack and increase the risk of fire.
-
Dress properly—Wear appropriate clothing, including eye protection; long pants; substantial, slip-resistant footwear (not barefoot or wearing sandals); and hearing protection. Tie back long hair and do not wear loose clothing or loose jewelry that can get caught in moving parts. Wear a dust mask in dusty operating conditions. Use of rubber gloves is recommended.
III. Operation
-
Contact with the moving blade will cause serious injury. Keep your hands and feet away from the cutting area and all moving parts of the machine. Keep clear of any discharge opening.
-
Using this machine for purposes other than its intended use could prove dangerous to you and bystanders.
-
Disengage the self-propel drive (if equipped) before starting the machine.
-
Do not tilt the machine when starting the motor.
-
Prevent unintentional starting—Ensure that the electric-start button is removed from the electric-start switch before connecting the battery pack and handling the machine.
-
Use your full attention while operating the machine. Do not engage in any activity that causes distractions; otherwise, injury or property damage may occur.
-
Stop the machine, remove the electric-start button, remove the battery pack from the machine, and wait for all movement to stop before adjusting, servicing, cleaning, or storing the machine.
-
Remove the battery pack and electric-start button from the machine whenever you leave it unattended or before changing accessories.
-
Do not force the machine—Allow the machine to do the job better and safer at the rate for which it was designed.
-
Stay alert—Watch what you are doing and use common sense when operating the machine. Do not use the machine while ill, tired, or under the influence of alcohol or drugs.
-
Do not use a battery-operated lawn mower in rain.
-
Operate the machine only in good visibility and appropriate weather conditions. Do not operate the machine when there is the risk of lightning.
-
Use extreme caution when reversing or pulling the machine toward you.
-
Keep proper footing and balance at all times, especially on slopes. Mow across the face of slopes, never up and down. Use extreme caution when changing directions on slopes. Do not mow exceedingly steep slopes. Walk, never run with the machine.
-
Do not direct the discharge material toward anyone. Avoid discharging material against a wall or obstruction; material may ricochet toward you. Stop the blade(s) when crossing surfaces other than grass.
-
Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could cause you to lose your balance or footing.
-
Wet grass or leaves can cause serious injury if you slip and contact the blade. Do not mow in wet conditions. Do not mow when it is raining.
-
If the machine strikes an object or starts to vibrate, immediately shut off the machine, remove the electric-start button, remove the battery pack, and wait for all movement to stop before examining the machine for damage. Make all necessary repairs before resuming operation.
-
Stop the machine and remove the electric-start button before loading the machine for hauling.
-
Under abusive conditions, the battery pack may eject liquid; avoid contact. If you accidently come into contact with the liquid, flush with water. If the liquid contacts your eyes, seek medical help. Liquid ejected from the battery pack may cause irritation or burns.
IV. Maintenance and Storage
-
Stop the machine, remove the electric-start button, remove the battery pack from the machine, and wait for all movement to stop before adjusting, servicing, cleaning, or storing the machine.
-
Do not attempt to repair the machine except as indicated in the instructions. Have an Authorized Service Dealer perform service on the machine using identical replacement parts.
-
Wear gloves and eye protection when servicing the machine.
-
Sharpen a dull blade on both edges to maintain balance. Clean the blade and ensure that it is balanced.
-
Replace the blade if it is bent, worn, or cracked. An unbalanced blade causes vibration, which could damage the motor or cause personal injury.
-
When servicing the blade, be aware that the blade can still move even though the power source is off.
-
Check the grass collection bag frequently for deterioration or wear, and replace a worn bag with a Toro [replacement] bag.
-
For best performance, use only genuine Toro replacement parts and accessories. Other replacement parts and accessories could be dangerous, and such use could void the product warranty.
-
Maintain the machine—Keep cutting edges sharp and clean for the best and safest performance. Keep handles dry, clean, and free from oil and grease. Keep guards in place and in working order. Keep blades sharp. Use identical replacement blades only.
-
Check the machine for damaged parts—If there are damaged guards or other parts, determine whether the machine will operate properly. Check for misaligned and binding moving parts, broken parts, mounting, and any other condition that may affect its operation. Unless indicated in the instructions, have an Authorized Service Dealer repair or replace a damaged guard or part.
-
When the battery pack is not in use, keep it away from metal objects such as paper clips, coins, keys, nails, and screws that can make a connection from 1 terminal to another. Shorting the battery terminals may cause burns or a fire.
-
Check the blade and motor mounting bolts frequently for tightness.
-
When you are not using the machine, store it indoors in a dry, secure place out of the reach of children.
-
Do not expose a battery pack or machine to fire or excessive temperature. Exposure to fire or temperature above 130°C (265°F) may cause explosion.
-
CAUTION—A mistreated battery pack may present a risk of fire, explosion, or chemical burn.
-
Do not disassemble the battery pack.
-
Replace the battery pack with a genuine Flex-Force 60V lithium-ion battery pack only; using another type of battery pack may cause a fire or risk of injury.
-
Keep battery packs out of the reach of children and in the original packaging until you are ready to use them.
-
SAVE THESE
INSTRUCTIONS
Safety and Instructional Decals
 |
Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. |
Model 88980
Model 88602
Setup
Important: The battery pack is not fully charged when it is purchased. Before using the machine for the first time, refer to Charging the Battery Pack.
Mounting the Battery Charger (Optional)
If desired, mount the battery charger securely on a wall using the wall-mount key holes on the back of the charger.
Mount it indoors (such as a garage or other dry place), near a power outlet, and out of the reach of children.
Refer to Figure 3 for assistance in mounting the charger.
Slide the charger over the appropriately positioned hardware to secure the charger in place (hardware not included).

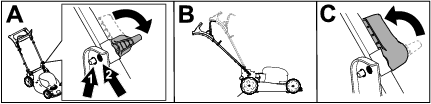

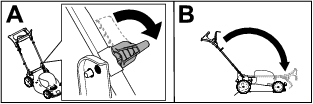

Unfolding the Handle
Warning
Folding or unfolding the handle improperly can damage the cables, causing an unsafe operating condition.
-
Do not damage the cable(s) when folding or unfolding the handle.
-
Ensure that the cable(s) are routed to the outside of the handle.
-
If a cable is damaged, contact an Authorized Service Dealer.
Note: Ensure that the cables are routed on the outside of the handle and are not pinched (D of Figure 4).

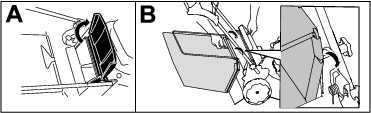

Assembling the Grass Bag

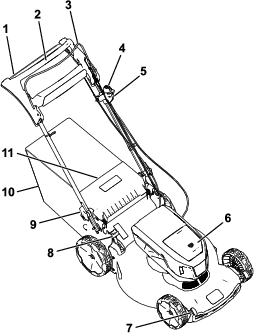

Product Overview
| Model | 88980 | ||
| Battery pack capacity | 8.0 Ah | ||
| 432 Wh | |||
|
Battery manufacturer rating = 60V maximum and 54V nominal. Actual voltage varies with load. |
|||
| Model | 88602 | |
| Type | 60V MAX Lithium-Ion Battery Charger | |
| Input | 120V AC ~2.0A, 60Hz | |
| Output | 60V DC  2.0A MAX |
|
| Charge/store the battery pack at | 5°C (41°F) to 40°C (104°F)* |
| Use the battery pack at | -30°C (-22°F) to 49°C (120°F)* |
| Use the machine at | 0°C (32°F) to 49°C (120°F)* |
*Charging time will increase if you do not charge the battery pack within this range.
Store the machine, battery pack, and battery charger in an enclosed clean, dry area.
Attachments/Accessories
A selection of Toro approved attachments and accessories is available for use with the machine to enhance and expand its capabilities. Contact your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com for a list of all approved attachments and accessories.
To ensure optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories. Replacement parts and accessories made by other manufacturers could be dangerous.
Operation
Before Operation
Installing the Battery Pack
Important: Use the battery pack only in temperatures that are within the appropriate range; refer to Specifications.
-
Ensure that the vents on the battery are clear of any dust and debris.
-
Press down on the battery-compartment lid to open it (A of Figure 8).
-
Line up the cavity in the battery pack with the tongue on the machine and slide the battery pack into the compartment until it locks into place (B of Figure 8).
-
Press down on the battery-compartment lid until it clicks into place (C of Figure 8).
Note: If the battery-compartment lid does not close completely, the battery is not fully installed.

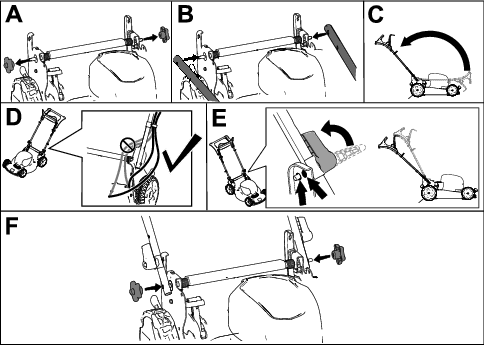

Adjusting the Handle Height
You may raise or lower the handle to a position comfortable for you.
To adjust the handle height, do the following:
-
On both sides of the machine, rotate the handle locks (A of Figure 9).
-
Adjust the position of the handle to the upper (high handle height) or lower (lower handle height) position (B of Figure 9).
-
When the handle is in the desired position, rotate the handle locks back until the pin clicks to secure the handle (C of Figure 9).

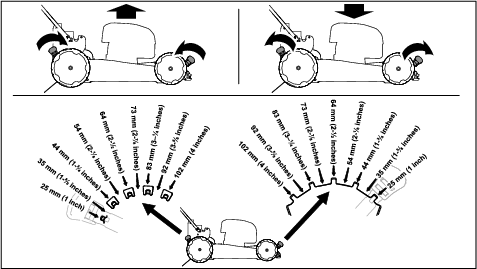

Adjusting the Cutting Height
Danger
Adjusting the height-of-cut could bring your hands into contact with a moving blade and result in serious injury.
-
Shut off the motor, remove the battery, and wait for all moving parts to stop before adjusting the cutting height.
-
Do not put your fingers under the housing when adjusting the cutting height.
Adjust the cutting height as desired. Set all wheels to the same cutting height (Figure 10).
During Operation

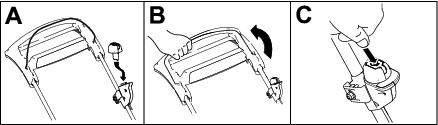

Starting the Machine
-
Ensure that the battery pack is installed in the machine; refer to Installing the Battery Pack.
Note: If the battery-compartment lid does not close completely, the battery is not fully installed.
-
Insert the electric-start button into the electric-start switch (A of Figure 11).
-
Squeeze the blade-control bar and hold it to the handle (B of Figure 11).
-
Press the electric-start button and keep it pressed until the motor starts (C of Figure 11).
Using the Self-Propel Drive
Simply walk with your hands on the upper handle and your elbows at your sides, and the machine will automatically keep pace with you (Figure 12).
Note: If the machine does not freely roll backward after self-propelling, stop walking, hold your hands in place, and allow the machine to roll a couple of centimeters (inches) forward to disengage the wheel drive. You can also try reaching just under the upper handle to the metal handle and pushing the machine forward a couple of centimeters (inches). If the machine still does not roll backward easily, contact an Authorized Service Dealer.
Recycling the Clippings
Your machine comes from the factory ready to recycle the grass and leaf clippings back into the lawn.
If the grass bag is on the machine and the bag-on-demand lever is in the bagging position, move the lever to the recycling position; refer to Operating the Bag-on-Demand Lever.
Bagging the Clippings
Use the grass bag when you want to collect grass and leaf clippings from the lawn.
If the bag-on-demand lever is in the recycling position, move it to the bagging position; refer to Operating the Bag-on-Demand Lever.
Installing the Grass Bag
Removing the Grass Bag
To remove the bag, reverse the steps in Installing the Grass Bag.
Operating the Bag-on-Demand Lever
The bag-on-demand feature allows you to either collect or recycle grass and leaf clippings while the grass bag is attached to the machine.
-
To bag the grass and leaf clippings, press the button on the bag-on-demand lever and move the lever forward until the button on the lever pops up (Figure 14).
-
To recycle the grass and leaf clippings, press the button on the lever and move the lever rearward until the button on the lever pops up.
Important: For proper operation, remove any grass clippings and debris from the bag-on-demand door and the surrounding opening (Figure 15) before you move the bag-on-demand lever from 1 position to another.
Shutting Off the Machine
-
Release the blade-control bar (A of Figure 16).
-
Remove the electric-start button from the electric-start switch (B of Figure 16).
-
Remove the battery pack; refer to Removing the Battery Pack from the Machine.
Note: Whenever you are not using the machine, remove the battery pack.
Removing the Battery Pack from the Machine
-
Lift up the battery-compartment lid.
-
Press the battery-pack latch to release the battery pack and remove the battery pack.
-
Close the battery-compartment lid.
Operating Tips
General Mowing Tips
-
Inspect the area where you will use the machine and remove all objects that the machine could throw.
-
Avoid striking solid objects with the blade. Never deliberately mow over any object.
-
If the machine strikes an object or starts to vibrate, immediately shut off the machine, wait for all moving parts to stop, remove the battery pack from the machine, and examine the machine for damage.
-
For best performance, install a new Toro blade before the cutting season begins or when necessary.
Cutting Grass
-
Cut only about a third of the grass blade at a time. For improved quality of cut, runtime, and bagging, cut grass at a higher height of cut.
-
Do not cut below 51 mm (2 inches) unless the grass is sparse or it is late fall when grass growth begins to slow down.
-
When cutting grass over 15 cm (6 inches) tall, mow at the highest cutting height setting and walk slower; then mow again at a lower setting for the best lawn appearance. If the grass is too long, the machine may plug and cause the motor to stall.
-
Wet grass and leaves tend to clump on the yard and can cause the machine to plug or the motor to stall. Avoid mowing in wet conditions.
-
Be aware of a potential fire hazard in very dry conditions, follow all local fire warnings, and keep the machine free of dry grass and leaf debris.
-
Alternate the mowing direction. This helps disperse the clippings over the lawn for even fertilization.
-
If the finished lawn appearance is unsatisfactory, try 1 or more of the following:
-
Replace the blade or have it sharpened.
-
Walk at a slower pace while mowing.
-
Raise the cutting height on your machine.
-
Cut the grass more frequently.
-
Overlap cutting swaths instead of cutting a full swath with each pass.
-
Cutting Leaves
-
After cutting the lawn, ensure that half of the lawn shows through the cut leaf cover. You may need to make more than a single pass over the leaves.
-
If there are more than 13 cm (5 inches) of leaves on the lawn, mow at a higher cutting height and then again at the desired cutting height.
-
Slow down your mowing speed if the machine does not cut the leaves finely enough.
After Operation
Charging the Battery Pack
Important: The battery pack is not fully charged when you purchase it. Before using the tool for the first time, place the battery pack in the charger and charge it until the LED display indicates the battery pack is fully charged. Read all safety precautions.
Important: Charge the battery pack only in temperatures that are within the appropriate range; refer to Specifications.
Note: At any time, press the battery-charge-indicator button on the battery pack to display the current charge (LED indicators).
-
Ensure that the vents and charging terminals on the battery pack and charger are clear of any dust and debris.
-
Line up the cavity in the battery pack (Figure 17) with the tongue on the charger.
-
Slide the battery pack into the charger until it is fully seated (Figure 17).
-
To remove the battery pack, slide the battery backward out of the charger.
-
Refer to the following table to interpret the LED indicator light on the battery charger.
Indicator light Indicates Off No battery pack inserted Green blinking Battery pack is charging Green Battery pack is charged Red Battery pack and/or battery charger is over or under the appropriate temperature range Red blinking Battery pack charging fault*
*Refer to for more information.
Important: The battery pack can be left on the charger for short periods between uses.If the battery pack will not be used for longer periods, remove the battery pack from the charger; refer to Before storage.
Cleaning Under the Machine
For best results, clean the machine soon after you have completed mowing.
-
Move the machine onto a flat paved surface.
-
Remove the electric-start button and wait for all moving parts to stop before leaving the operating position.
-
Remove the battery pack; refer to Removing the Battery Pack from the Machine.
-
Wash out the area under the rear door where the clippings go from the underside of the machine to the grass bag.
Note: Wash out the area with the bag-on-demand (if equipped) in both the fully forward and fully rearward positions.
-
Start the motor and run it for a few minutes to dry the underside of the machine to prevent it from rusting.
-
Shut off the motor, remove the electric-start button, and store the machine; refer to Before storage.
Cleaning Under the Machine in the Vertical-Stow Position
-
Set the machine in the vertical-stow position; refer to Storing the Machine in the Vertical-Stow Position.
-
Wash out the clippings from under the machine.
Folding the Handle
Warning
Folding or unfolding the handle improperly can damage the cables, causing an unsafe operating condition.
-
Do not damage the cable(s) when folding or unfolding the handle.
-
Ensure that the cable(s) are routed to the outside of the handle.
-
If a cable is damaged, contact an Authorized Service Dealer.
-
Hold the handle while disengaging the handle locks to avoid pinching your hands.
-
Disengage the handle locks until you can move the upper handle freely (A of Figure 18)
-
Fold the handle forward to the fully forward position (B of Figure 18).
Important: Route the cables to the outside of the handle locks as you fold the handle.
-
To unfold the handle, refer to Unfolding the Handle.
Storing the Machine in the Vertical-Stow Position
You can store your machine in the vertical position to minimize storage space.
Danger
The vertical-stow position exposes the bottom of the machine.
-
Remove the battery pack and the electric-start button before moving the machine into the vertical-stow position.
-
Do not transport the machine in the vertical-stow position.
-
Do not attempt to start the machine in the vertical-stow position.
-
Remove the electric-start button and battery from the machine.
-
Ensure that the cutting-height setting on the machine is 92 mm (3-5/8 inches) or lower; if it is not, lower it; refer to Adjusting the Cutting Height.
-
Disengage the handle locks (Figure 19).
-
Fold the handle fully forward; refer to Folding the Handle.
Important: Route the cables to the outside of the handle knobs as you fold the handle.
-
Engage the handle locks.
-
Lift the front of the machine by the handle and move it into a storage space (Figure 20).
Maintenance
Remove the electric-start button and battery pack from the machine before maintaining or cleaning the machine.
Always shut off the machine, wait for all moving parts to stop, and allow the machine to cool before adjusting, servicing, cleaning, or storing it.
Use only the manufacturer’s recommended replacement parts and accessories.
Inspect and maintain the machine regularly. Have the machine repaired only by an Authorized Service Dealer.
Note: Determine the left and right sides of the machine from the normal operating position.
Lubricating the Machine
You do not need to lubricate the machine; all the bearings have been lubricated at the factory for the life of the machine.
Replacing the Blade
| Maintenance Service Interval | Maintenance Procedure |
|---|---|
| Yearly |
|
Important: You will need a torque wrench to install the blade properly. If you do not have a torque wrench or are uncomfortable performing this procedure, contact an Authorized Service Dealer.
If the blade is damaged or cracked, replace it immediately. If the blade edge is dull or nicked, have it sharpened and balanced, or replace it.
Warning
When servicing the blade, the blade can still move even though the power source is off. The blade is sharp; contacting the blade can result in serious personal injury.
-
Keep your hands and feet away from a moving blade.
-
Wear gloves when servicing the blade.
-
Remove the electric-start button and battery pack from the machine.
-
Use a block of wood to hold the blade steady (Figure 21).
-
Remove the blade, saving all mounting hardware (Figure 21).
-
Install the new blade and all mounting hardware (Figure 22).
Important: Position the curved ends of the blade facing up toward the machine housing.
-
Use a torque wrench to tighten the blade bolt to 68 N∙m (50 ft-lb).
Adjusting the Self-Propel Drive
Whenever you install a new self-propel cable or if the self-propel drive is out of adjustment, adjust the self-propel drive.
-
Turn the adjustment nut counterclockwise to loosen the cable adjustment (Figure 23).
-
Adjust the tension on the cable (Figure 23) by pulling it back or pushing it forward and holding that position.
Note: Push the cable toward the motor to increase the traction; pull the cable away from the motor to decrease the traction.
-
Turn the adjustment nut clockwise to tighten the cable adjustment.
Note: Tighten the nut firmly with a socket or wrench.
Preparing the Battery Pack for Recycling
Important: Upon removal, cover the terminals of the battery pack with heavy-duty adhesive tape. Do not attempt to destroy or disassemble the battery pack or remove any of its components.
Contact your local municipality or your authorized Authorized Service Dealer or distributor for more information on how to responsibly recycle the battery.
 |
Lithium-ion battery packs labeled with the Call2Recycle seal can be recycled at any participating retailer or battery recycling facility in the Call2Recycle program (US and Canada only). To locate a participating retailer or facility closest to you, please call 1-800-822-8837 or visit www.call2recycle.org. If you cannot locate a participating retailer or facility nearby, or if your rechargeable battery is not labeled with the Call2Recycle seal, please contact your local municipality for more information on how to responsibly recycle the battery. If you are located outside of the US and Canada, please contact your Authorized Service Dealer or distributor. |
Storage
Important: Store the machine, battery pack, and charger only in temperatures that are within the appropriate range; refer to Specifications.
Important: If you are storing the battery pack for the off-season, charge it until 2 or 3 LED indicators turn green on the battery. Do not store a fully charged or fully depleted battery. When you are ready to use the machine again, charge the battery pack until the left indicator light turns green on the charger or all 4 LED indicators turn green on the battery.
-
Disconnect the product from the power supply (i.e., remove the battery pack and electric-start button) and check for damage after use.
-
Do not store the machine or charger with the battery pack installed.
-
Clean all foreign material from the product.
-
When not in use, store the machine, electric-start button, battery pack, and battery charger out of the reach of children.
-
Keep the machine, battery pack, and battery charger away from corrosive agents, such as garden chemicals and de-icing salts.
-
To reduce the risk of serious personal injury, do not store the battery pack outside or in vehicles.
-
Store the machine, battery pack, and battery charger in an enclosed clean, dry area.
Troubleshooting
Perform only the steps described in these instructions. All further inspection, maintenance, and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself.
| Problem | Possible Cause | Corrective Action |
|---|---|---|
| The machine does not start. |
|
|
| The machine does not run or does not run continuously. |
|
|
| The machine does not reach full power. |
|
|
| The battery pack loses charge quickly. |
|
|
| The battery charger is not working. |
|
|
| The machine does not self-propel. |
|
|
| The LED indicator light on the battery charger is red. |
|
|
| The LED indicator light on the battery charger is blinking red. |
|
|
| The machine is producing a beeping sound. |
|
|
| The quality of cut is decreased or unsatisfactory. |
|
|
| The bagging is decreased or unsatisfactory. |
|
|
| The machine is cutting unevenly. |
|
|
| The machine is vibrating. |
|
|
