Safety

The TransPro trailer is intended for use with walk-behind Greensmaster^® machines only. Towing incompatible products can result in damage to the trailer and/or injury to the operator.
Use only a vehicle with the proper tow rating. The TransPro 80 trailer and a greens mower weighs approximately 525 lb (238 kg). Ensure that the tow vehicle has adequate braking and handling capacity by checking the recommendations of the vehicle manufacturer.
Ensure that the trailer is properly connected to the tow vehicle before loading or unloading the greens mowers to prevent sudden unintended tongue movement or flip-up. The trailer tongue should be parallel to the ground when you align it with the tow vehicle hitch.
The trailer adds extra towing weight to the vehicle. Drive the vehicle safely.
- Do not drive the machine on highways or public roads.
- Always slow the tow vehicle when approaching and while making a turn.
- Always slow the tow vehicle when driving in unfamiliar areas or over rough terrain.
- Always slow the tow vehicle when changing the direction of travel or preparing to stop.
- Always slow the tow vehicle when turning or driving on slopes.
- Do not make sudden or sharp turns. Do not suddenly change direction of travel on an incline, ramp, grade, slope, or similar surface.
- The maximum towing speed is 15 mph (24 km/h). Always adjust the tow-vehicle speed to allow for existing ground conditions, such as wet slick surfaces, loose sand or gravel and/or low visibility conditions, such as dim or bright lighting, fog, mist, or rain.
- Be especially careful when driving a heavily loaded vehicle down an incline or slope. Drive the vehicle up and down the face of the slopes, inclines, or grades whenever possible. Do not drive across the face of a slope if at all possible. There is a risk of upsetting the vehicle, which can result in serious injury or death.
Before backing up, look behind you and ensure that it is clear of people and objects. Back up slowly and watch the trailer movement closely.
Use extreme caution and slow speed when backing up the trailer and tow vehicle.
Watch out for traffic when near or crossing roads. Always yield the right of way to pedestrians and other vehicles.
If the trailer begins to vibrate abnormally, stop the tow vehicle immediately. Shut off the tow-vehicle engine. Repair all damage before towing.
Before servicing or making any adjustments to the trailer, do the following:
- Stop the tow vehicle and engage the parking brake.
- Shut off the tow-vehicle engine and remove the key.
While the trailer is disconnected from the tow vehicle:
- Store the trailer on level ground.
- Chock the wheels to prevent the trailer from moving.
Keep all fasteners tightened securely. Replace any parts removed when servicing or making adjustments.

Safety and Instructional Decals

Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing.

106-4669

Warning—do not carry passengers; do not tow down slopes greater than 15°; do not exceed 24 km/h (15 mph); drive in a straight line when moving fast; adjust your speed according to ground conditions.

133-8061

140-5280

The trailer tires should be inflated to 0.35 bar (5 psi).
Read the Operator’s Manual.
Torque the trailer wheel nuts to 108.5 N∙m (80 ft-lb).

140-5281

Warning—do not carry passengers on the trailer.

Installation

Assembling the Trailer

Parts needed for this procedure:

Tongue assembly	1
Frame assembly	1
Clevis pin	1
Washer (5/8 inch)	2
Cotter pin	2
Bolt (3/8 x 3-1/2 inches)	4
Washer (3/8 inch)	8
Nut (3/8 inch)	4
Wheel axle hub	2
Wheel	2

Installing the Tongue Assembly to the Frame

Use a clevis pin, 2 washers (5/8 inch), and 2 cotter pins to secure the tongue assembly to the frame assembly (Figure 1).

Figure 1

Cotter pin
Clevis pin
Washer
Tongue assembly

Installing the Wheel Hubs and the Rail Ramp Kit or the Flat Ramp Kit

Refer to Figure 2 to determine the frame mounting holes that you should use to fit the width of your greensmower.

Important: If your Greensmaster machine has a groomer attached, it will be mounted differently than above; refer to the following list:
- Greensmaster 1000/2000 or 2100 with groomer: The left side should be set to position #3 and the right side should be set to #1.
- Greensmaster 1800/eFlex 1800 with groomer: The left side should be set to position #2 and the right side should be set to #3.
Figure 2
1. Greensmaster 1026, e1026, 1600, 2600, 1000 with groomer, and 2000 machines with groomer
2. Greensmaster 1018, Flex 1018, 800, Flex 18, Flex 1800, 1820, and eFlex 1800 and 1820 machines
3. Greensmaster 1021, e1021, Flex 1021, eFlex 1021, 1000, Flex 21, 2000, Flex 2100, 2120, and eFlex 2100 and 2120 machines
Use 4 bolts (3/8 x 3-1/2 inches), 4 nuts (3/8 inch), and 8 washers (3/8 inch) to secure the wheel hubs and the Rail Ramp Kit or Flat Ramp Kit to the frame (Figure 3).
Figure 3

Rail Ramp Kit shown
1. Rail Ramp Kit
2. Nut (3/8 inch)
3. Washer (3/8 inch)
4. Wheel hub
5. Bolt (3/8 x 3-1/2 inches)

Installing the Wheels

Mount a wheel assembly to each axle hub with 4 lug nuts (Figure 4).
Figure 4
1. Wheel-hub axle
2. Wheel
Torque the lug nuts as specified in Checking the Torque of the Wheel Lug Nuts.
Deflate the tires to the specification listed in Checking the Tire Air Pressure.

Operation

Securing the Trailer to the Tow Vehicle

Lift up the tongue handle (Figure 5).

Note: Lifting the handle retracts the slide assembly.
Figure 5
1. Tongue handle
2. Tongue pin
3. Slide assembly
Align the tongue pin with the tow-vehicle hitch (Figure 6).
Figure 6
1. Tongue pin
2. Tow-vehicle hitch
Release the tongue handle (Figure 6) to secure the trailer to the tow-vehicle hitch.

Ensure that the slide assembly is centered below the tongue pin.

Loading the Trailer

Preparing the Load the Trailer

Chock the trailer wheels.
While maintaining control of the trailer bed and holding onto the handle, press down on the latch assembly and the lift handle (Figure 7). Lower the trailer bed to the ground.
Figure 7
1. Latch assembly
2. Handle
Remove the grass baskets from the greens mower.

Note: You can store the grass baskets in the tow vehicle.
Refer to the appropriate instruction for an equipped ramp or rail kit as follows:
- Rail Kit: Install the rail wheels onto the hex shafts (Figure 8).

  Note: The rail-wheel clip slots are facing outwards for all walk-behind Greensmaster machines.
  Figure 8
  1. Hex shaft
  2. Clip
  3. Rail wheel
- Wheel Kit: Install the transport wheels onto the hex shafts; refer to the transport-wheel installation section in your traction unit Operator’s Manual.

Loading a Machine on the Trailer

Open the retention rods on both sides of the trailer (Figure 9).

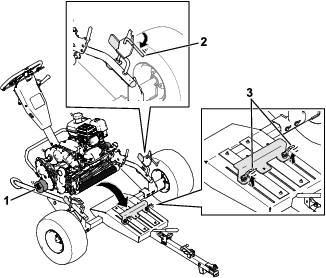

Figure 9

Rail Ramp Kit shown
1. Rail wheel
2. Retention rod—open
3. Roller-mount latches—open
Use the flat ramps or rails to slowly drive the machine onto the trailer until the front roller is seated within the roller mount and the rail or transport wheels are seated within the wheel guides.

Important: When you load a machine onto the trailer for the first time, open the roller-mount latches to allow the roller mount to move. Close the latches to secure the roller mount in place.If you load a machine with different configurations (e.g., a machine with an equipped groomer-drive kit), perform this step to ensure that the machine is properly secured on the trailer.
Shut off the machine and engage the parking brake.
Close the retention rods on both sides of the trailer (Figure 10).

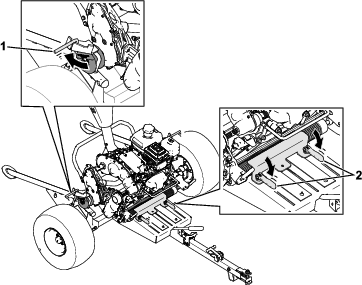

Figure 10

Rail Ramp Kit shown
1. Retention rod—closed
2. Roller-mount latches—closed

Maintenance

Recommended Maintenance Schedule(s)

Maintenance Service Interval	Maintenance Procedure
After the first 10 hours	Check the torque of the wheel lug nuts.
Before each use or daily	Check the tire air pressure.
Yearly	Check the wheel bearings for endplay.

Checking the Tire Air Pressure

Maintenance Service Interval	Maintenance Procedure
Before each use or daily	Check the tire air pressure.

Tire air pressure specification: 34 kPa (5 psi)

Check the air pressure in the tires (Figure 11). Add or remove air as needed to set the air pressure in the tires to the tire air-pressure specification.

Figure 11

Checking the Wheel Bearings for Freeplay

Maintenance Service Interval	Maintenance Procedure
Yearly	Check the wheel bearings for endplay.

Remove any machines that may be stored on the trailer.
Use a jack to raise the trailer and place jack stands under the trailer.
Check each wheel for excessive freeplay (i.e., free movement of the tire and hub assembly).

If you detect excessive freeplay, contact to your authorized Toro distributor.

Checking the Torque of the Wheel Lug Nuts

Maintenance Service Interval	Maintenance Procedure
After the first 10 hours	Check the torque of the wheel lug nuts.

Torque specification: 108 N⋅m (80 ft-lb)

Check the torque of the wheel lug nuts each time you install the wheels and after the first 10 hours of operation.

Torque the wheel lug nuts in the pattern as shown in Figure 12 to the specified torque.

Warning

Failure to maintain proper torque could result in failure or loss of wheel and could result in personal injury.

Torque the wheel lug nuts to the specified torque.

Figure 12

TransPro™ 80 Tow-Behind Trailer

Model No. 04235-Serial No. and Up

Model No. 04236-Serial No. and Up

Model No. 04237-Serial No. and Up
