Rear Weight Kit

Z Master 4000 Riding Mower

Preparing the Machine

Note: Remove any components attached to the rear 2-inch receiver before installing this kit. Use the provided cap to lock out the receiver.
  1. Park the machine on a level surface.
  2. Disengage the blade-control switch (PTO) and move the motion-control levers outward to the Neutral-Lock position.
  3. Engage the parking brake.
  4. Shut off the machine, remove the key, and wait for all moving parts to stop before leaving the operating position.
  5. Allow machine components to cool before performing maintenance.

Installing the Weight Kit

Parts Required
6
Weight plate
1
Plate cover
2
Push nut
4
Bolt
4
Nut

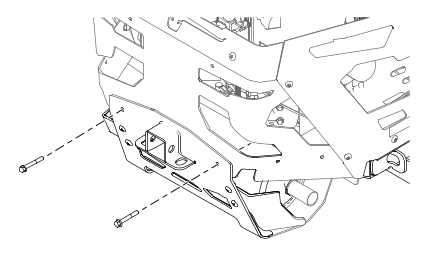

  1. Remove and discard the 2 nuts and 2 bolts on the lower rear engine guard.
    Graphic
    G600473

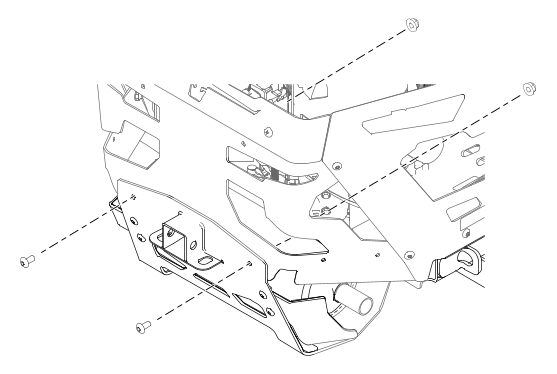

  2. Install the 2 bolts to the rear engine guard.
    Graphic
    G600624

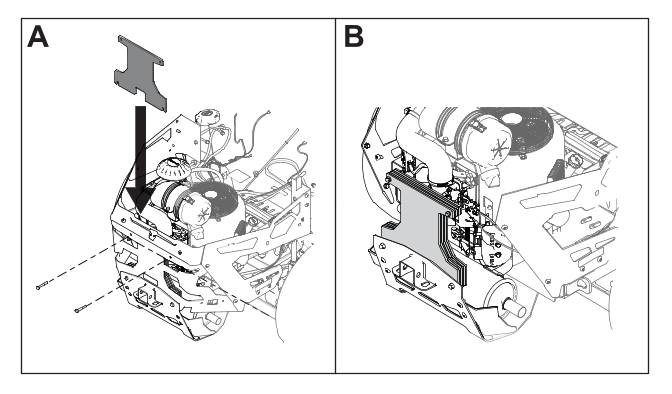

  3. Install each rear weight using the bolts on the bottom of the engine guard to slot-load the weights.
    Graphic
    G600474

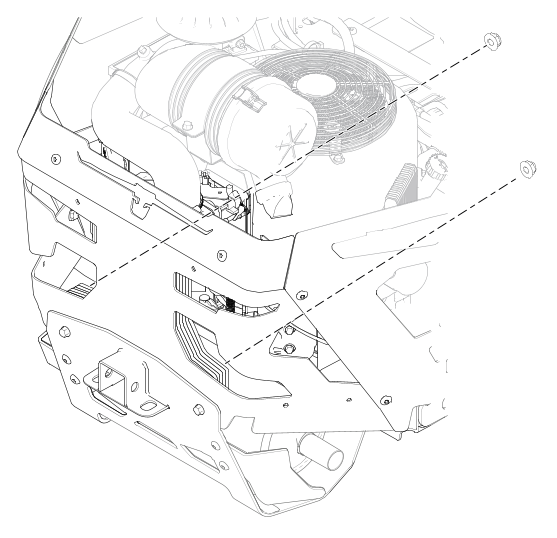

  4. Secure the weights with 2 nuts on the bottom bolts.
    Graphic
    G600638

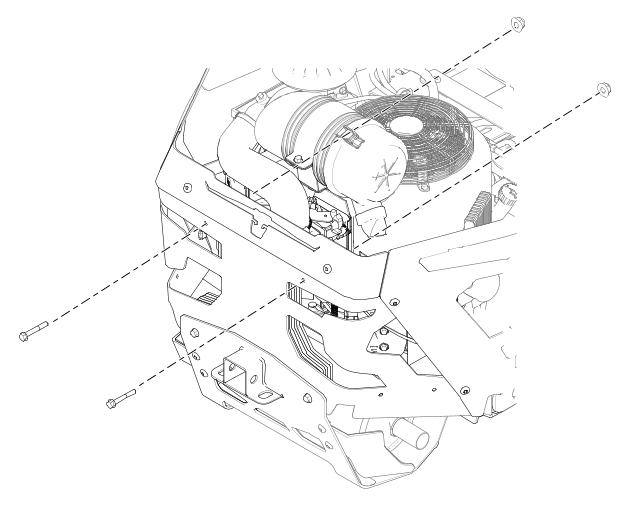

  5. Install 2 bolts through the top of the weights and secure with 2 nuts.
    Graphic
    G600636

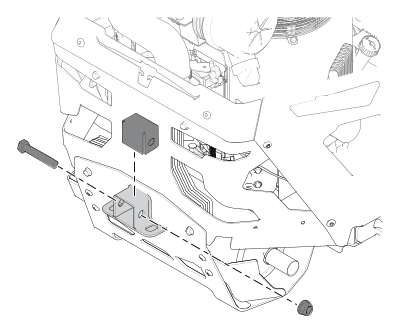

  6. Install the receiver cover.
    Graphic
    G600472
