Seat Belt Alarm Kit

Greensmaster® 3300, 3400, or Groundsmaster® 7200 Traction Unit

Safety

Safety and Instructional Decals

Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing.
Decal Part: 161-8976
Graphic
s_decal161-8976
  1.  Seat belt alarm
Decal Part: 164-7051
Graphic
s_decal164-7051
  1.  Alarm

Preparing the Machine

  1. Park the machine on a level surface.
  2. Engage the parking brake.
  3. Shut off the machine.
  4. Disconnect the battery; refer to your Operator’s Manual.

Replacing the Seat Belt Buckle

Parts Required
1
Seat belt buckle

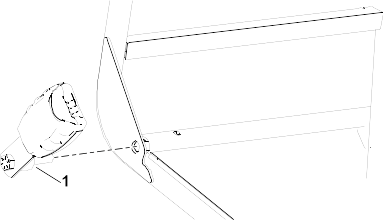

  1. Remove the existing seat belt buckle from the seat base.
  2. Install the new seat belt buckle using the previously removed nut and bolt.
    Graphic
    G607370
  3. Torque the bolt to 55 N∙m (41 ft-lb).

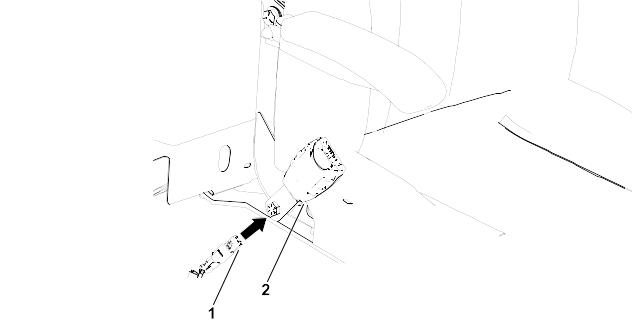

  4. Connect the seat belt buckle to the 2-pin connector .
    Graphic
    G607994

Greensmaster 3300 and 3400

Installing the Alarm

Parts Required
1
Alarm
1
Alarm decal
  1. Install the alarm decal on the top of the alarm in the orientation shown.
    Graphic
    G607151
  2. Install the alarm in the existing hole in the console bracket.
    Graphic
    G609130

Installing the Inertial Measurement Unit (IMU)

Parts Required
1
IMU
1
IMU bracket
2
Bolt (1/4 x 1-1/4 inches)
2
Nut (1/4 inch)
2
Bolt (5/16 x 1 inch)
2
Nut (5/16 inch)

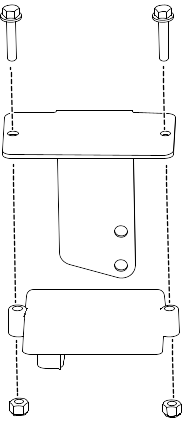

  1. Install the IMU onto the IMU bracket using 2 bolts (1/4 x 1-1/4 inches) and 2 nuts (1/4 inch).
    Graphic
    G609132

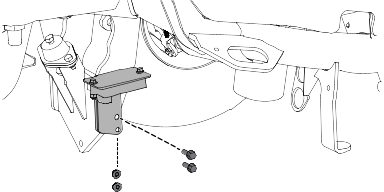

  2. Install the IMU bracket onto the machine using 2 bolts (5/16 x 1 inch) and 2 nuts (5/16 inch).
    Graphic
    G609131

Installing the LED Indicator

Parts Required
1
LED indicator
1
Seat belt decal
  1. Remove the bottom panel of the control console.
  2. Remove the knockout plug to access the hole on the control panel.

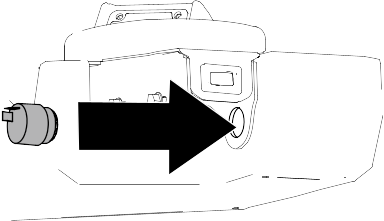

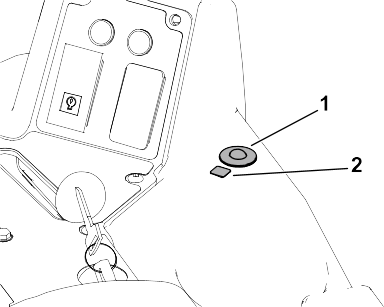

  3. Install the LED indicator .
    Graphic
    G610384
  4. Add the seat belt decal next to the LED indicator.

Routing the Wire Harness

Parts Required
1
Wire harness
6
Cable tie

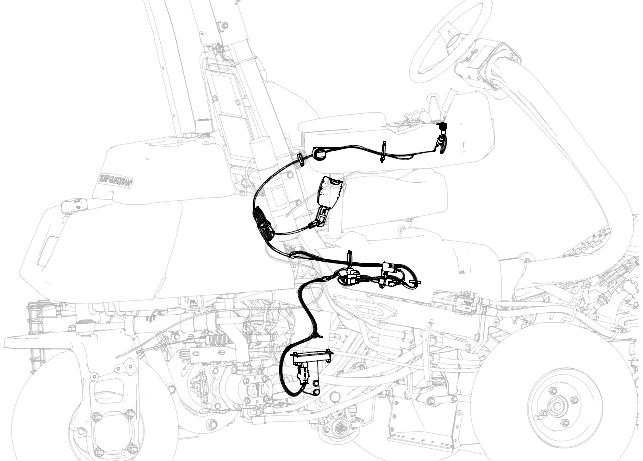

Route the wire harness along the machine wire harness.
  1. Connect the 12-pin connector (P01 K1 TSM1201) on the harness to the IMU connector.
  2. Connect the 6-pin connector (P07 TO EXPANSION PORT) on the harness into the expansion port on the main wire harness.
  3. Connect the 2-pin connector (P05 SEAT BELT SW) on the harness to the seat belt connector.
  4. Connect the 2-pin connector (P02 AUDIO ALARM) on the harness to the alarm connector.
  5. Connect the 2-pin connector (P03 VISUAL ALARM) on the harness to the light connector.
    Graphic
    G609133
  6. Secure the wire harness with cable ties.

Groundsmaster 7200

Preparing the Console

  1. Open the side panel using the latches .
    Graphic
    G610385
  2. Drill the holes for the parts.
    Graphic
    G609401
    1. 3/4 inch
    2. 1-1/10 inches

Installing the Alarm and LED Indicator

Parts Required
1
Alarm
1
Alarm decal
1
LED indicator
1
Seat belt decal

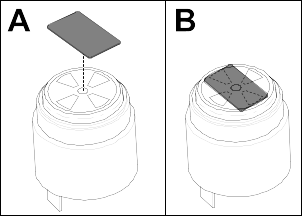

  1. Install the alarm decal on the top of the alarm in the orientation shown.
    Graphic
    G607151

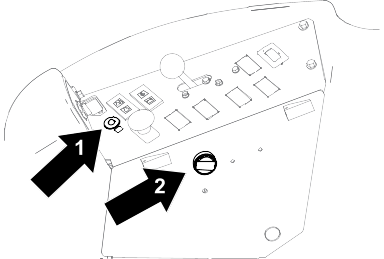

  2. Install the alarm and LED indicator .
    Graphic
    G609401
  3. Add the seat belt decal next to the LED indicator.

Installing the Inertial Measurement Unit (IMU)

Parts Required
1
IMU
1
IMU bracket
2
Bolt (1/4 x 1-1/4 inches)
2
Bolt (1/4 x 3/4 inch)
4
Nut (1/4 inch)

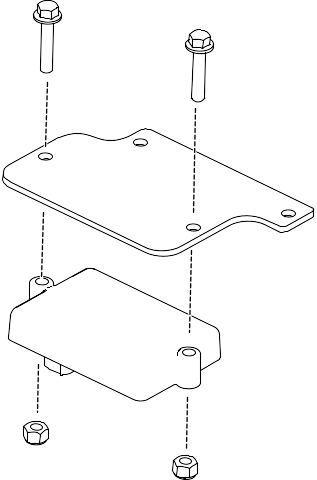

  1. Install the IMU onto the IMU bracket using 2 bolts (1/4 x 1-1/4 inches) and 2 nuts (1/4 inch).
    Graphic
    G609358

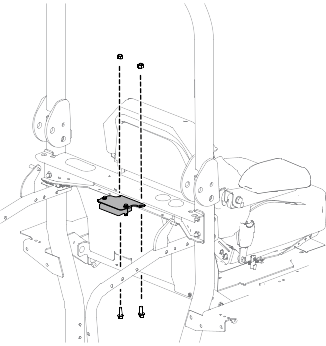

  2. Install the IMU bracket onto the machine using 2 bolts (1/4 x 3/4 inch) and 2 nuts (1/4 inch).
    Graphic
    G610451

Installing the Proximity Sensor

Parts Required
1
Proximity sensor
1
Bracket

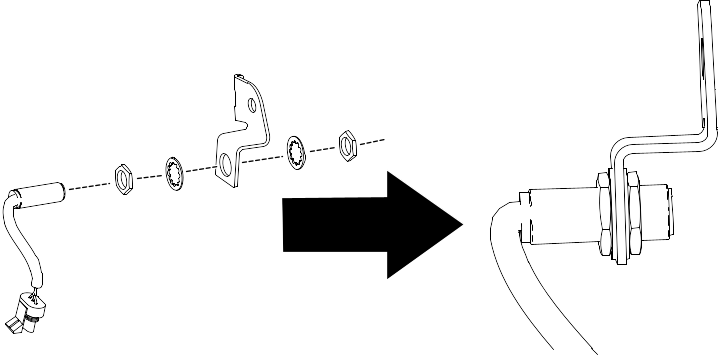

  1. Loosely install the proximity sensor onto the bracket.
    Graphic
    G609357

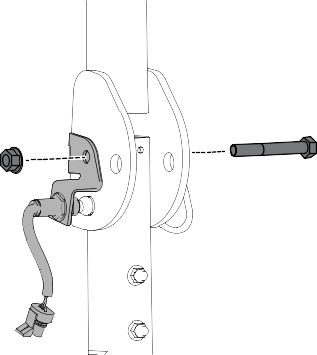

  2. Secure the bracket to the ROPS assembly using the existing hardware.
    Graphic
    G609359
  3. Adjust the sensor so that it is 5 mm or less from the ROPS pin.
  4. Tighten the hardware on the sensor.

Routing the Wire Harness

Parts Required
1
Wire harness
6
Cable tie

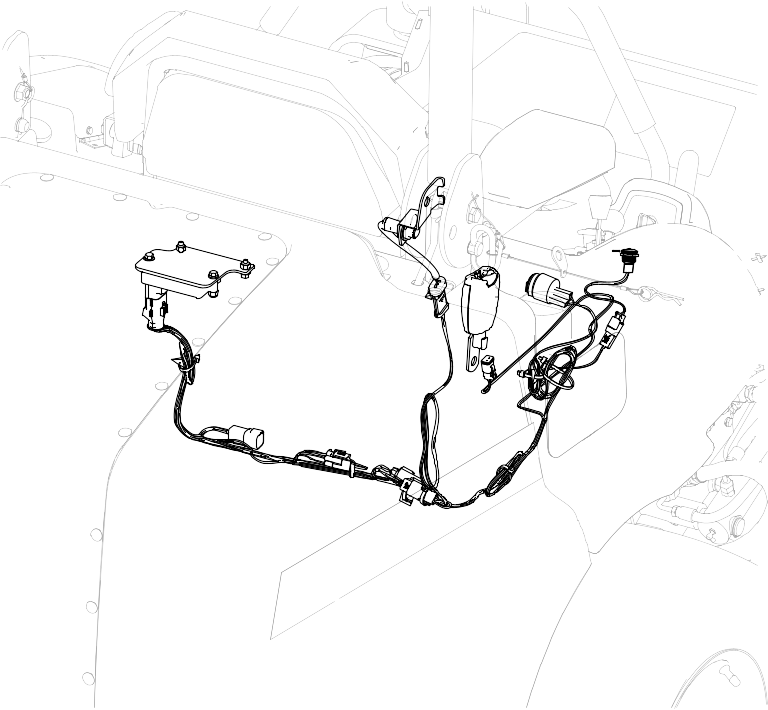

Route the wire harness along the machine wire harness.
  1. Connect the 12-pin connector (P01 K1 TSM1201) on the harness to the IMU connector.
  2. Connect the 6-pin connector (P07 TO EXPANSION PORT) on the harness into the expansion port on the main wire harness.
  3. Connect the 2-pin connector (P05 SEAT BELT SW) on the harness to the seat belt connector.
  4. Connect the 2-pin connector (P02 AUDIO ALARM) on the harness to the alarm connector.
  5. Connect the 3-pin connector (P12 TO ROPS HARNESS) on the harness to the alarm connector.
  6. Connect the 2-pin connector (P03 VISUAL ALARM) on the harness to the light connector.
    Graphic
    G609360
  7. Secure the wire harness with cable ties.

Calibrating the Kit

  1. Move the machine to level ground and ensure that the vehicle is not moved during calibration.
  2. Locate the calibration jumper on the alarm harness located near the IMU.

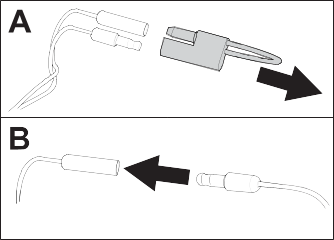

  3. Remove the calibration jumper from the 2 bullet terminals and connect the 2 terminals together.
    Graphic
    G610386
  4. Turn on the machine and allow at least 30 seconds for automatic calibration. Once complete, the LED will illuminate to confirm calibration.
    Note: Ensure that the vehicle is not moved during calibration.
  5. Turn off the machine, disconnect the terminals, and install the calibration jumper onto the 2 bullet terminals.

Testing the Alarm Function

  1. Connect the battery.
  2. Unlatch the seat belt.
  3. Briefly drive the machine in an open area.
  4. Verify that the audible and visual alarms are active.
